Mini-circuits series attenuator
Mini-circuits series attenuator
detailed information

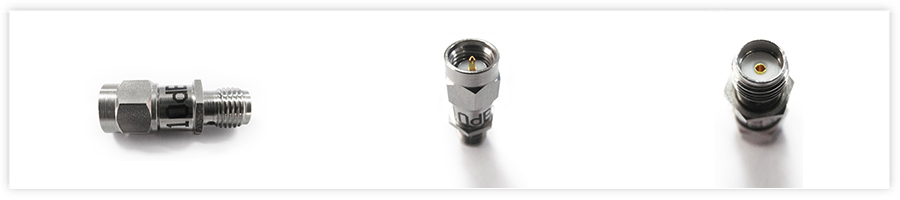

Product Appearance（BW-S10W2-S+）
Mini-circuits attenuator Series Technical Specifications
Model | Frequency （GHz） | Attenuation value（dB） | Attenuation accuracy | Power（W） | Impedance（Ω） | Interface type | Standing wave ratio（VSWR） | Operating temperature（℃） |
BW-S3W2+ | DC-18 | 3 | ±0.40 | 2 | 50 | SMA | ≤1.20@DC-4GHz ≤1.25@4-8GHz ≤1.30@8-12.4GHz | -55~100 |
BW-S10W2+ | DC-18 | 10 | ±0.60 | 2 | 50 | SMA | ≤1.20@DC-4GHz ≤1.25@4-8GHz ≤1.30@8-12.4GHz | -55~100 |
BW-S20W2+ | DC-18 | 20 | -0.5，+0.8 | 2 | 50 | SMA | ≤1.20@DC-4GHz ≤1.25@4-8GHz ≤1.30@8-12.4GHz | -55~100 |
BW-S30W2+ | DC-18 | 30 | ±0.85 | 2 | 50 | SMA | ≤1.20@DC-4GHz ≤1.25@4-8GHz ≤1.30@8-12.4GHz | -55~100 |
BW-S40W2+ | DC-18 | 40 | -1.0，+1.5 | 2 | 50 | SMA | ≤1.20@DC-4GHz ≤1.25@4-8GHz ≤1.30@8-12.4GHz | -55~100 |
