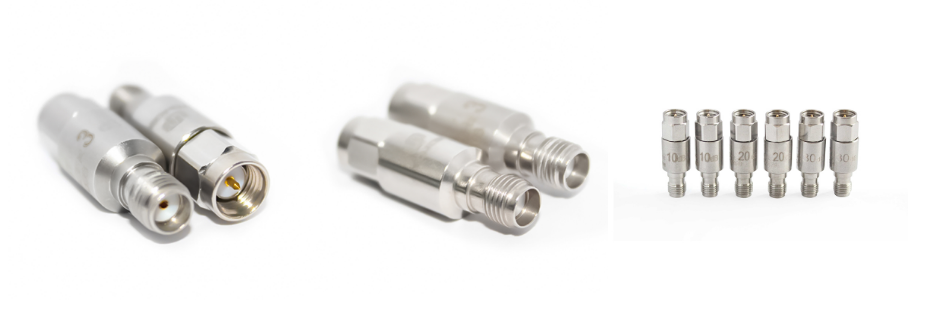

ATT 6G series attenuator

ATT 6G series attenuator


detailed information


ATT(6G) Series Technical Specifications

NumberModel

Frequency

(GHz)

Attenuation

(dB)

Attenuation

accuracy

Standing

wave

ratio

(VSWR)

Impedance(Ω)

Interface

type

Operating

temperature

(℃)

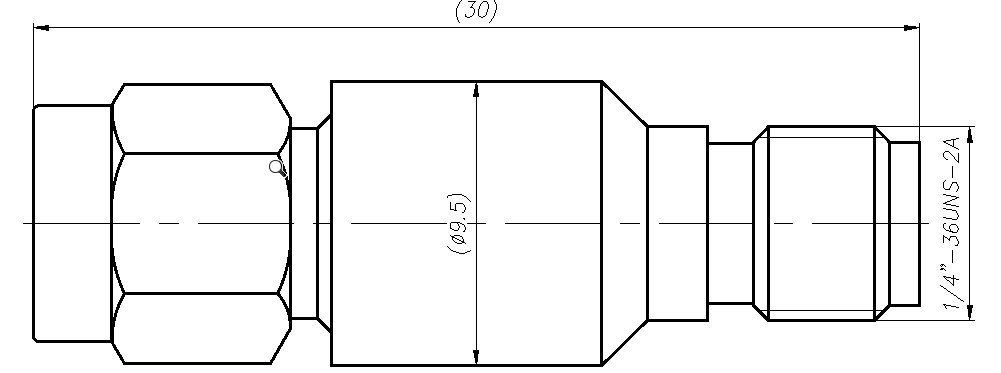

Appearance

dimension

(mm)

60.06.040.0085ATT-3W2F6DC-63
±0.5
≤1.2550±10

SMA male-

SMA female

-10 - +70Φ9.5*30
60.06.040.0089ATT-6W2F6DC-66
±0.5≤1.2550±10

SMA male-

SMA female

-10 - +70Φ9.5*30
60.06.040.0090ATT-10W2F6DC-610
±1≤1.2550±10

SMA male-

SMA female

-10 - +70Φ9.5*30
60.06.040.0088ATT-20W2F6DC-620
±1≤1.2550±10

SMA male-

SMA female

-10 - +70Φ9.5*30
60.06.040.0087ATT-30W2F6DC-630
±1
≤1.2550±10

SMA male-

SMA female

-10 - +70Φ9.5*30
