Mini load ANNE-50+
Mini load ANNE-50+
detailed information

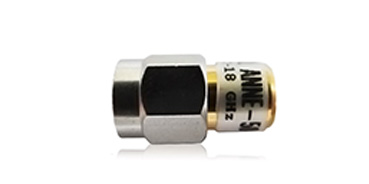

Product Appearance
Product Model ANNE-50+
Product Name Mini load
Product Number 60.06.080.0015
Technical Specifications
Working frequency（GHz） | DC-18 |
Average power（W） | 1 |
Standing wave ratio | ≤1.2 |
Resistance(Ω) | 50 |
Interface type | SMA male |
Working temperature（℃） | -10 - +70 |
Appearance dimension | Φ9.5*30mm |
Standards compliant | MIL-C-39012 |

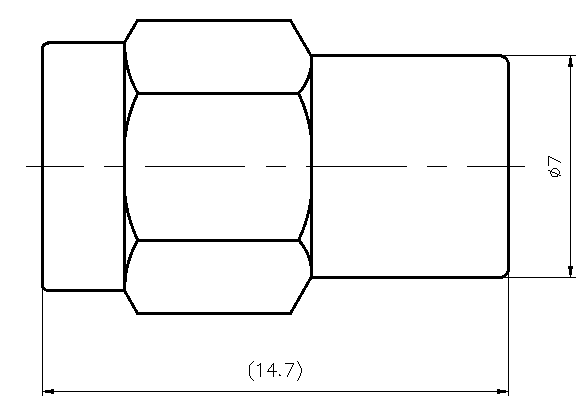

Appearance structure
