MS6055 series shielding box
MS6055 series shielding box
Product Description

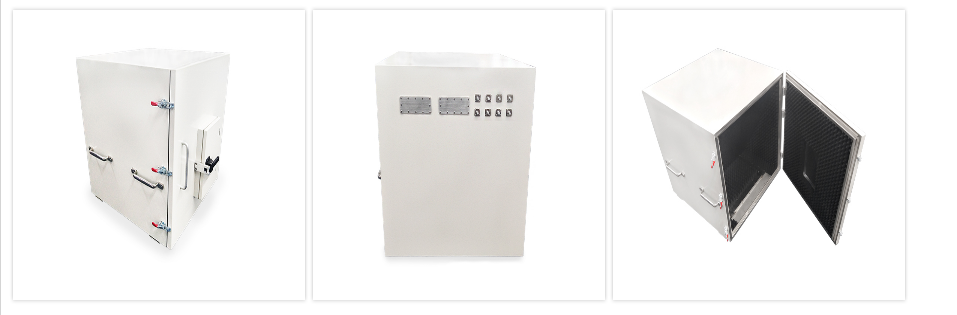

The MS6055 series is an economical manual shielded box. The bottom of the two shielding boxes MS6055-CXL and MS6055-CXL01 are fixed at fixed positions and can be used with automated production lines. It is suitable for building smart phones, WI-FI, Bluetooth. , smart grid equipment, automotive electronics, drones, smart home and other fields of modular, terminal test solution platform.
MS6055 Series Technical Specifications

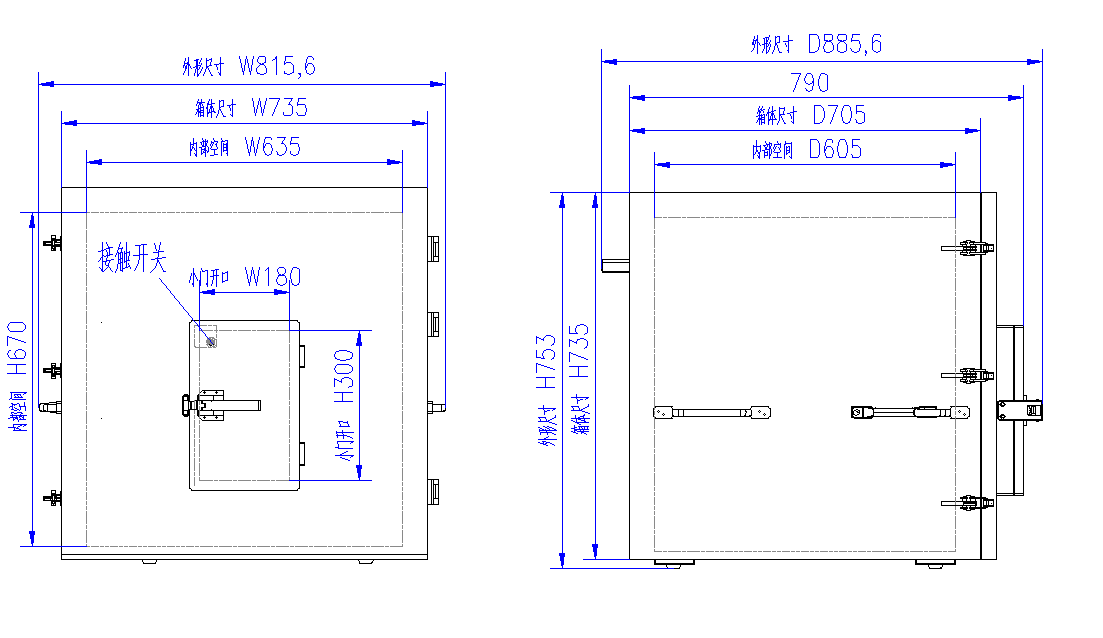

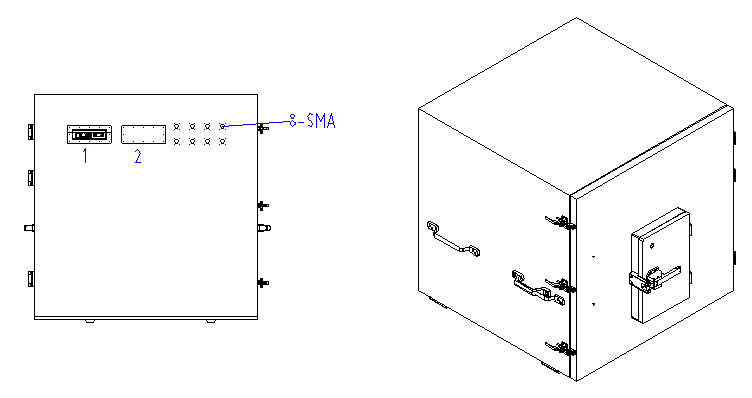

Model/Number | Frequency（GHz） | Shielding effect（dB） | Number of filter openings | Internal and external dimensions（mm） | Weight（kg） |
MS6055-B 60.00.001.0311 | 0.3～0.9 | ≥70@315MHz/@433MHz | 4pcs | Internal：601(W)*550(D)*699(H) External：697(W)*753(D)*743(H) | About 70 |
MS6055-CXL 60.00.001.0313 | 0.3～0.8 | ≥75@433.92MHz | 2pcs | Internal：815.6(W)*753(D)*885.6(H) | About 60 |
MS6055-CXL01 60.00.001.0314 | 0.3~6 | ≥75@433.92MHz | 2pcs | External：815.6(W)*932(D)*885.6(H) | About 60 |
