D2530 Slide-up RF shiled box
D2530 Slide-up RF shiled box
detailed information
1.Product Name：D2530 Slide-up RF shiled box
2.P/N：60.00.111.0060
3. Technical Specification
Technical Specification： | |
Working frequency（GHz） | 0.8-8 GHz |
Shielding effect | ≥70 db @2.4GHz/@5.8GHz |
≥65 db @7.5GHz | |
Interface Type | VGA、DB9、DB25、USB2.0、USB3.0、SMA、RJ45、DC、AC optional |
numbers of filters | USB*2+DB9+SMA*4+DC*2 |
working temperature（°C） | Normal |
Working Dimensions（mm） | 140(W)*120(D)*29.5(H) |
Outer Dimensions（mm） | 250(W)*350(D)*212(H) |
Weight（kg） | 15Kg |
Appearance of color | Gray |

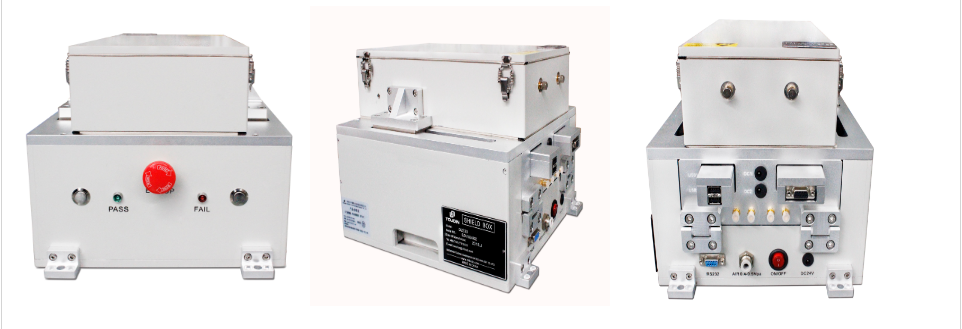

4.Pictures

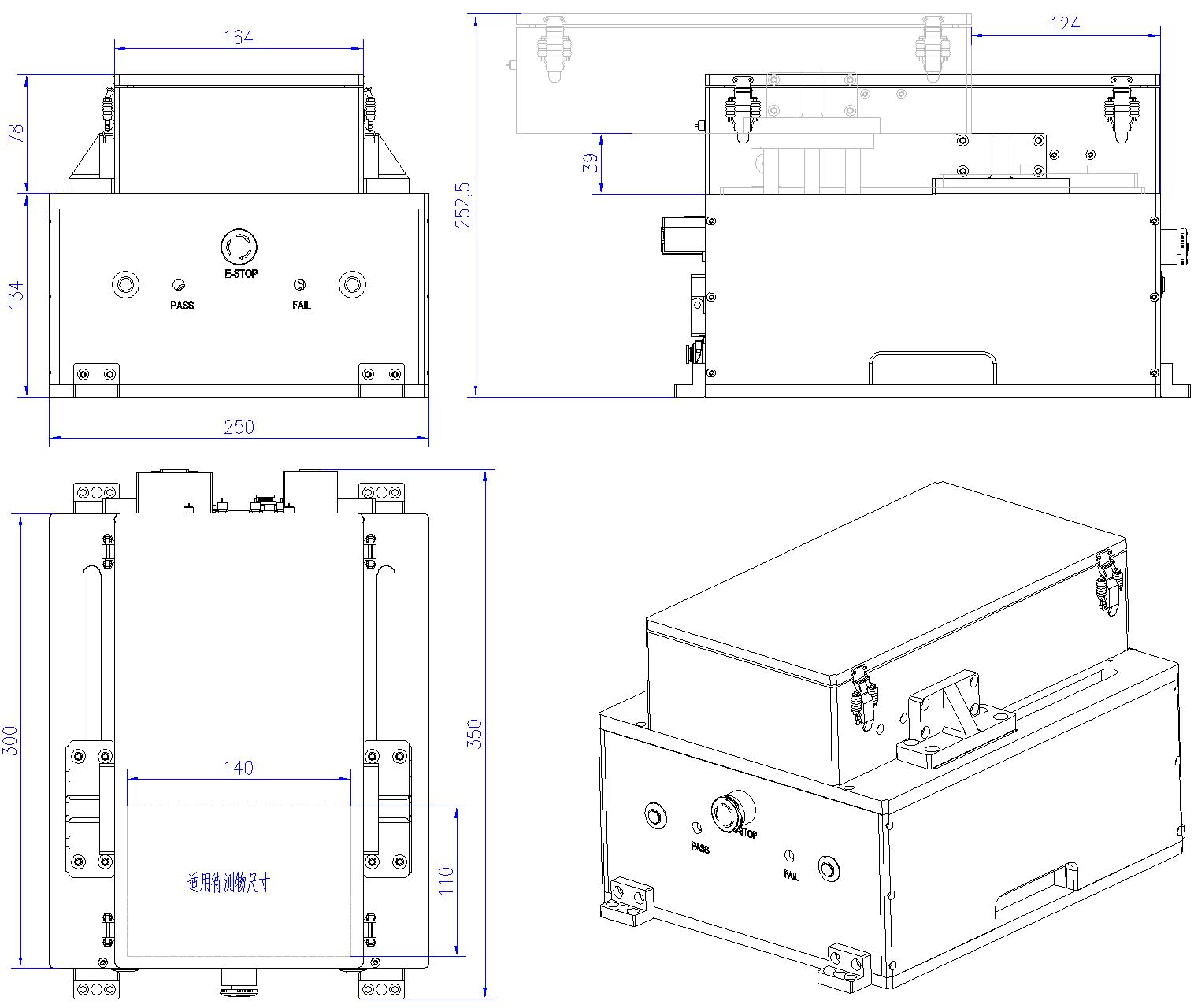

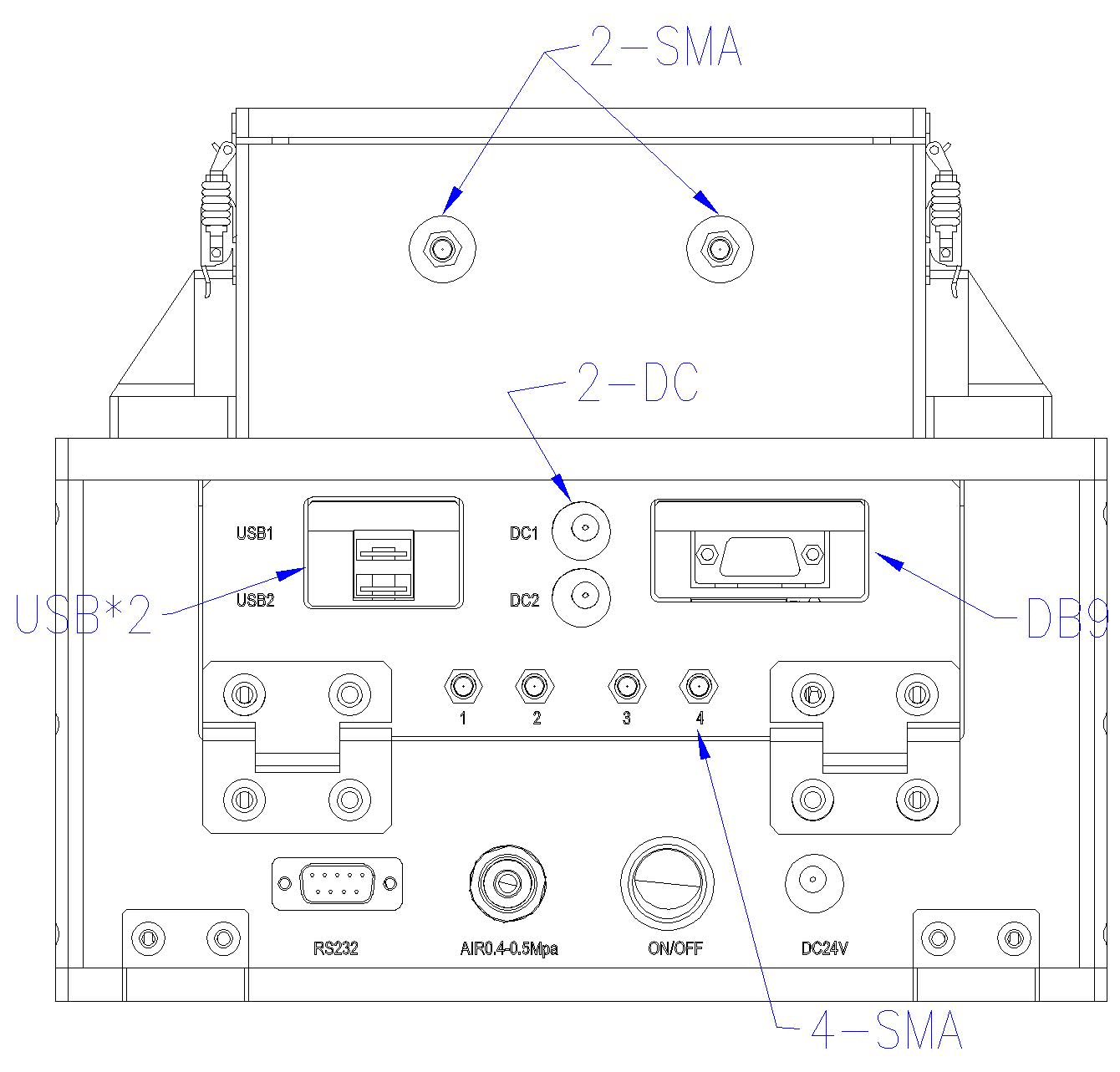

5.Structure
