RF SHIELD BOX

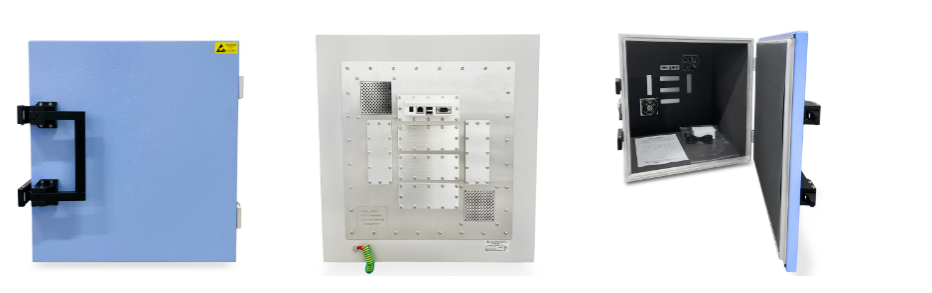

Name:MS5050 Manual RF Shield Box
No:60.00.001.0555
The box is a manual shielding box for terminal development, production and test solution platforms for smart
phones, WI-FI, Bluetooth, smart grid devices, automotive electronics, drones and the Internet of Things.
8
| working frequency(GHz) | 0.8~8GHz |
Shielding effect | ≥75dB @2.4GH |
≥70dB @5.8GHz | |
Interface Type | VGA、DB9、DB25、USB2.0、USB3.0、SMA、RJ45、BNC、RCA、DC、AC |
numbers of filters | 6pcs |
working temperature（°C） | Normal work |

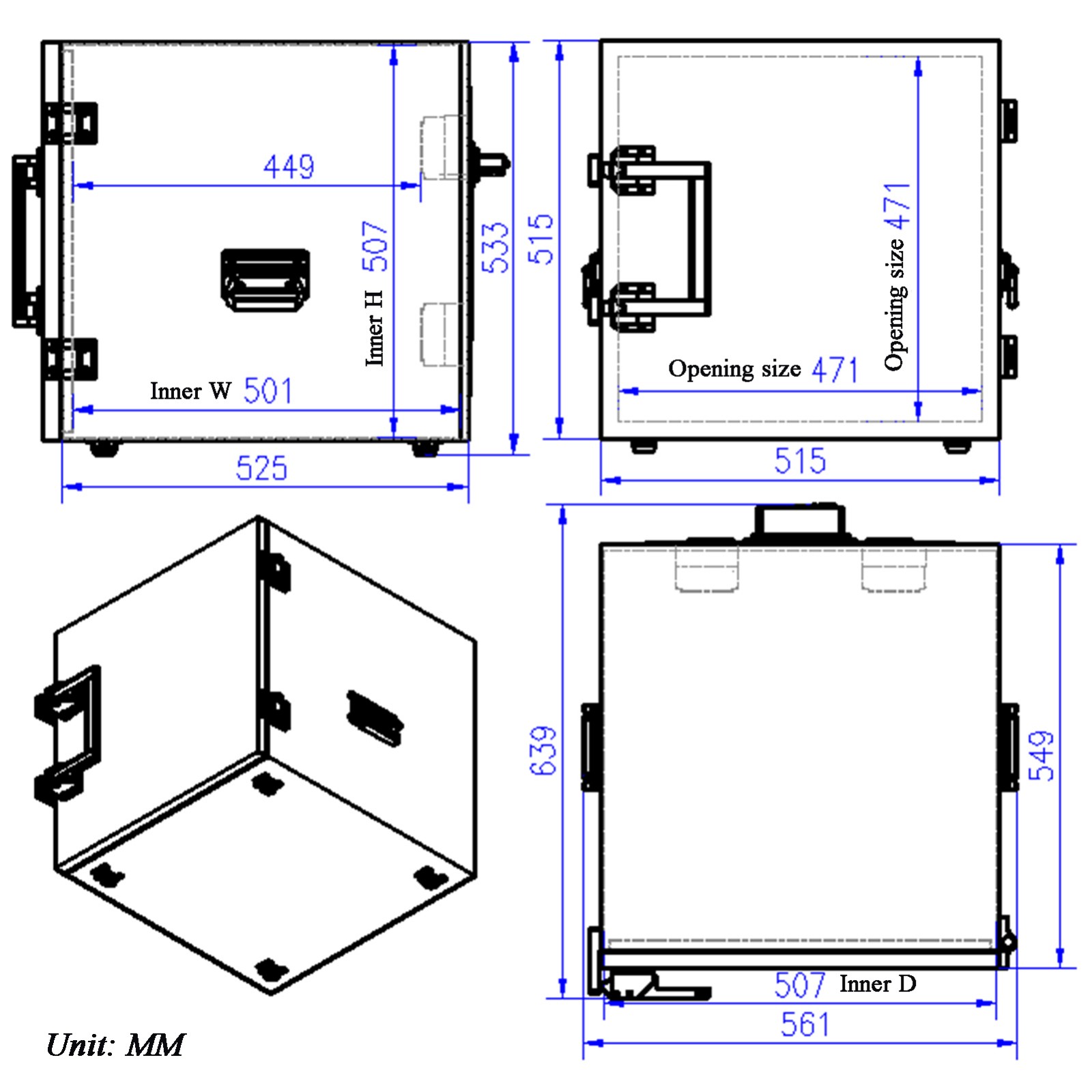

Inside Dimensions（mm） | 507(W)*501(D)*507(H) |
Dimensions（mm） | 561(W)*639(D)*533(H) |
Weight（kg） | 40 |
