ATT 40G series attenuator

ATT 40G series attenuator

detailed information

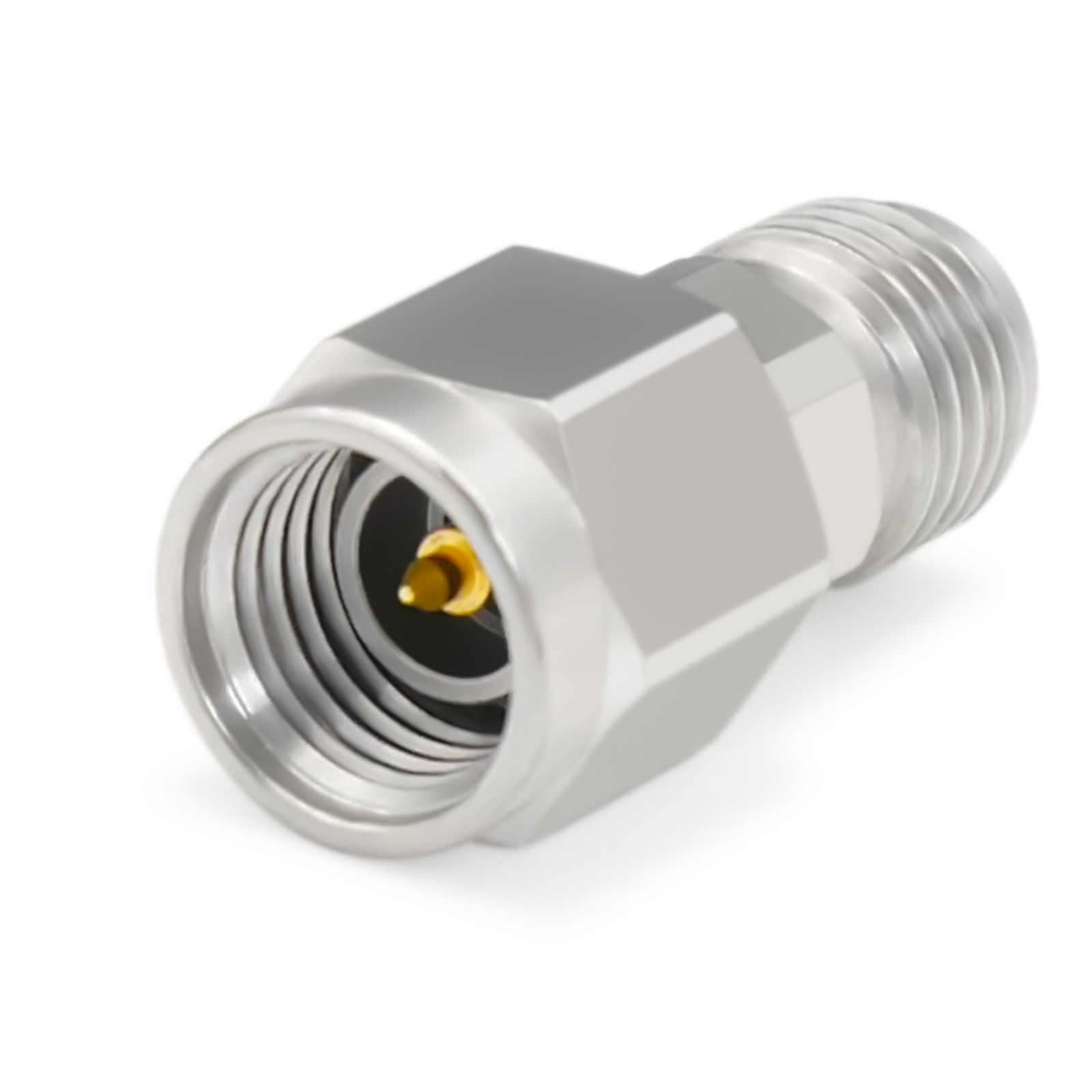

Product Appearance


ATT（40G）Series Technical Specifications

Frequency（GHz）DC-40
Standing  wave ratio（VSWR）≤1. 25
lmpedance(Ω)50
Connectors2.92-JK(male-female)
Power Capacity(W)2W@25°C
Operating Temperature(°C)-55 ~+125 °C
EnclosureStainless Steel Passivation
PinMale: Gold-plated brass 50 micro-inches
Female: Beryllium Bronze Gold 50 micro inches
InsulatorsPEI
Weight(g)5

Attenuation Accruacy(dB)

Part NumberModelAttenuation Accruacy(dB)
60.06.040.02693dB/2W/DC-40G/2.92-JK -0.7/+0.8
60.06.040.02706dB/2W/DC-40G/2.92-JK -0.7/+0.8
60.06.040.027110dB/2W/DC-40G/2.92-JK -0.7/+0.8
60.06.040.027220dB/2W/DC-40G/2.92-JK  -0.8/+1.0
60.06.040.027330dB/2W/DC-40G/2.92-JK  -0.8/+1.0

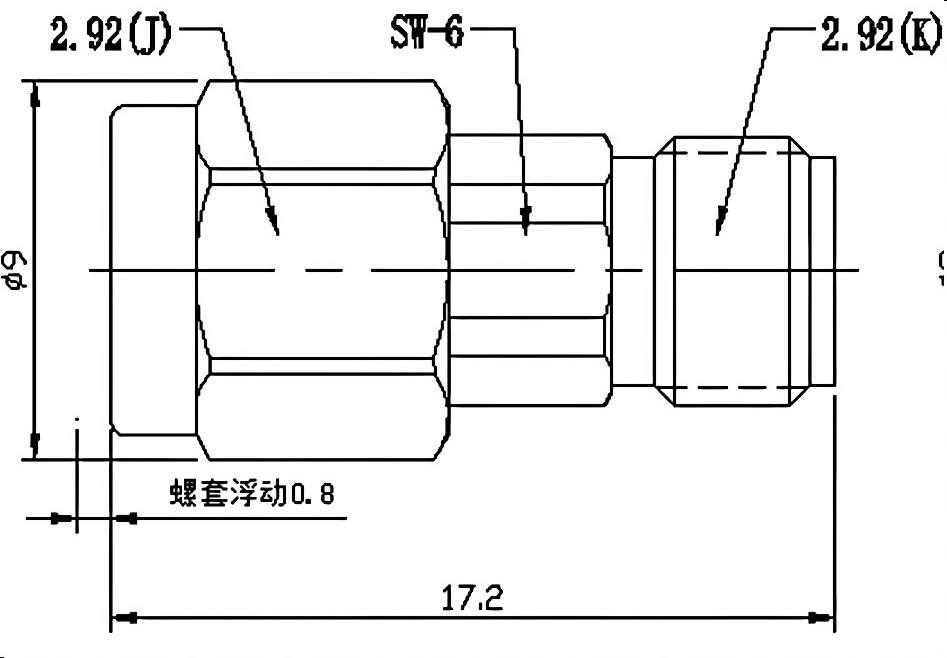

Structure
