Fixed Attenuator

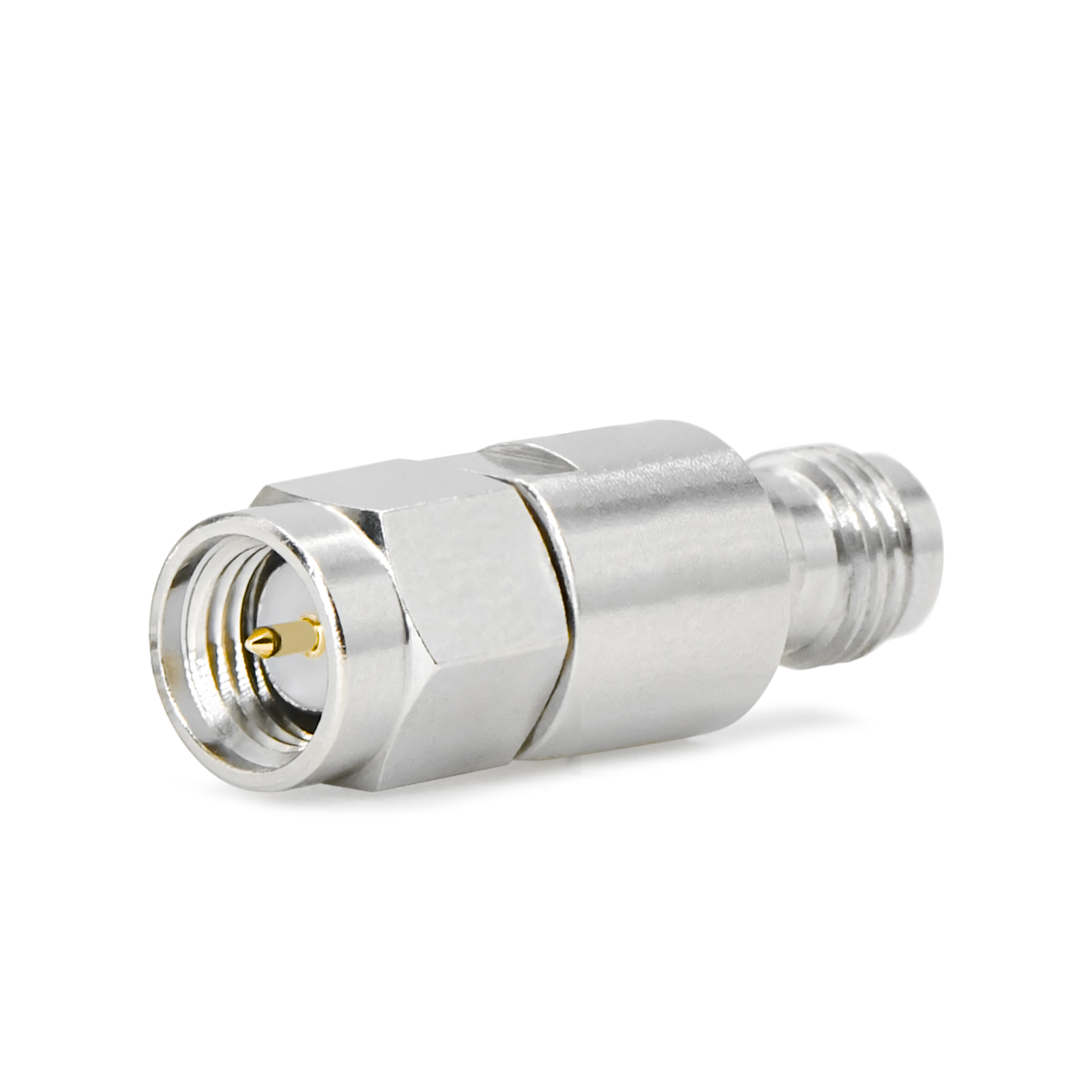

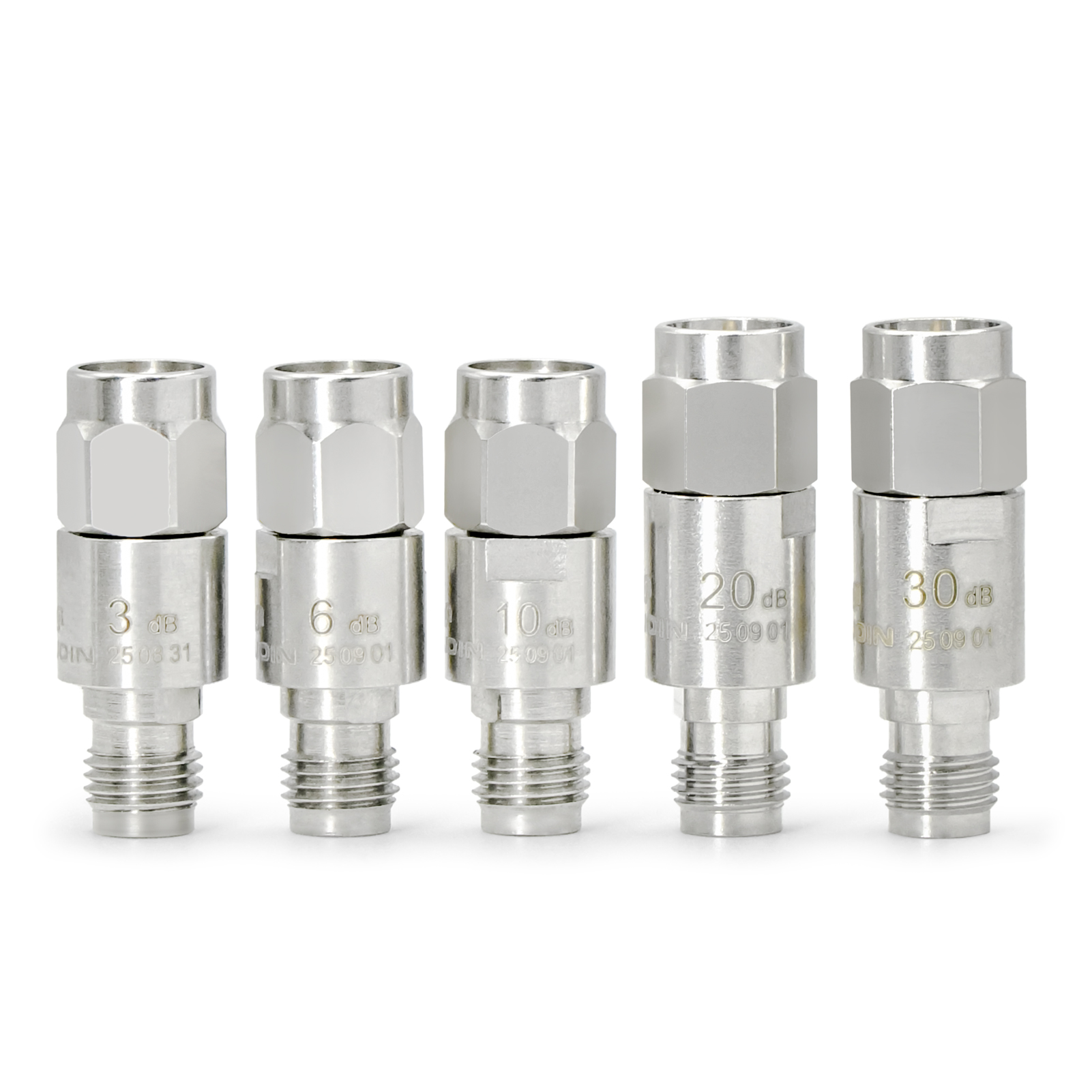

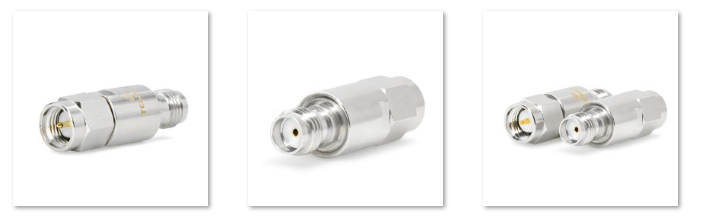

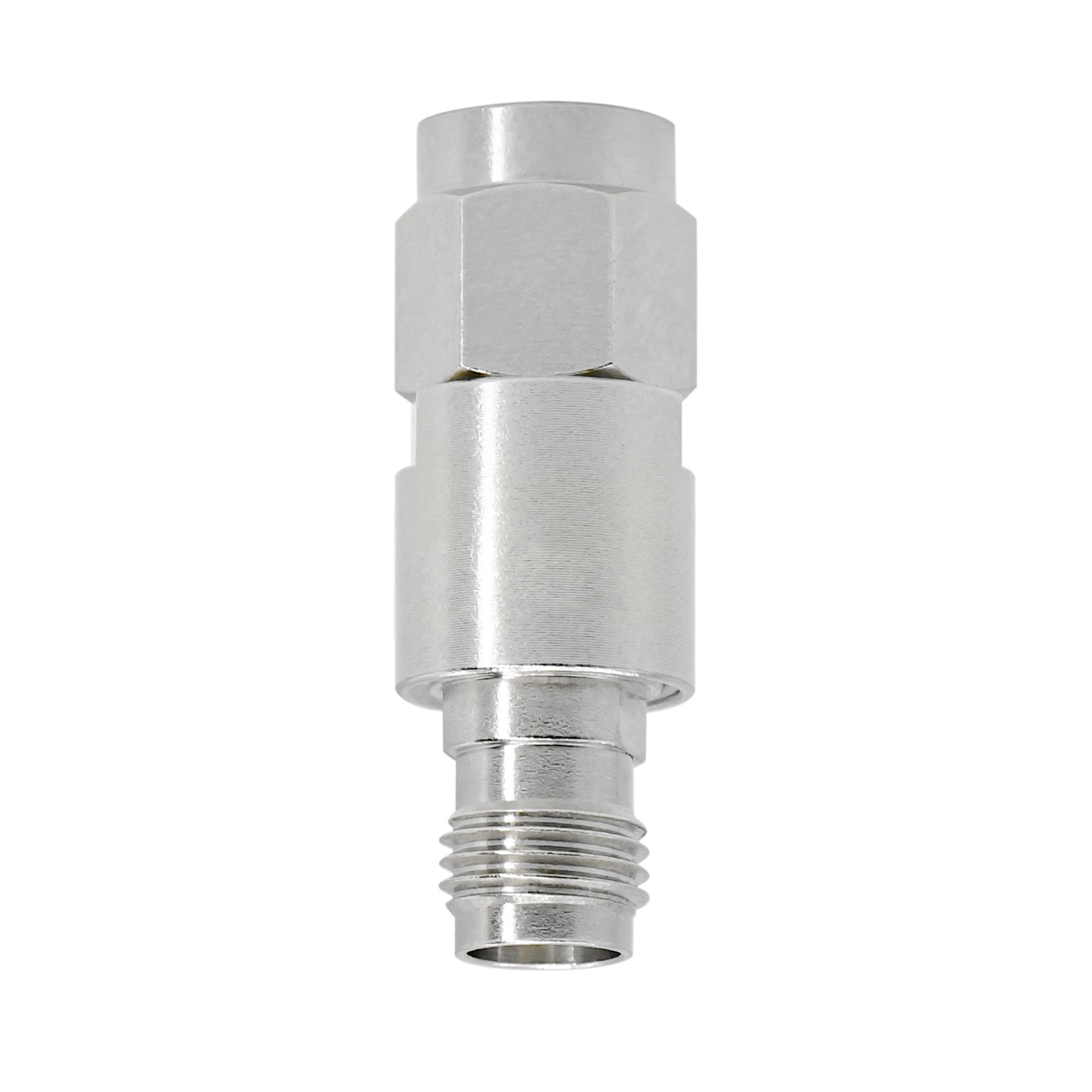

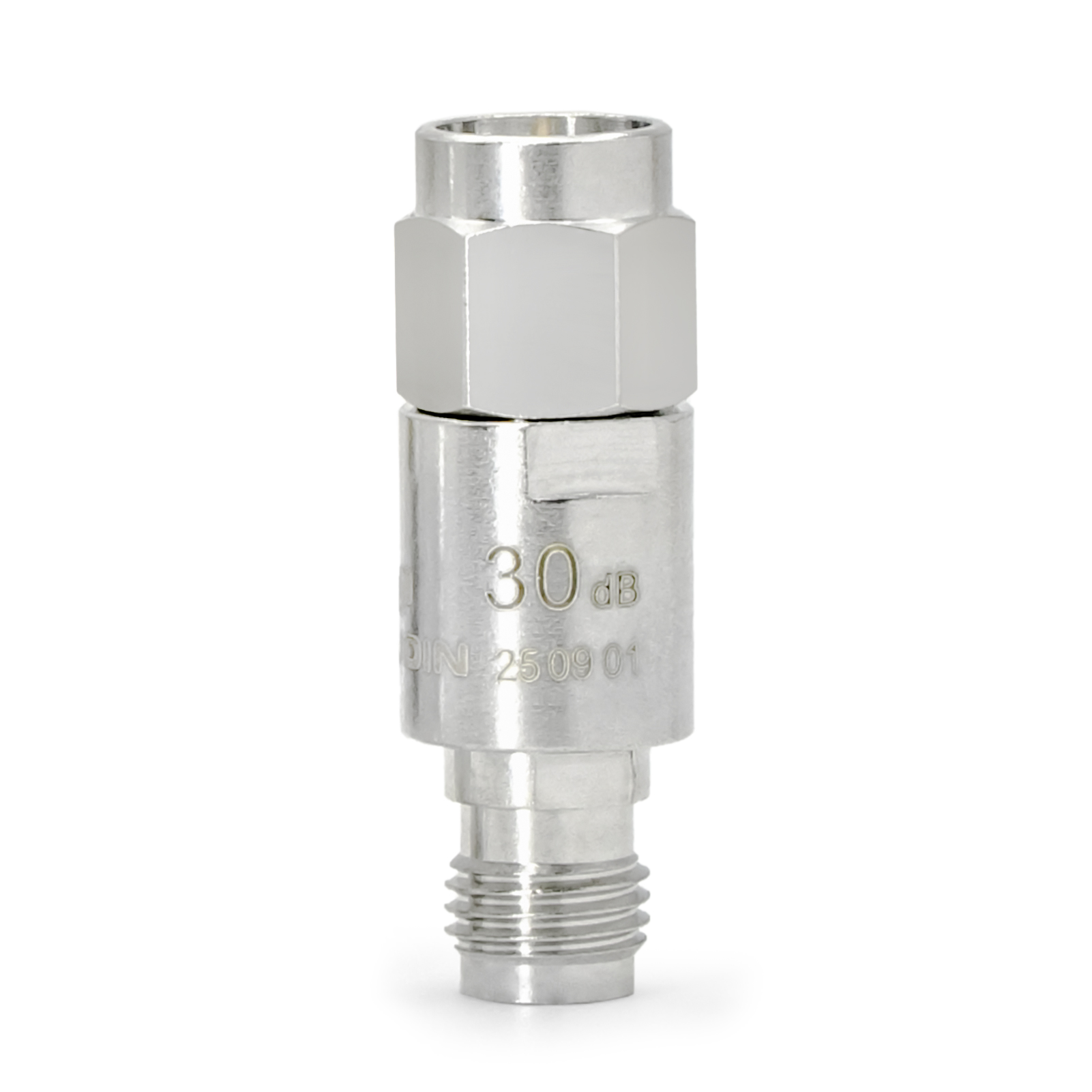

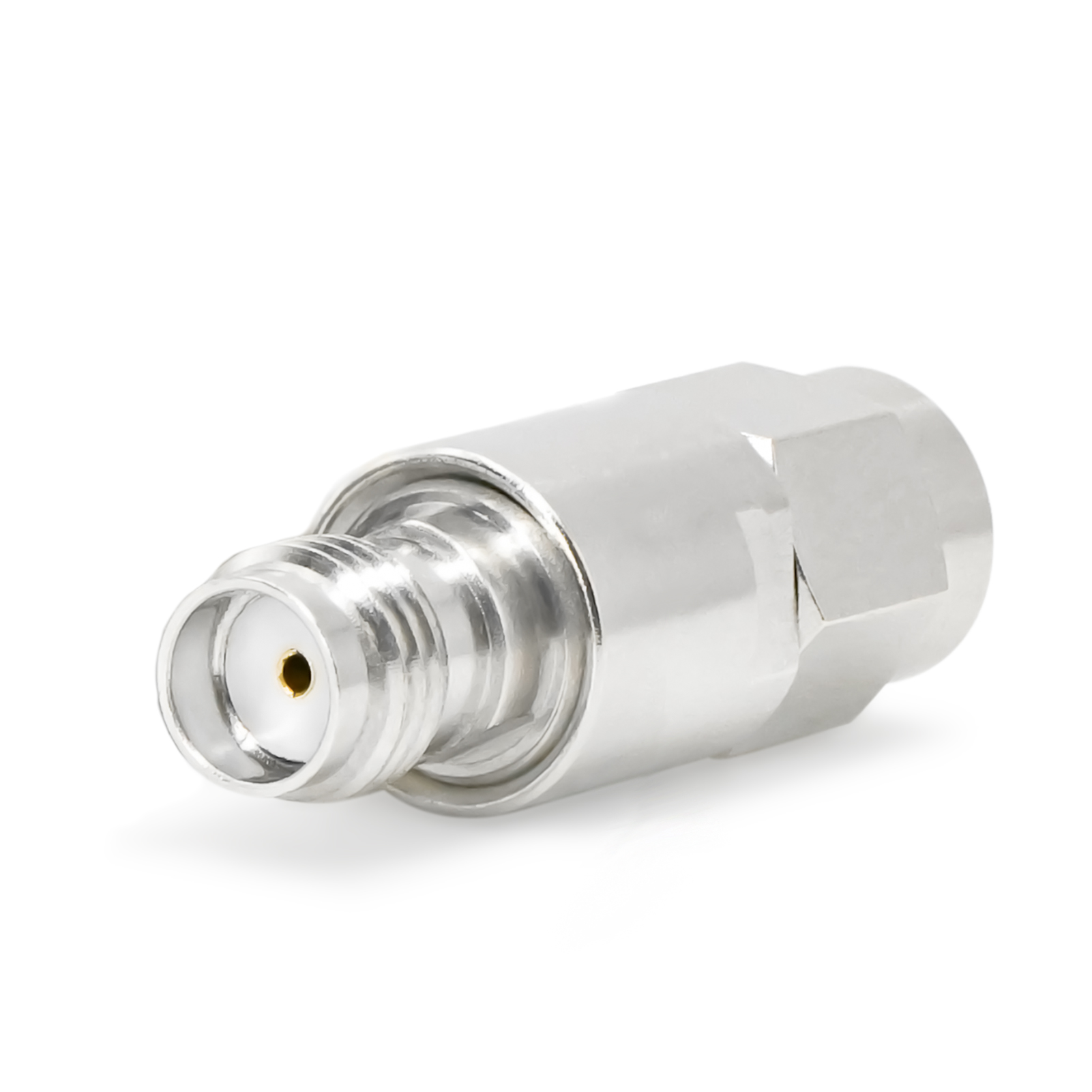

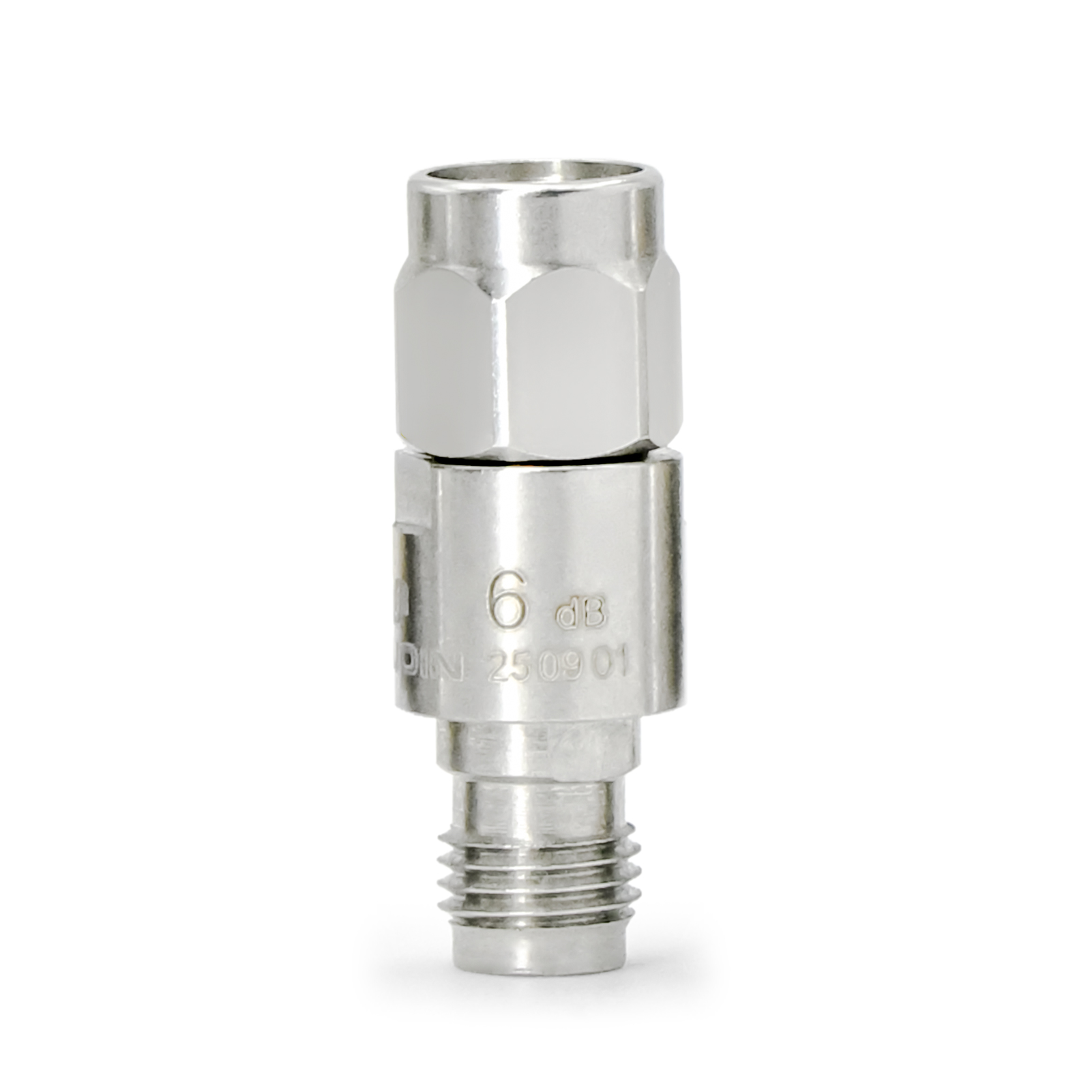

Product Appearance（New 50Ω   2W   3-30dB   DC-12.4GHz   SMA Male to SMA Female）

APPLICATIONS

• Impedance Matching

• Instrumentation

• Test Setups

Technical Specifications

Image	Number	Attenuation Typ.	Frequency	Impedance	VSWR	Connector Type	Rated Power

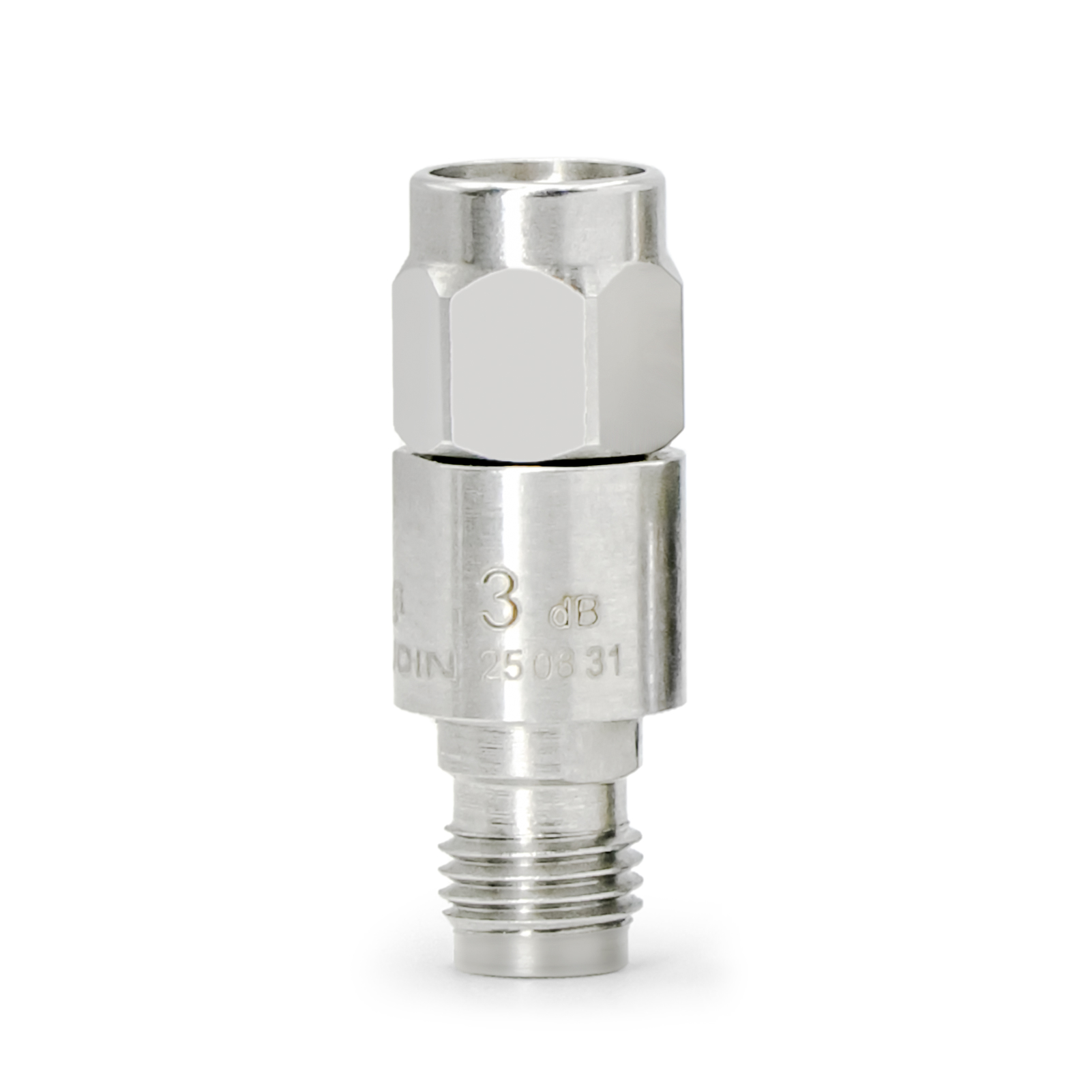

	60.06.040.0251	3dB	DC-12.4GHz	50Ω	≤1.25	SMA Male to Female	2W@25℃
	60.06.040.0274	5dB	DC-12.4GHz	50Ω	≤1.25	SMA Male to Female	2W@25℃
	60.06.040.0252	6dB	DC-12.4GHz	50Ω	≤1.25	SMA Male to Female	2W@25℃

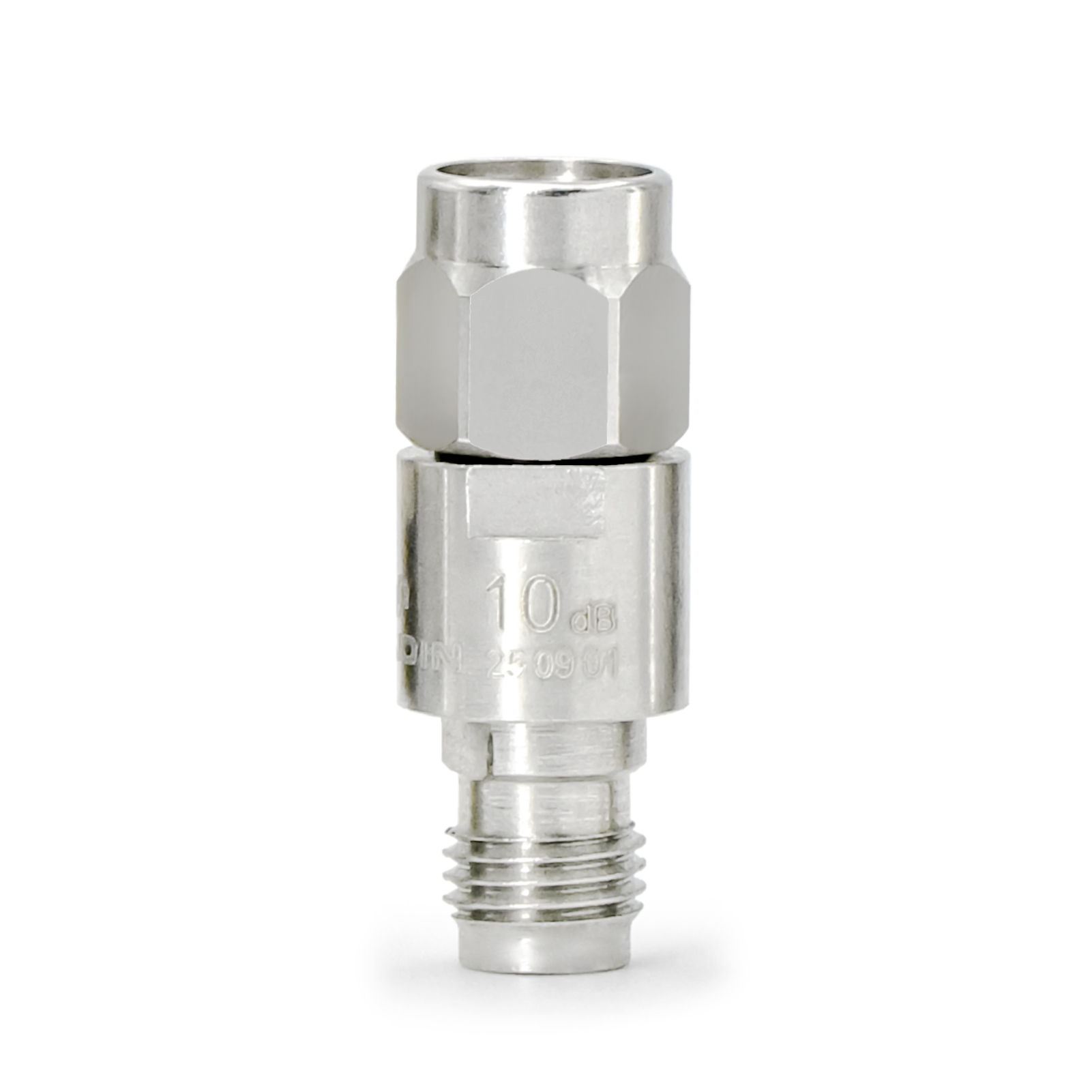

	60.06.040.0253	10dB	DC-12.4GHz	50Ω	≤1.25	SMA Male to Female	2W@25℃

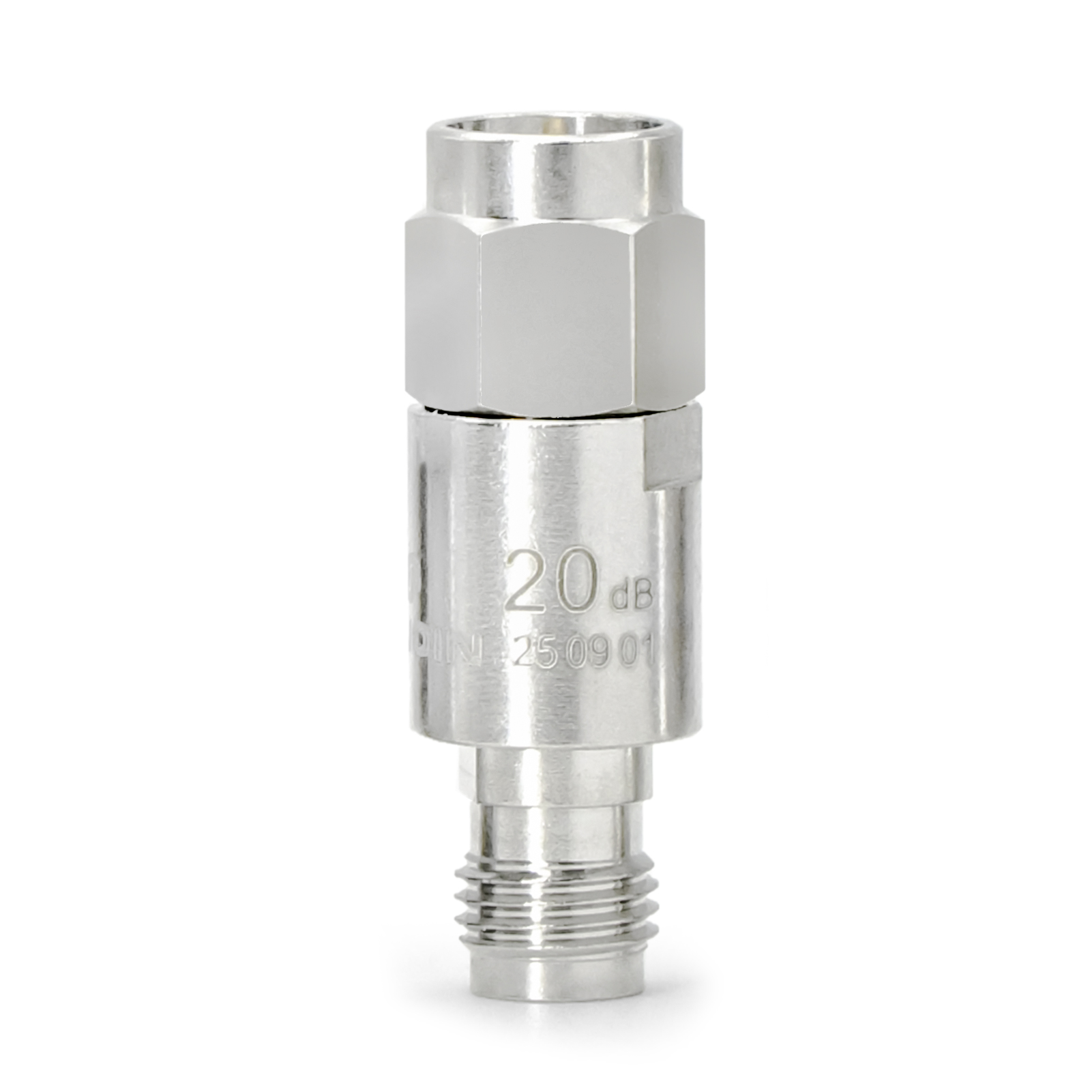

	60.06.040.0254E	20dB	DC-12.4GHz	50Ω	≤1.25	SMA Male to Female	2W@25℃
	60.06.040.0255	30dB	DC-12.4GHz	50Ω	≤1.25	SMA Male to Female	2W@25℃

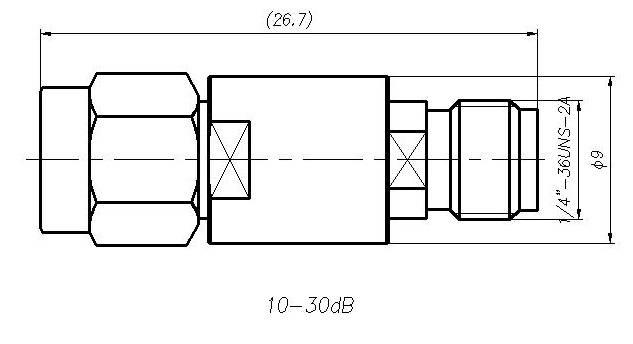

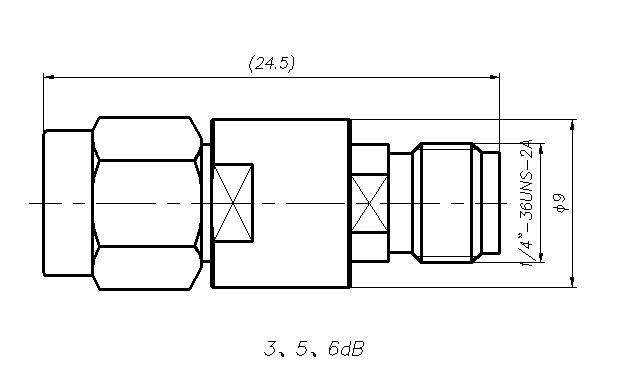

Product Dimensions（mm）

Test Report

20dB

30dB
