Coupled Antenna TX-PB0860-01(R)
Coupled Antenna TX-PB0860-01(R)
detailed information
Product Name: Coupled Antenna
Product Model: TX-PB0860-01(R)
Product Code: 60.06.011.0029
Technical Specifications:
| Parameter | Mni. | Typ. | Max. |
| Frequency Range(GHz) | 0.8 | - | 6.0 |
| Insertion Loss(dB) | 8 | - | 18 |
| Polarization Mode | - | right-hand circular polarization | - |

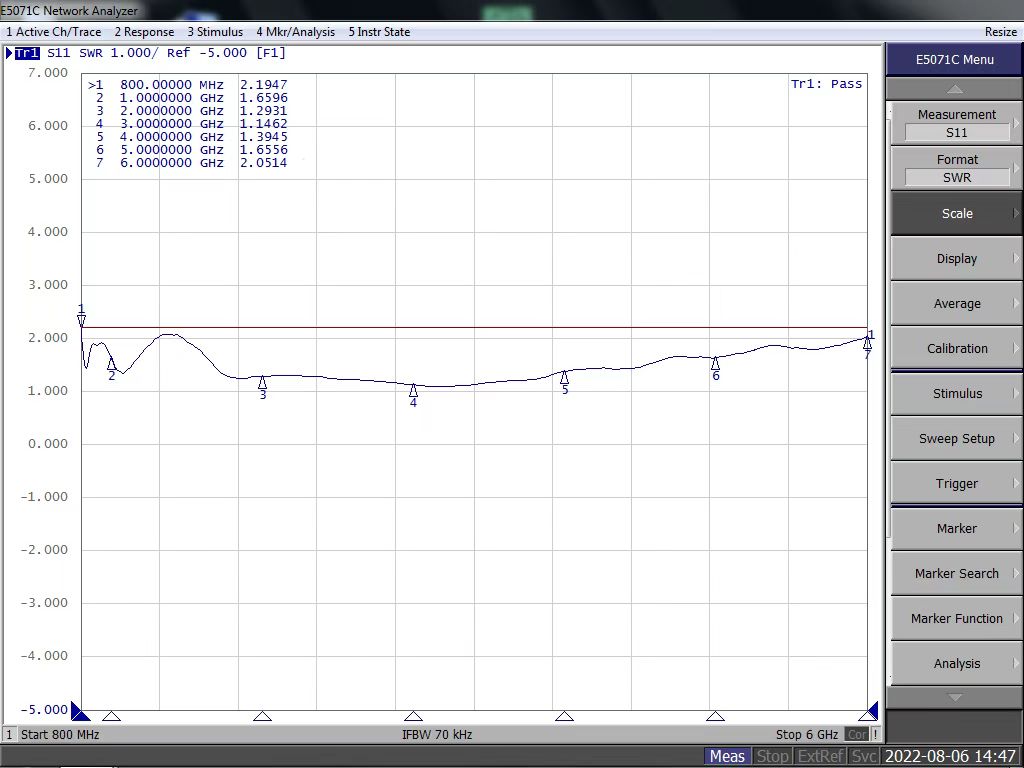

| VSWR | - | 1.8 | 2.2 |
| Nominal Impedance(Ω) | - | 50 | - |
| Connectors | - | SMA | - |
| Operating Temperature (°C) | -10 | indoor temperature | +50 |
| Storage Temperature (°C) | -15 | - | +65 |
| Physical Dimension(mm) | - | 130*106*16 | |
| Weight (g) | - | 250 | - |

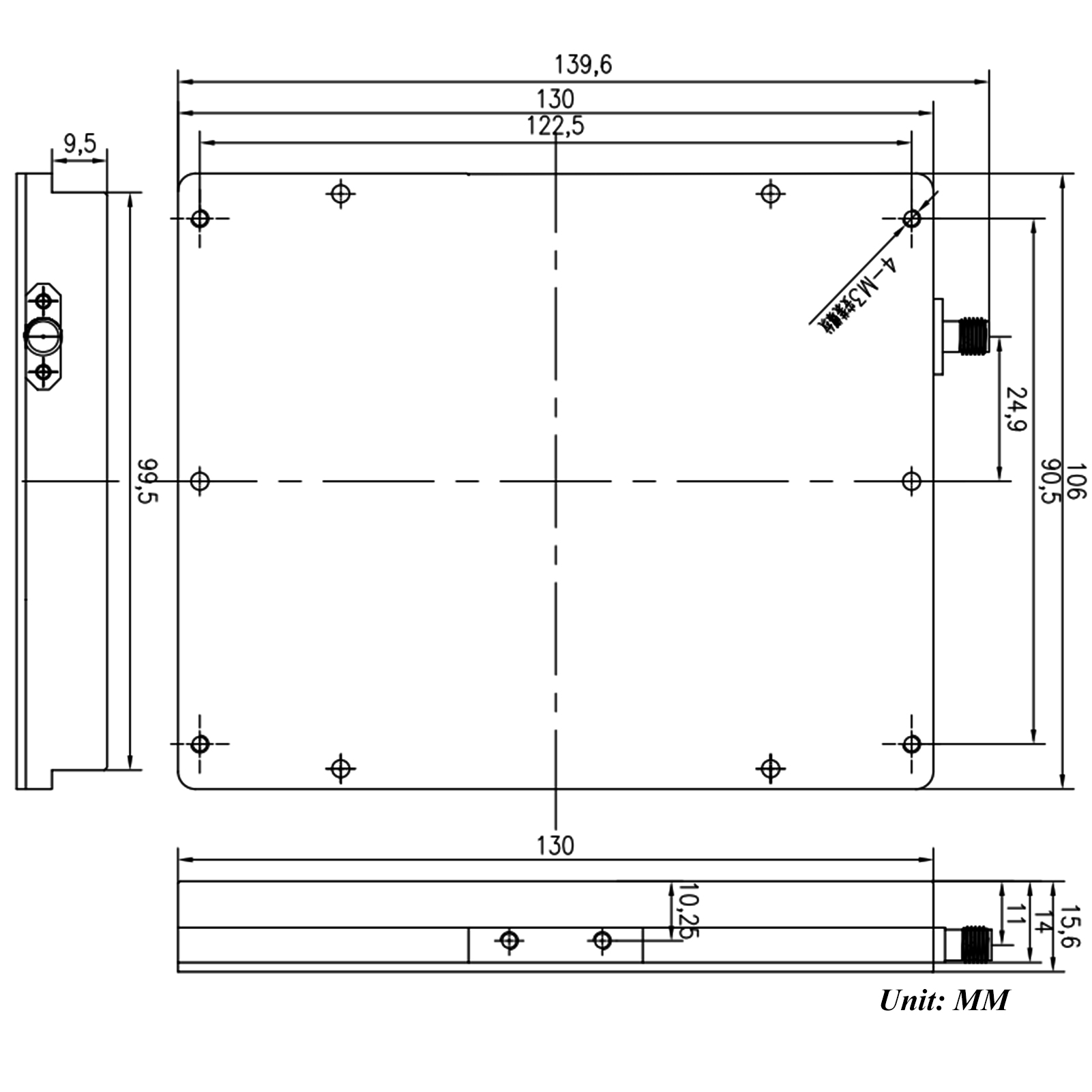

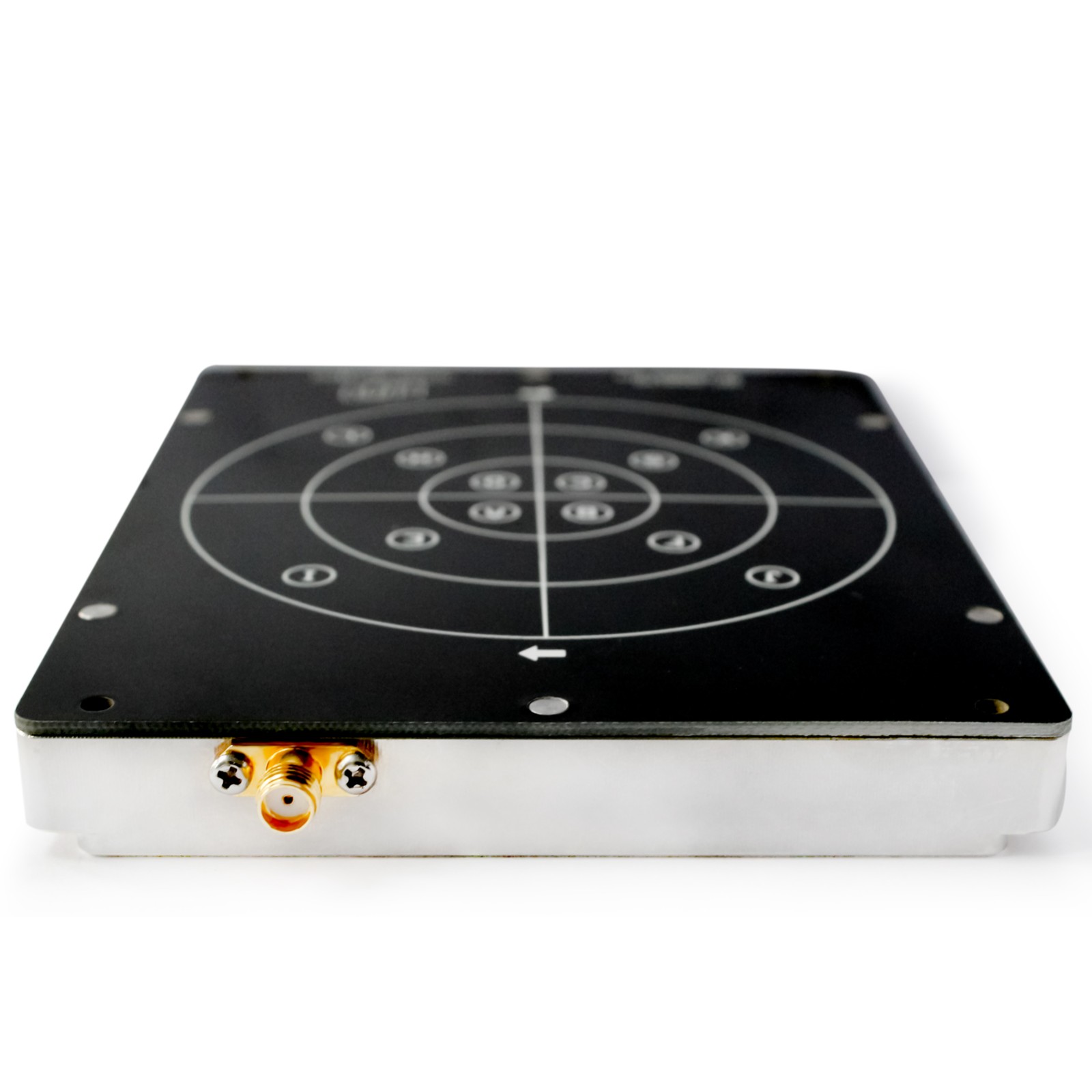

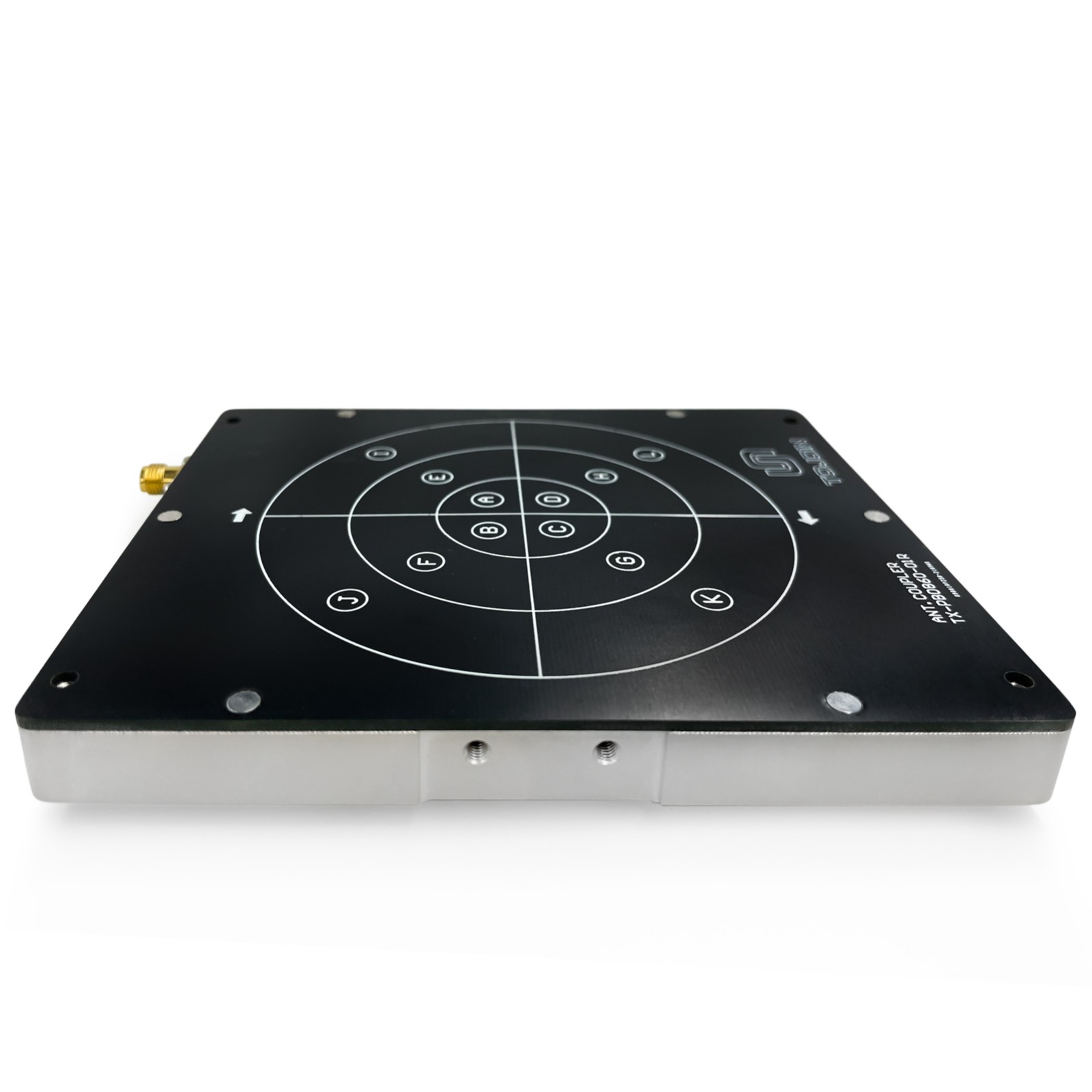

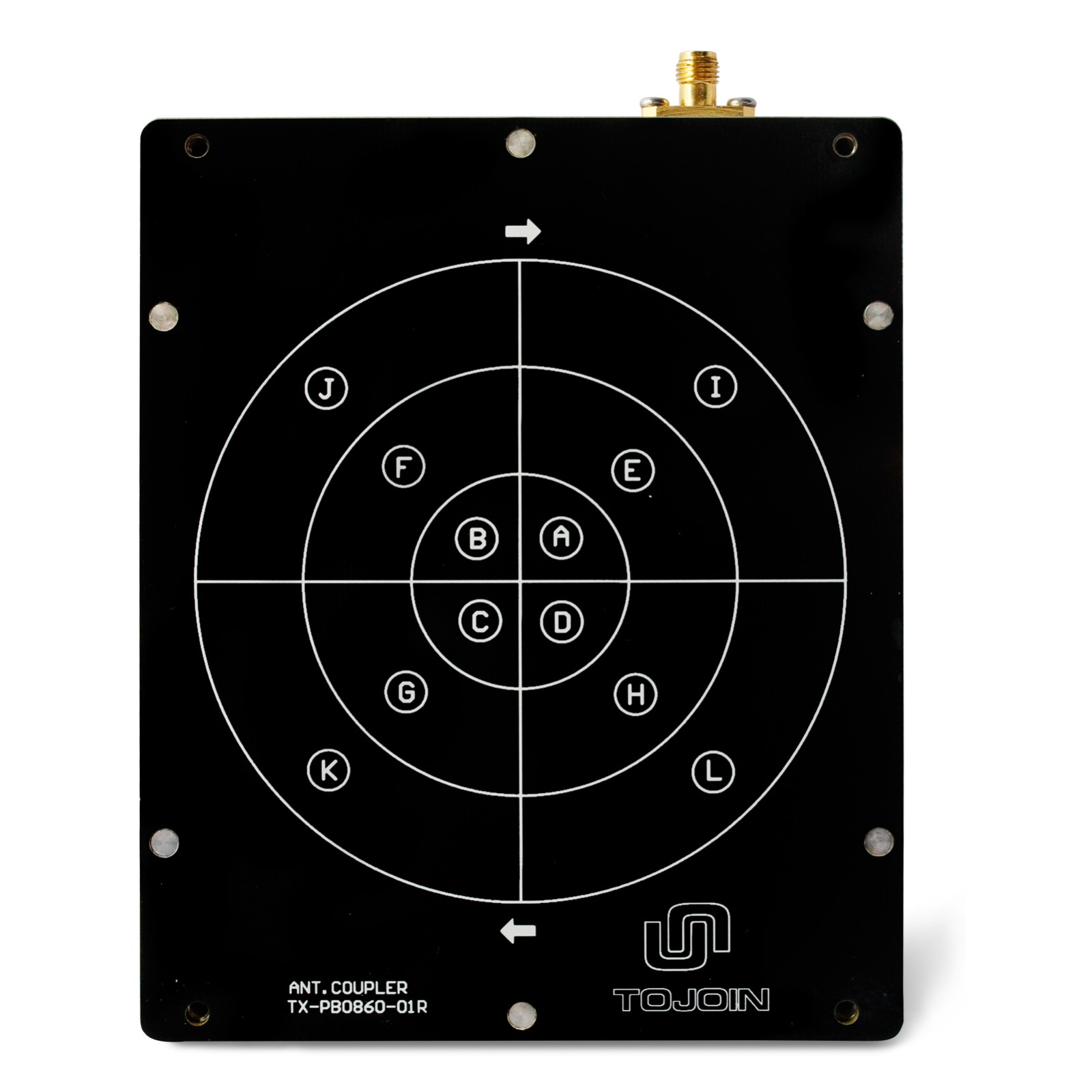

Appearance Structure:
