GPS/GNSS Antenna Series Technical Specifications
| Image | Model/Number | Frequency (GHz) | Gain (dB) | Gain Flatness | Polarization Mode | Axial Ratio (dB) | VSWR | Horizontal Coverage(°) | Inputimpedance (Ω) | Voltage (v) | Working Current (mA) |

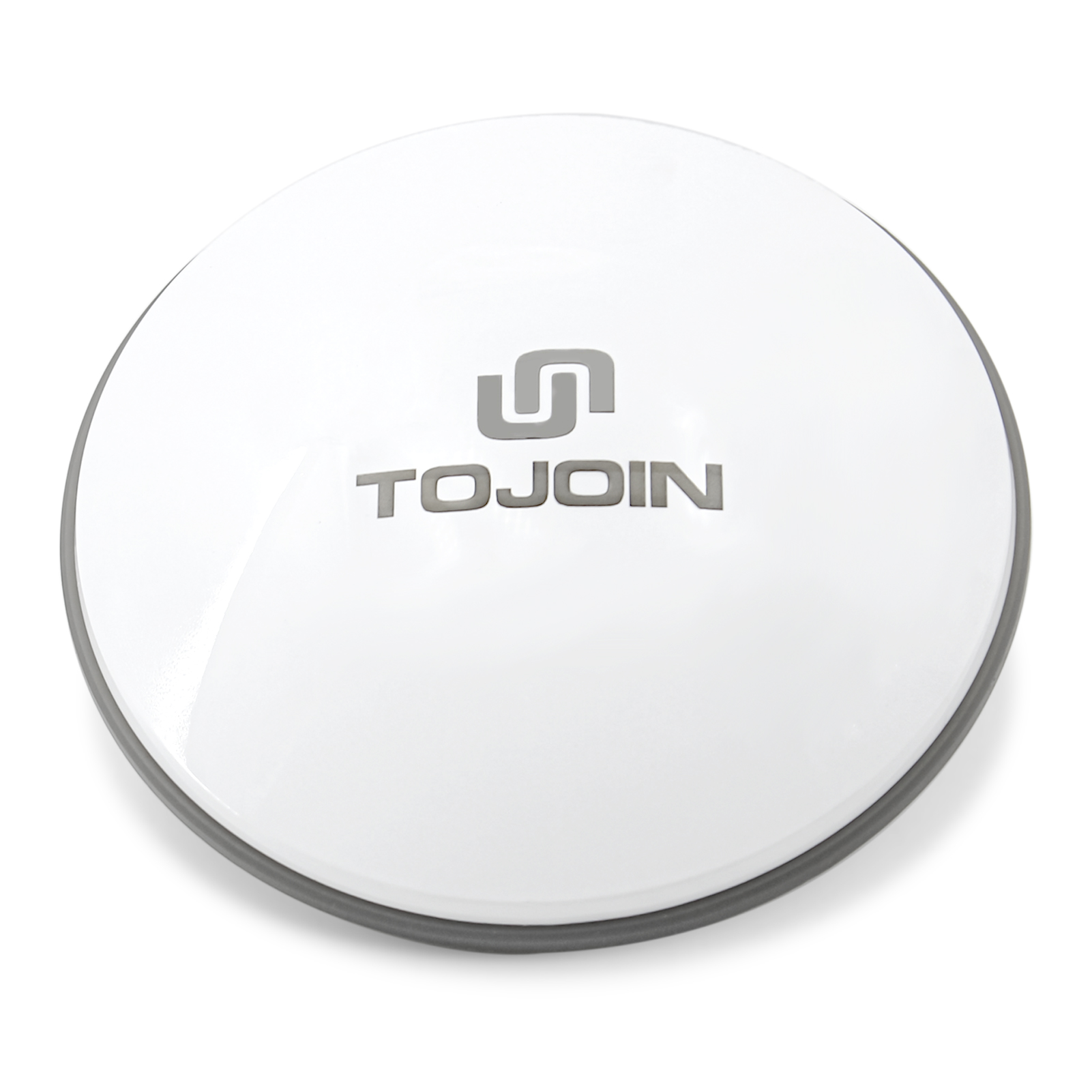

 | 60.06.010.0026 TX-GNSS-UN0412-001 | GPS：L1/L2/L5/LBand BDS：B1/B2/B3 GLONASS：L1/L2/L3 GALILEO：E1/E5a/E5b/E6 | 40±2 | ≤1 | Right-handed circular polarization | ≤3 | ≤2 | 0-360 | 50 | 3.3Min. 12.0Max. | 45Max. |
