SMA RF Termination 8GHz/18GHz
SMA RF Termination 8GHz/18GHz
detailed information
RF Termination SMA 50Ω 0.25W 8GHz/18GHz

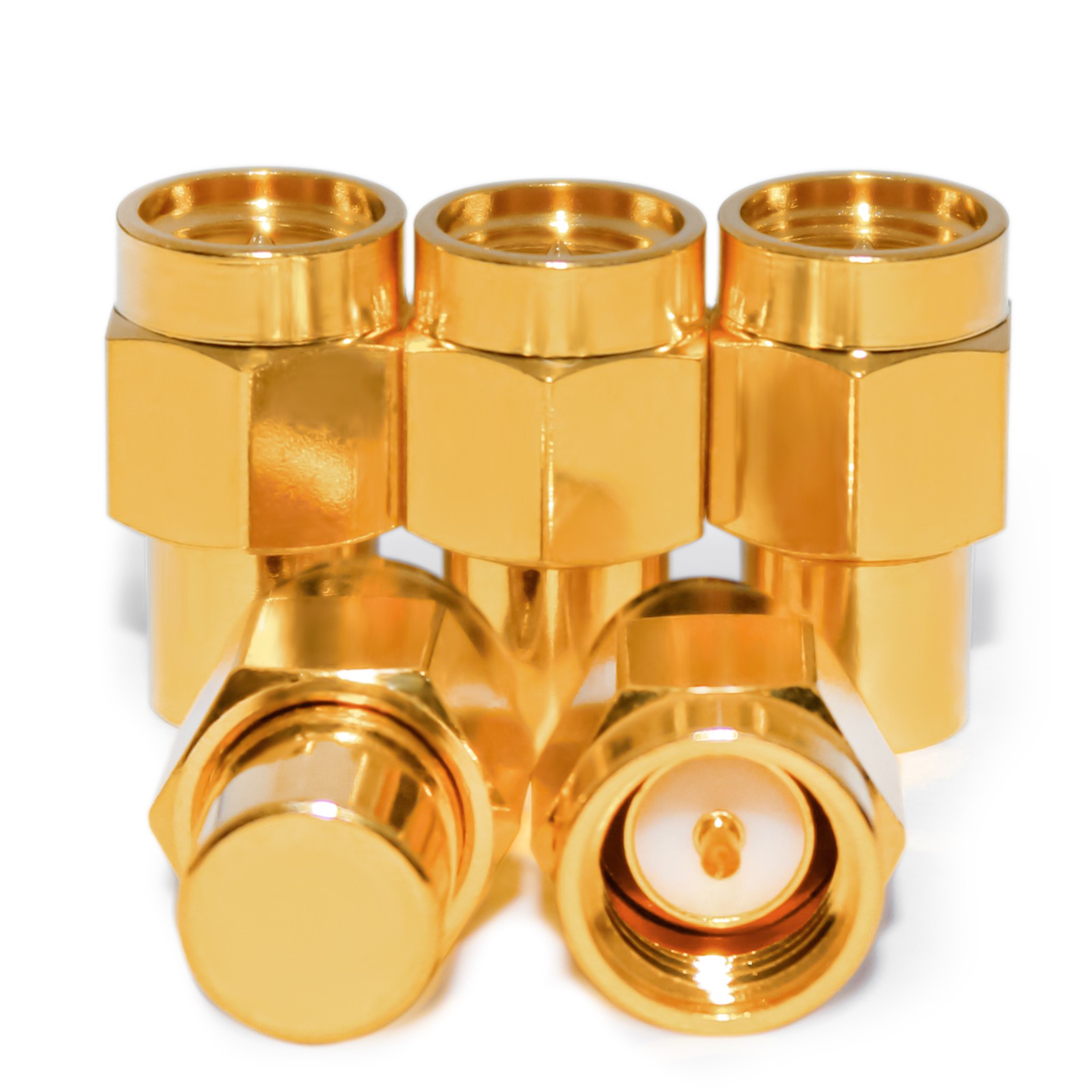

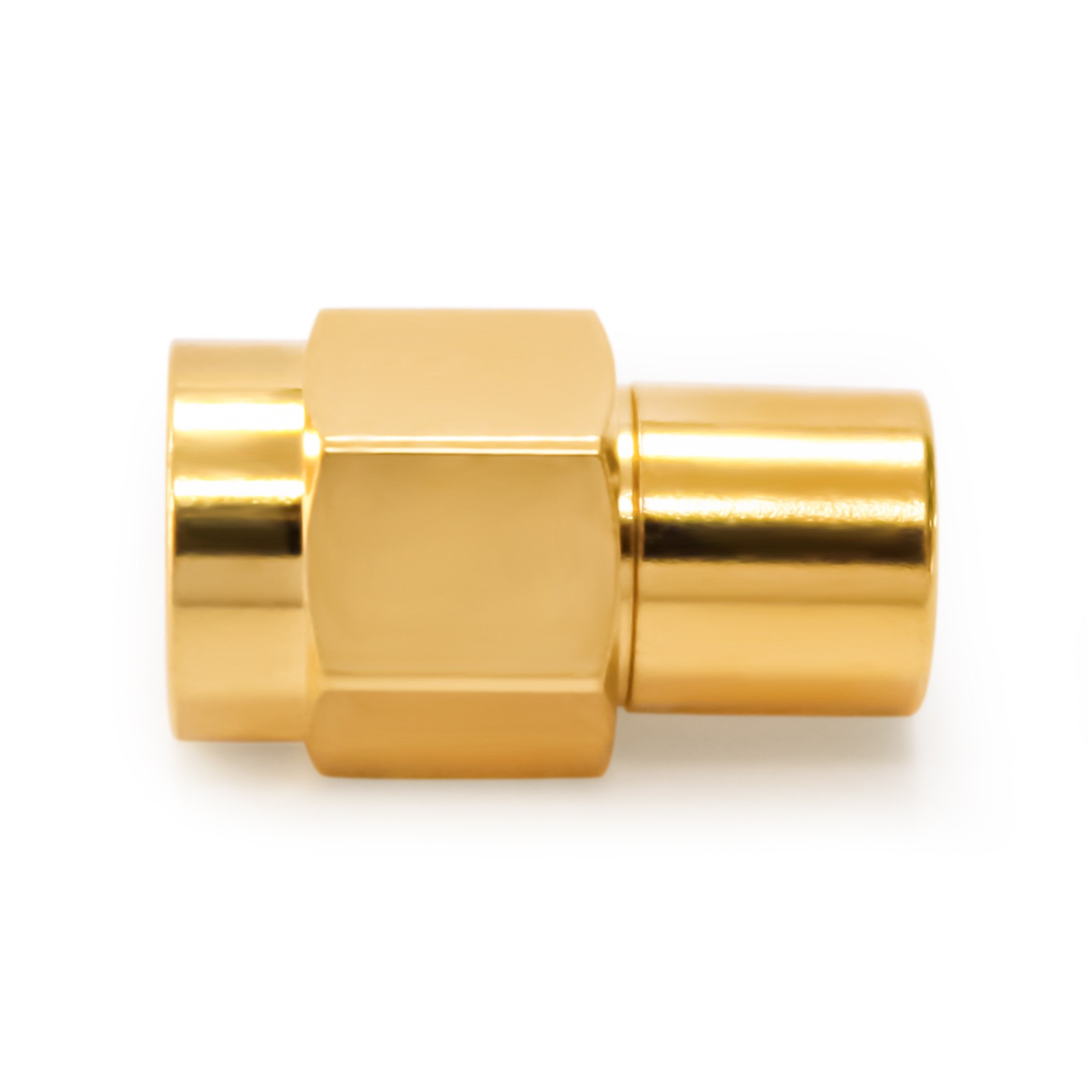

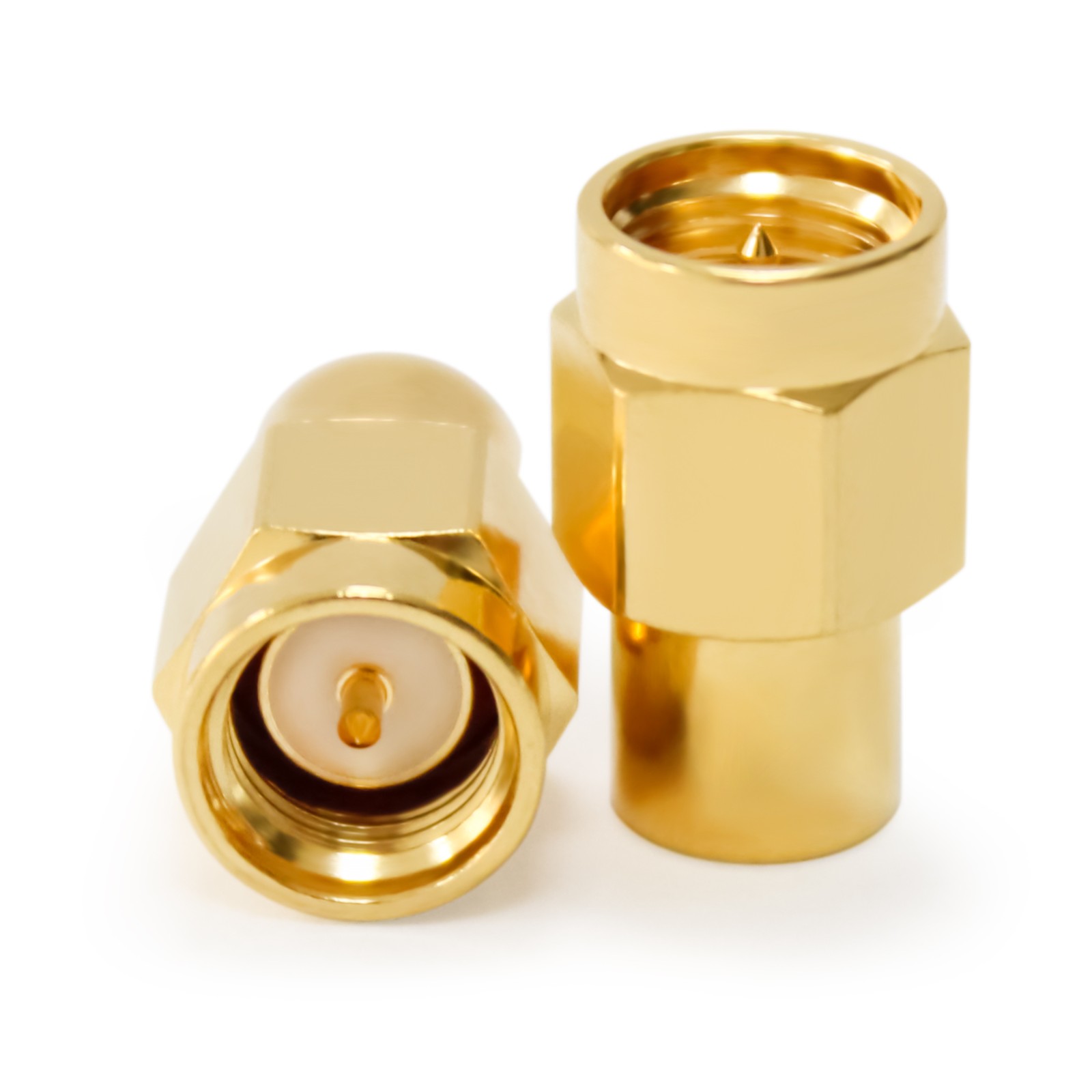

Product Appearance
APPLICATIONS
Cellular communications
Satellite communications
Test set-up
Radar
Technical Specifications
| Number | 60.06.080.0020 | 60.06.080.0350 |
| Frequency(GHz) | DC-8 | DC-18 |
| Impedance(Ω) | 50 | 50 |
| VSWR | ≤1.2 | ≤1.3 |
| Power(W) | 0.25（avg.） | 0.25（avg.） |
| Connector | SMA Male | SMA Male |
| Shell Material | Copper Alloy | Copper Alloy |
| Working Temperature(℃) | -10℃~60℃ | 10℃~60℃ |

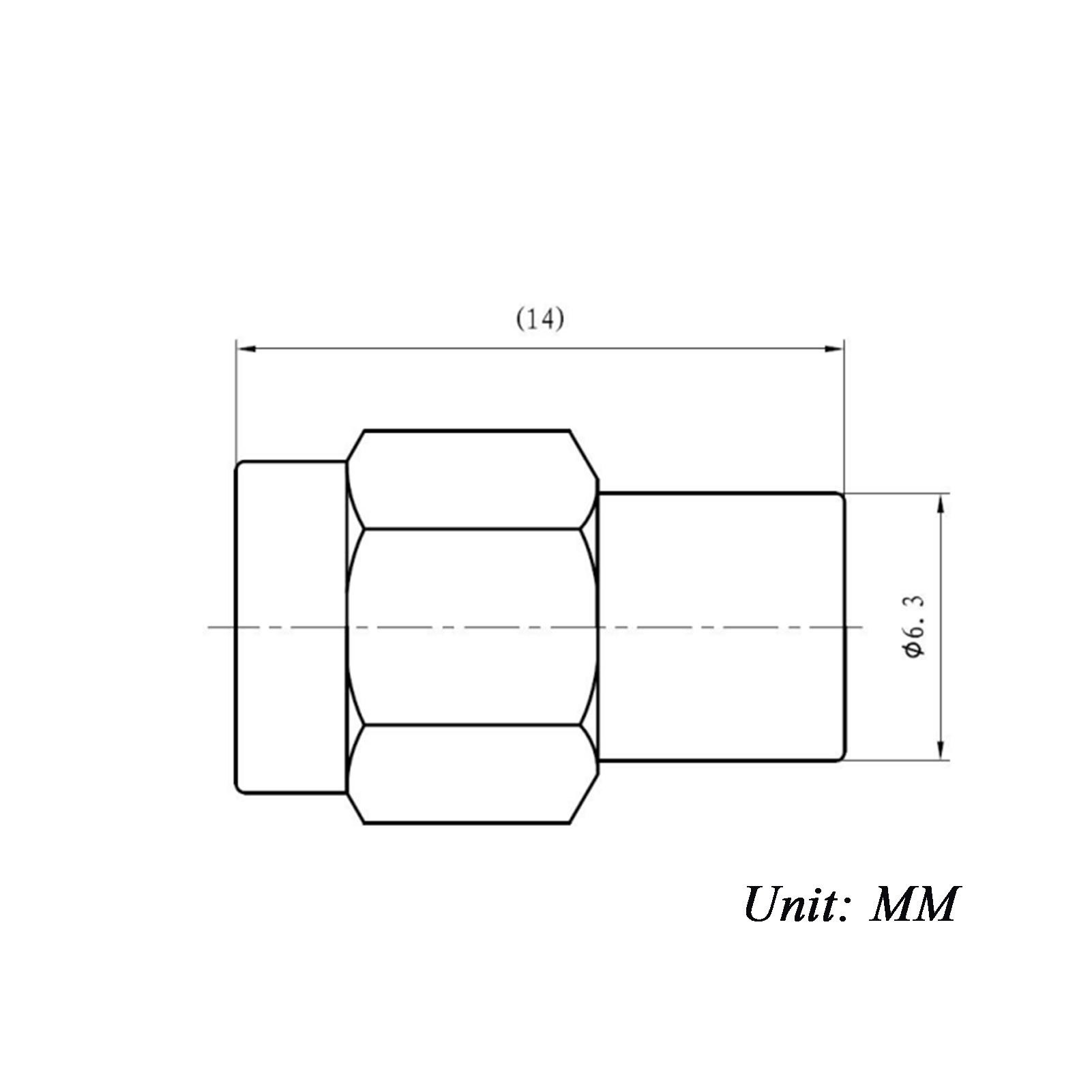

Product Dimensions （mm）
