GPS/GNSS Splitters
GPS/GNSS Splitters
detailed information
GPS/GNSS Splitters
Applications
Aerospace
Survey
Telecom
Automotive
Public safety
Commercial electronics markets
Technical Specifications
| Image | Model/Number | Frequency（GHz） | Insertion loss(dB) | Isolation（dB） | VSWR | Interface | Power（W） | Impedance(Ω) |

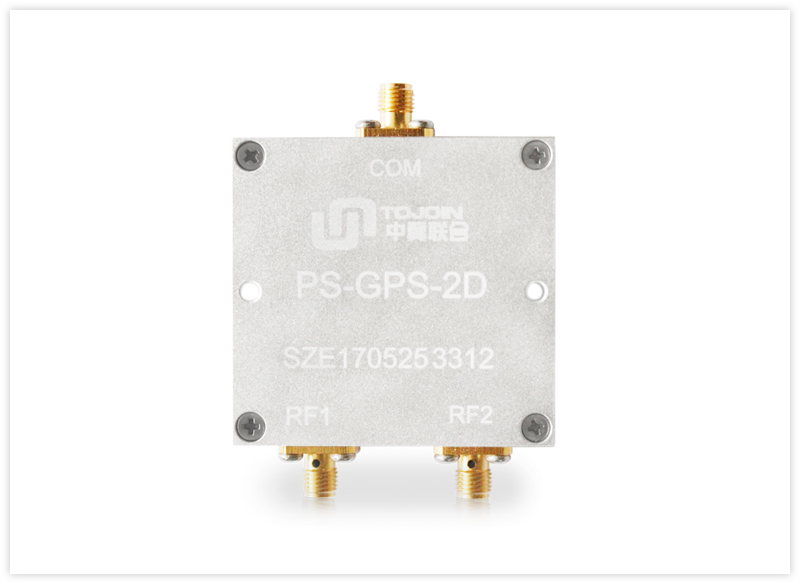

| PS-GPS-2D 60.06.020.0004 | 1.2 mni. 1.7 max | 3.5 max. | 20 mni. | ≤1.35 | SMA（DC-block 50VDC max.） | 30 | 50 |

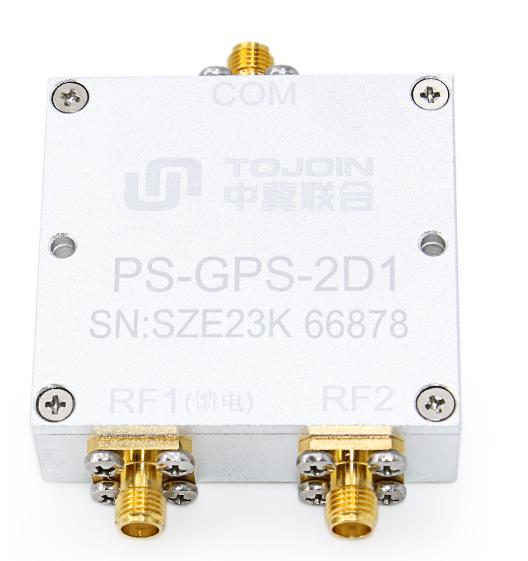

| PS-GPS-2D1 60.06.020.0108 | 1.2 mni. 1.7 max | 3.5 max. | 20 mni. | ≤1.35 | SMA(COM/RF1 DC 300mA max.;RF2~RF8 with DC block 50VDC max.) | 30 | 50 |

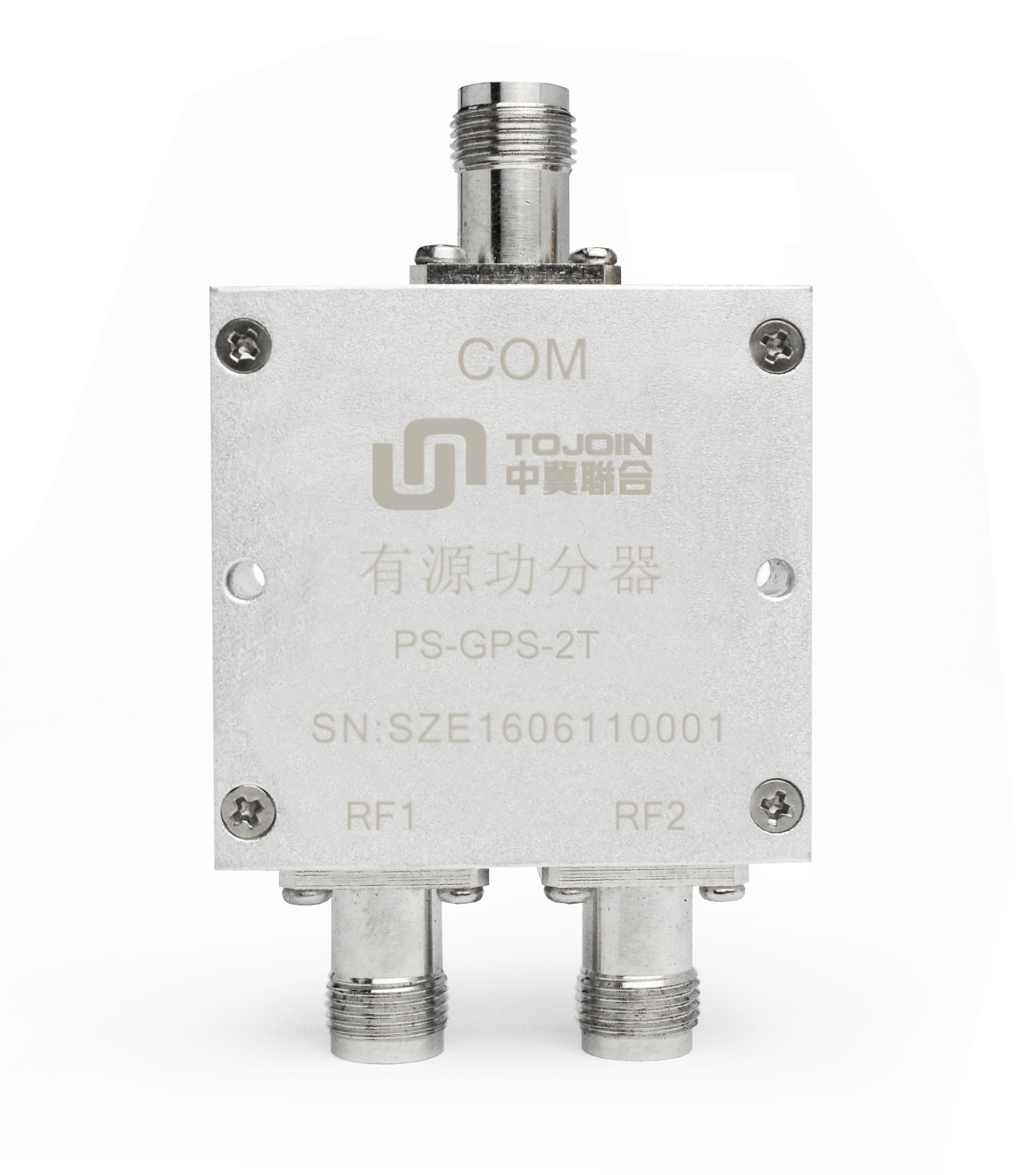

| PS-GPS-2T 60.06.020.0095 | 1.55 mni. 1.65 max | 3.5 max. | 25 mni. | ≤1.35 | N Female | 50 | 50 |

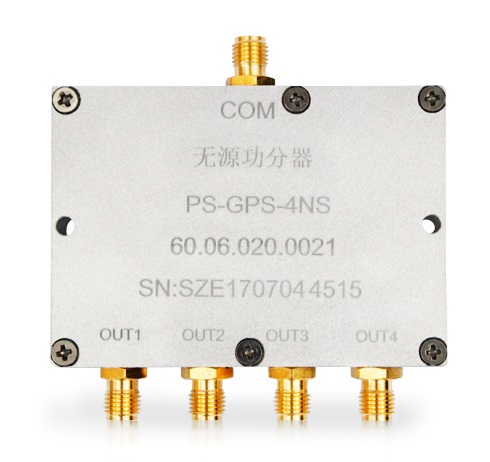

| PS-GPS-4NS 60.06.020.0021 | 1.57 mni. 1.58 max | 7.5 max. | 28 mni. 30 typ. | ≤1.35 | SMA（DC-block 50VDC max.） | 20 | 50 |

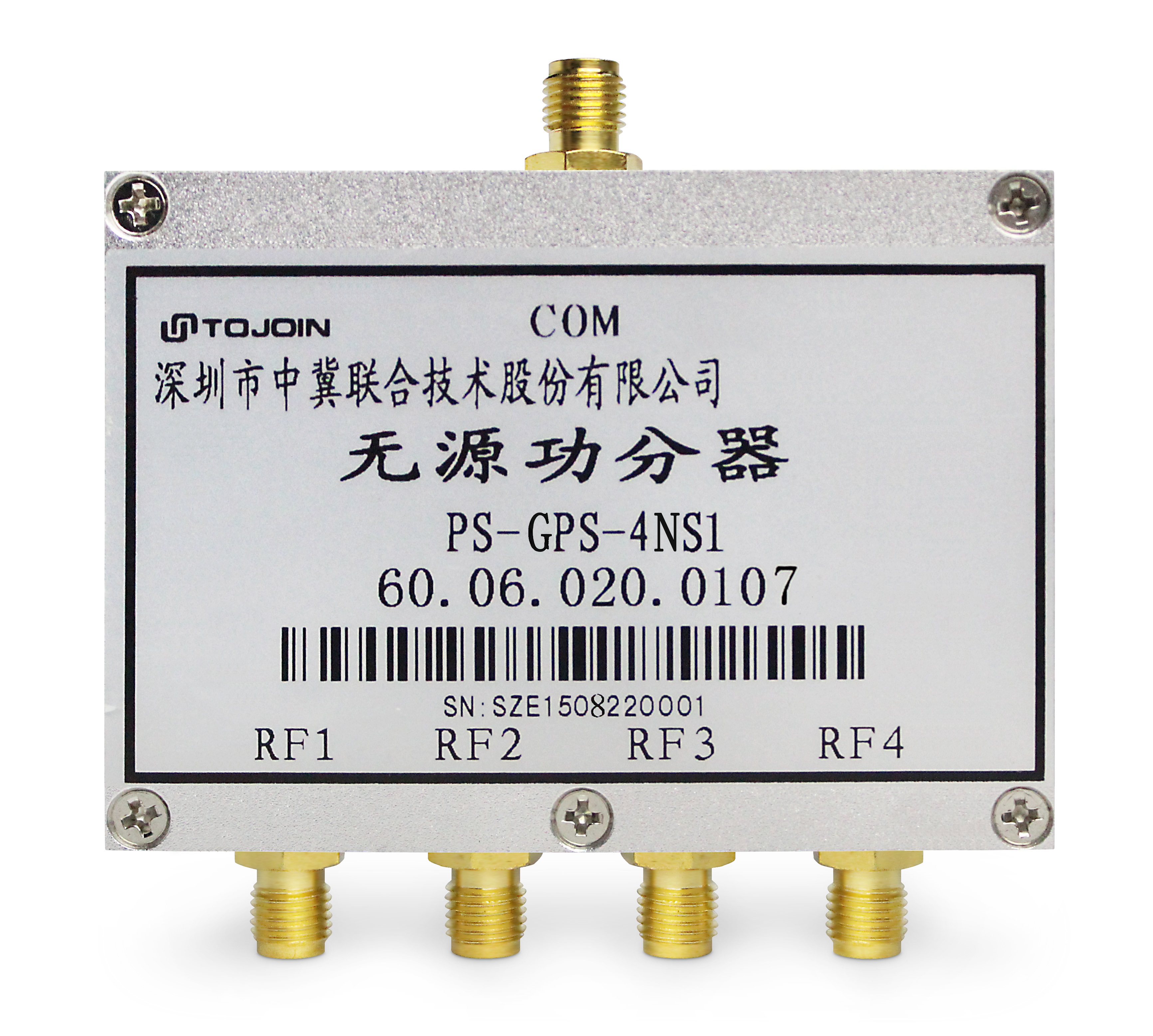

| PS-GPS-4NS1 60.06.020.0107 | 1.57 mni. 1.58 max | ||||||
Active power splitter
| Image | Model/Number | Frequency（GHz） | Gain（Typ.）（dB） | Noise(dB) | Isolation（Typ.）（dB） | VSWR | Interface | Power（W） |
PS-2NM-GPS-G12 60.06.021.0012 | 1.575 min. 1.58 max. | 12 | 4 max. | -30@ 1575.42 MHz (L1)； -25@ L1 ≤f ≤ L1 +10 MHz； -25@ L1-10MHz ≤f ≤ L1 | ≤1.5 | N Female | 20 |
