RG316D/SMA-J3G(2) Coaxial Cable

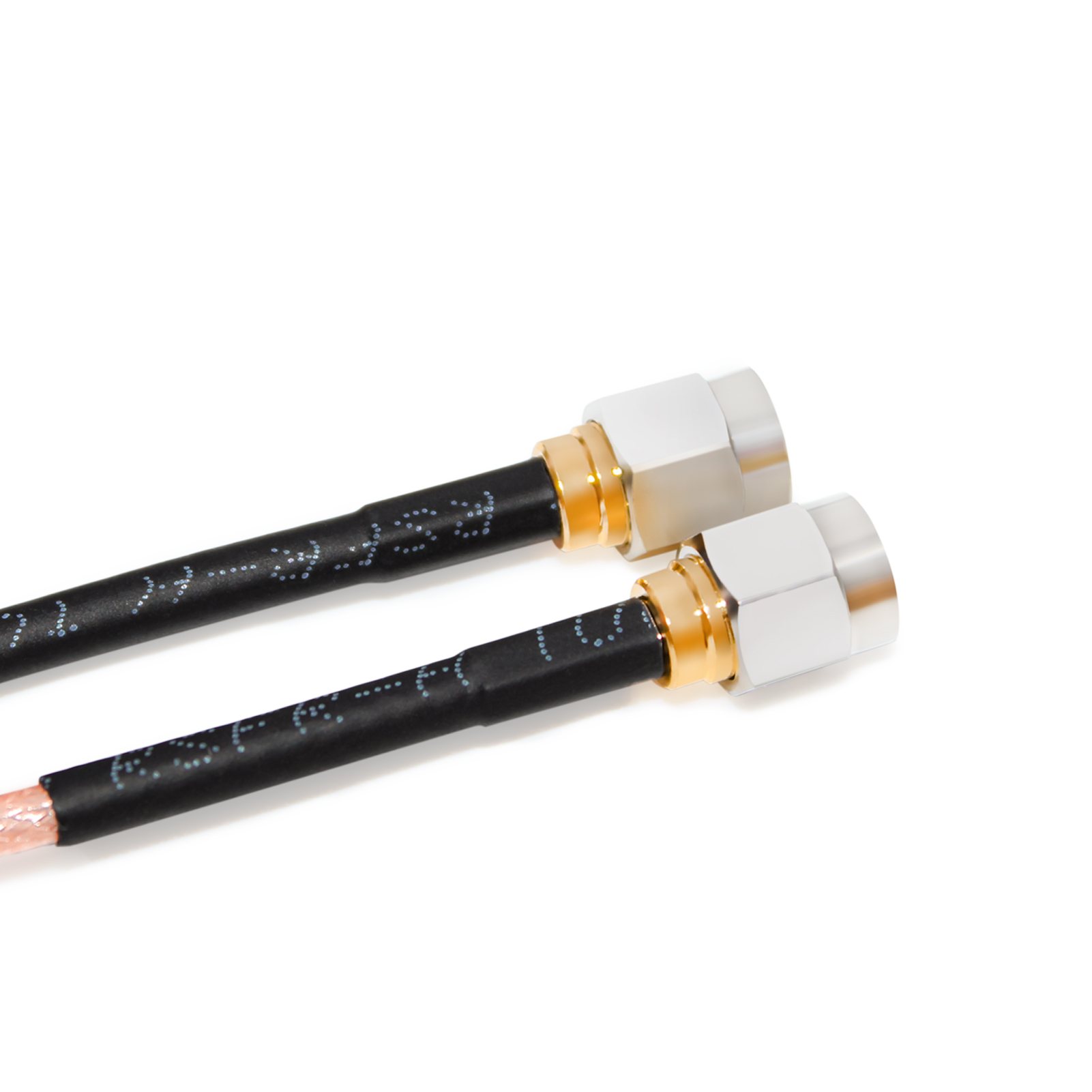

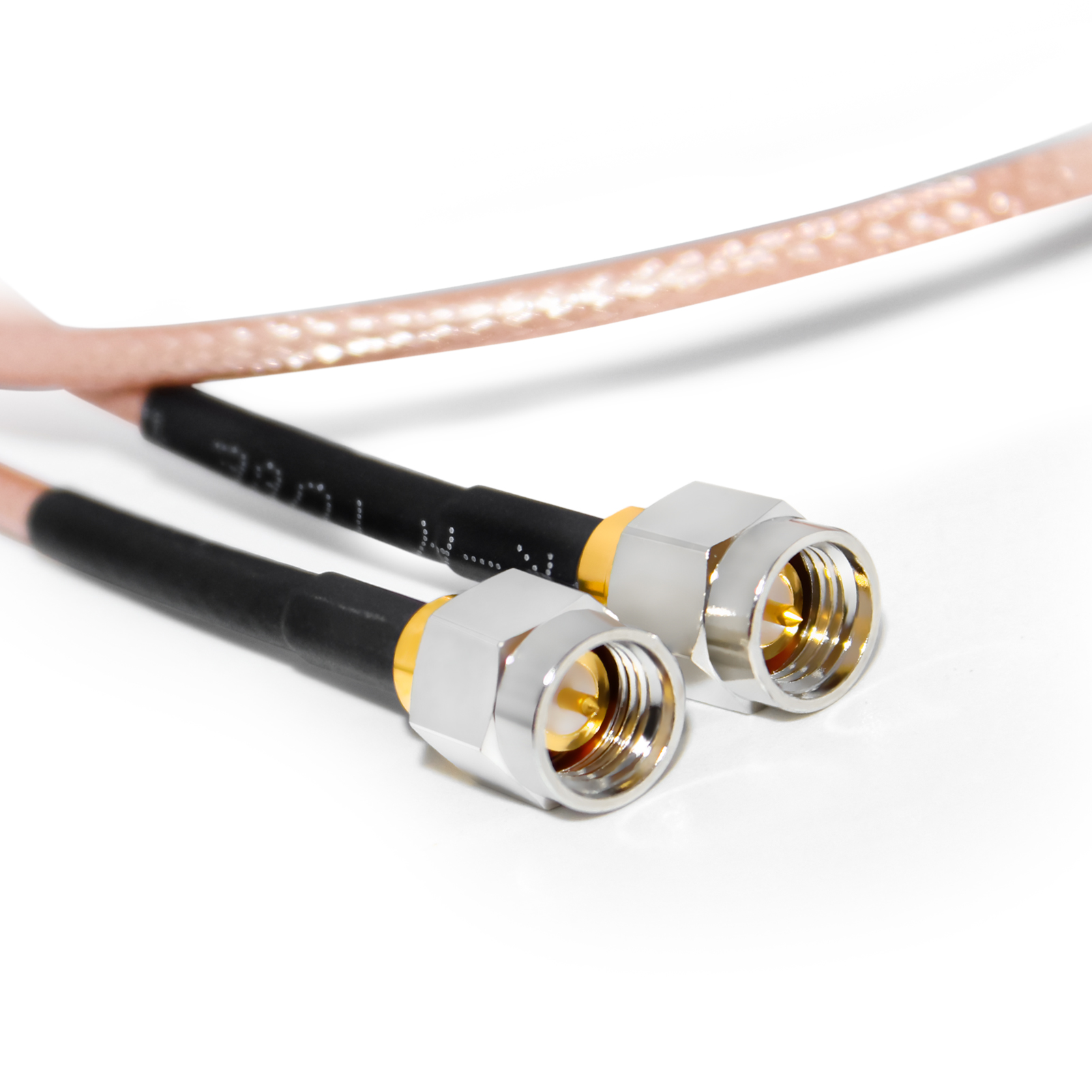

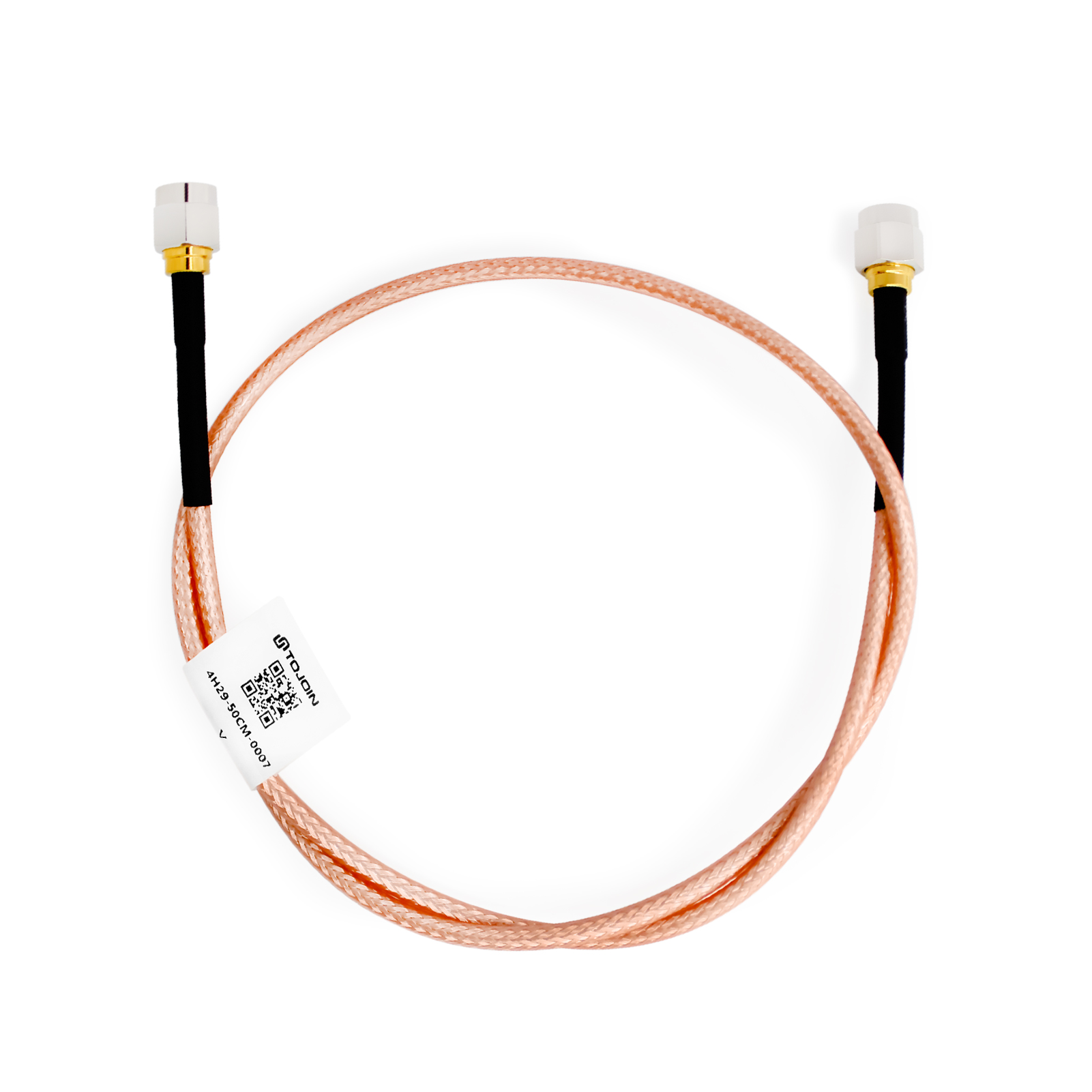

Product Appearance
|
|
|
Technical Specifications
| Product Model | RG316D/SMA-J3G(2)-1M | RG316D/SMA-J3G(2)-50CM |
| Product Code | 60.08.001.0080 | 60.08.001.0171 |
| Length | 1M | 50CM |
| Frequency | 50Ω | 50Ω |
| Impedance | DC~8GHz | DC~3GHz |
| Cable | RG316D | RG316D |
| Connector | SMA-J3G | SMA-J3G |
| VSWR | ≤1.25 | ≤1.3 |
| Insertion Loss | ≤4.3dB | ≤2dB |
| Rated Voltage | 335V | 335V |
| Material | Copper Alloy | Copper Alloy |
| Operating Temperature | -10℃ ~ +80℃ | -45℃ ~ +95℃ |
Product Dimensions

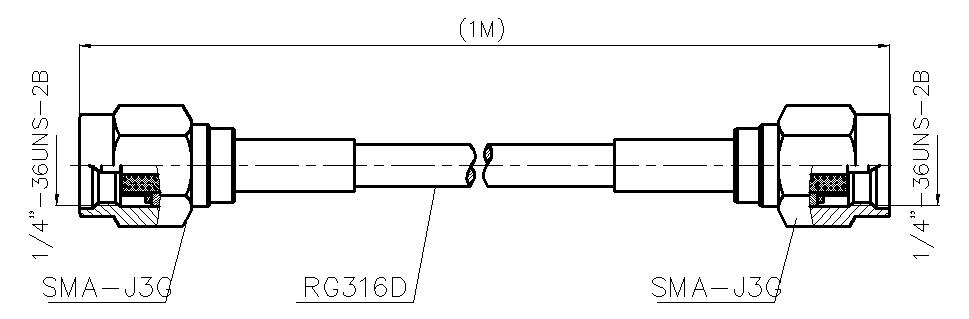

RG316D/SMA-J3G(2)-1M

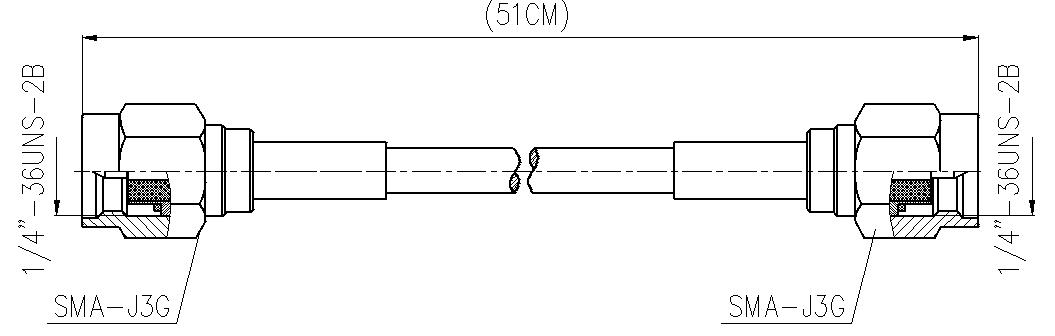

RG316D/SMA-J3G(2)-50CM
