3507/2.92(M)(2) Coaxial Cable

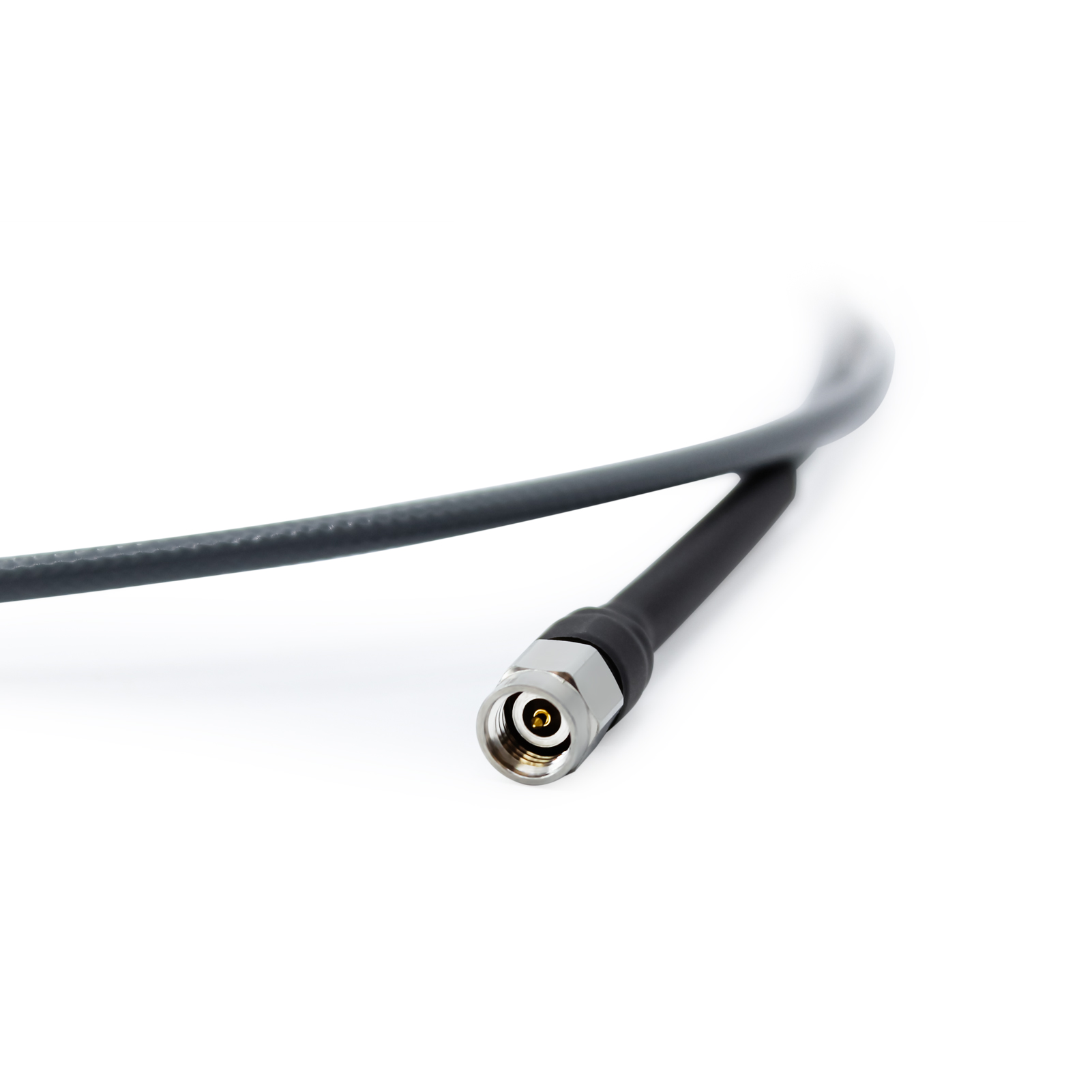

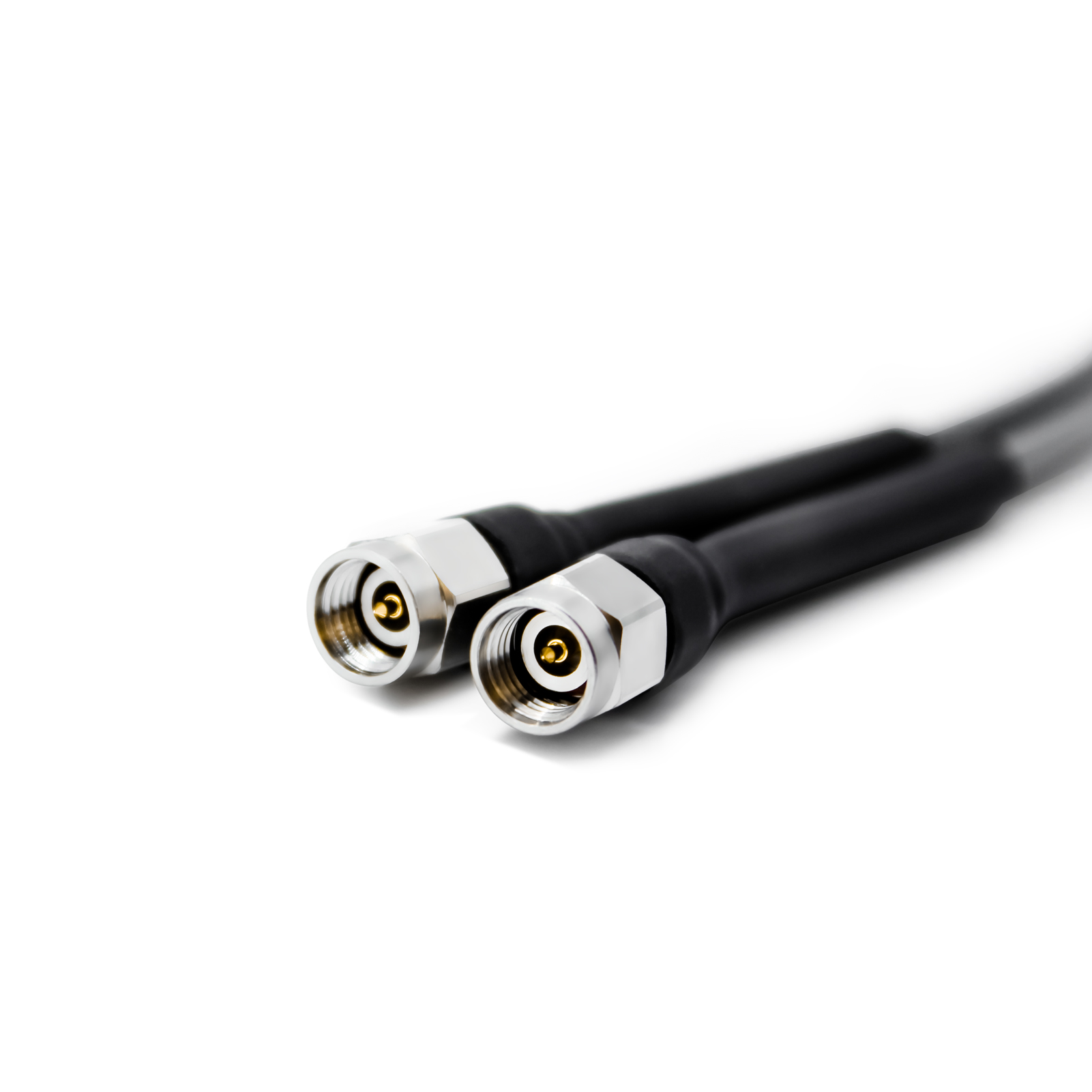

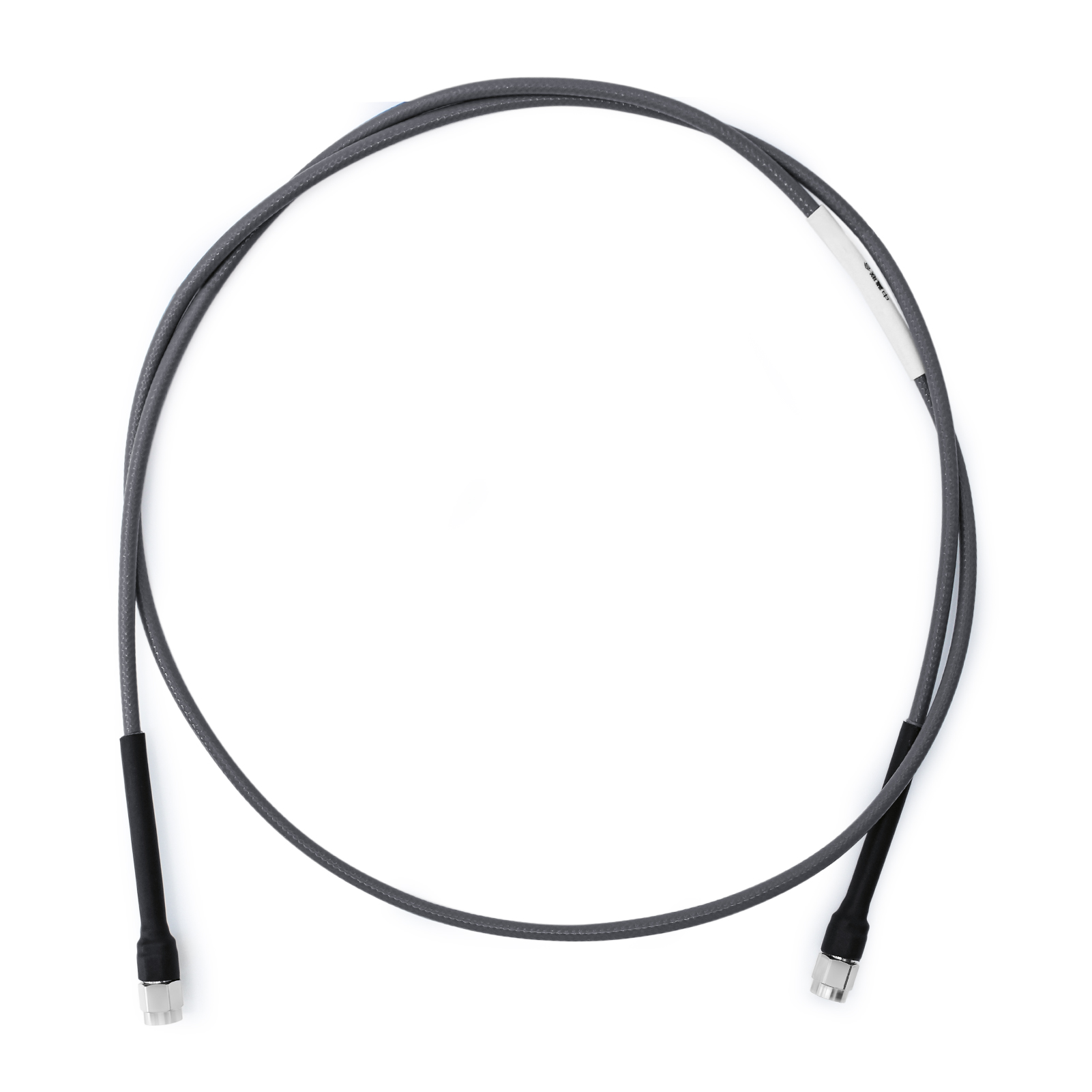

Product Appearance
|
|
|
Technical Specifications
| Product Model | 3507/2.92(M)(2)-1M |
| Product Code | 60.08.066.0010 |
| Length | 1M |
| Frequency | DC~40GHz |
| Impedance | 50Ω |
| Cable Type | 3507 Series |
| Connector 1 | 2.92 Male |
| Connector 2 | 2.92 Male |
| VSWR | ≤1.35 |
| Shielding Performance | ＜-90dB@1GHz |
| Power | 200W@5GHz |
Cable Parameters
| Center Conductor | Silver-plated copper |
| Insulation | ePTFE |
| Cable Jacket | FEP |
| Data Transfer Rate | 85% |
| Minimum Bend Radius | 6.35mm |
| Jacket Outer Diameter | 3.6mmm |
Cable Specifications
| Model | Length(mm) | Insertion Loss≤（dB） | |||
| 10GHz | 18GHz | 26.5GHz | 40GHz | ||
| 292M292M-8000 | 8000±30 | 9.94 | 13.64 | 17.26 | 21.36 |
| 292M292M-3000 | 3000±30 | 3.89 | 5.34 | 6.76 | 8.36 |
| 292M292M-2000 | 2000±20 | 2.68 | 3.68 | 4.66 | 5.76 |
| 292M292M-1500 | 1500±15 | 2.08 | 2.85 | 3.61 | 4.46 |
| 292M292M-1200 | 1200±12 | 1.72 | 2.35 | 2.98 | 3.68 |
| 292M292M-1000 | 1000±10 | 1.47 | 2.02 | 2.56 | 3.16 |
| 292M292M-600 | 600±10 | 0.98 | 1.36 | 1.72 | 2.12 |
| 292M292M-500 | 500±10 | 0.865 | 1.19 | 1.51 | 1.86 |
| 292M292M-400 | 400±10 | 0.75 | 1.02 | 1.31 | 1.58 |
| 292M292M-200 | 200±10 | 0.53 | 0.72 | 0.87 | 1.08 |
