3506/1.85(M)(2) Coaxial Cable

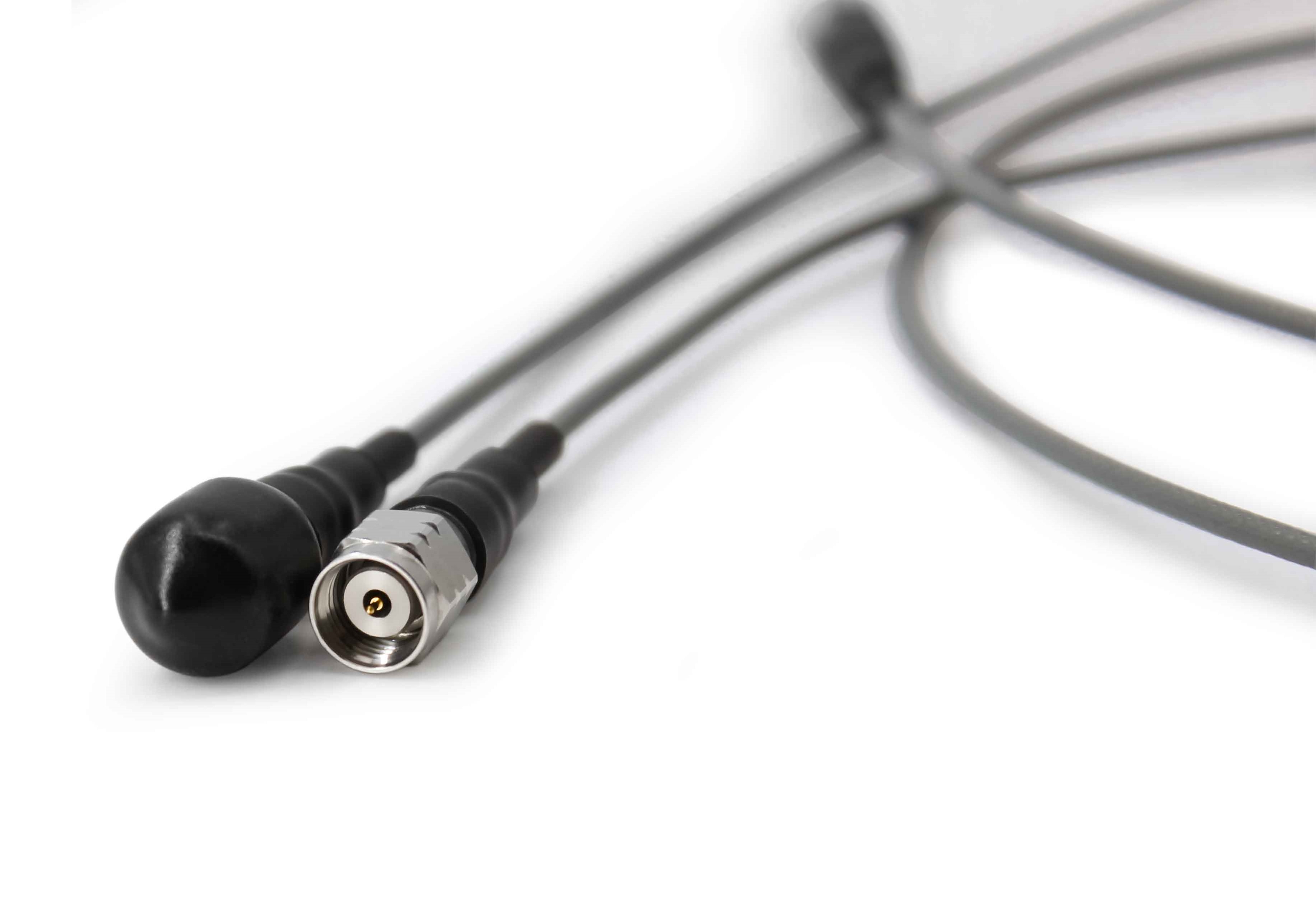

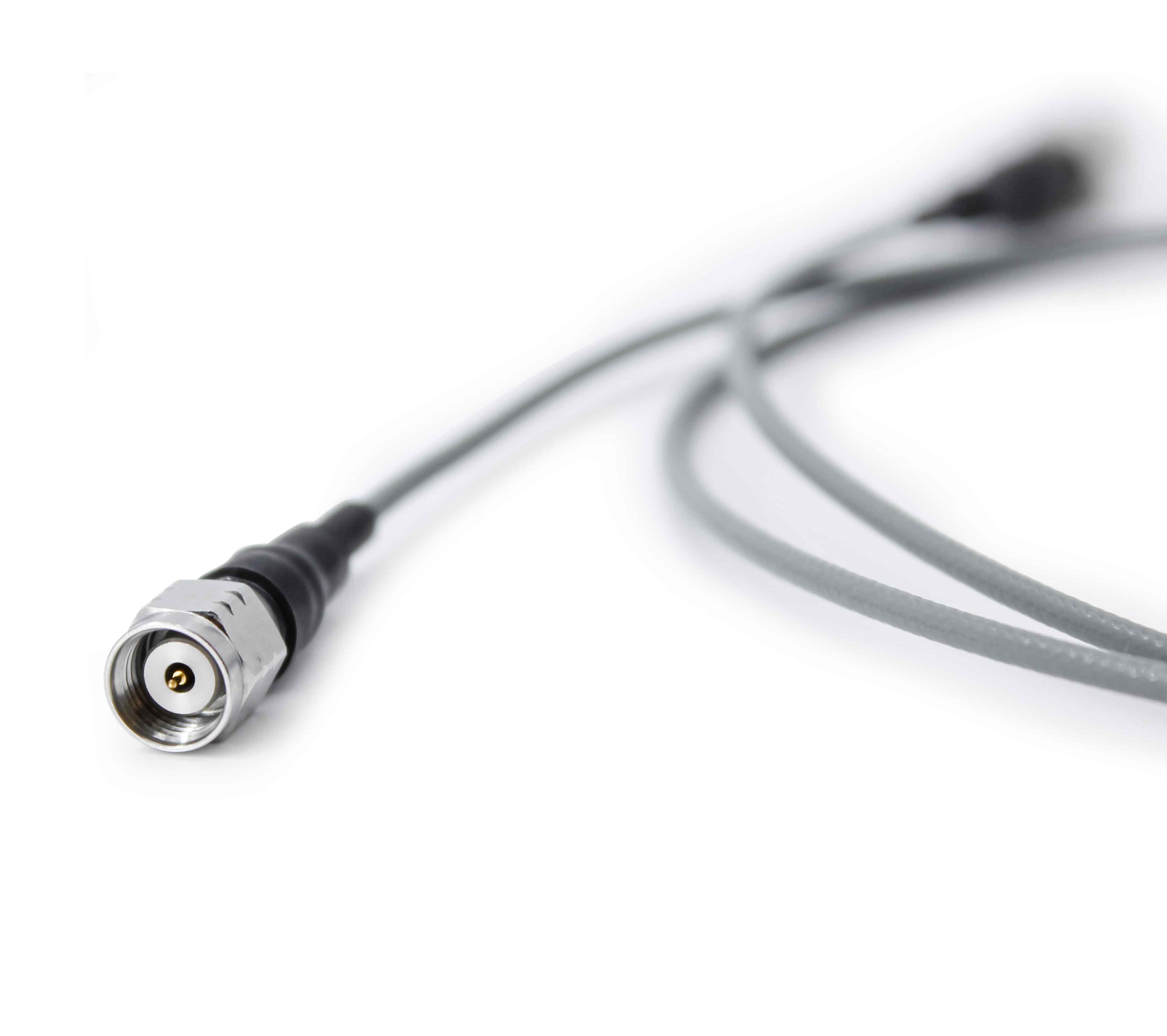

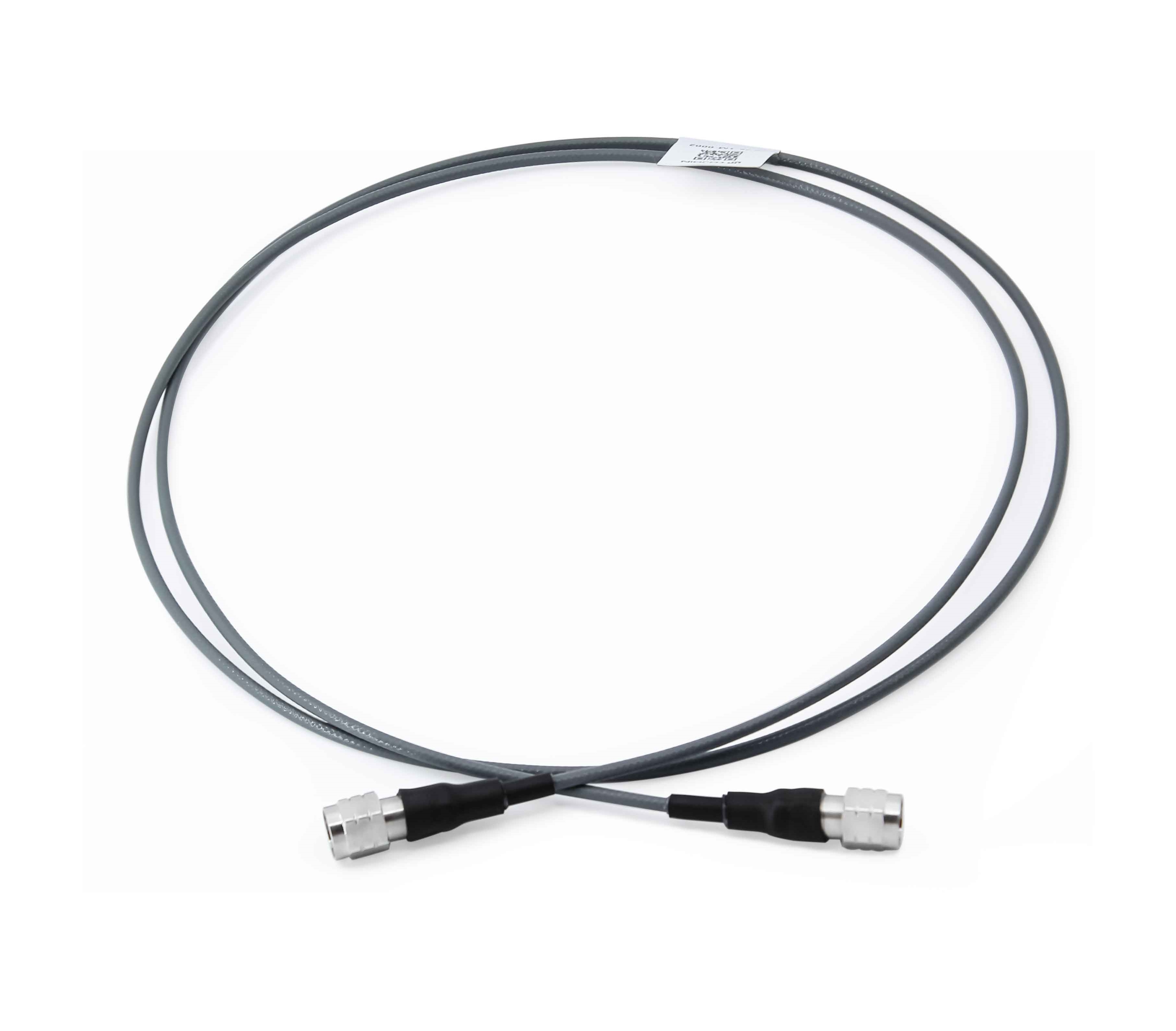

Product Appearance
|
|
|
Technical Specifications
| Product Model | 3506/1.85(M)(2)-1M |
| Product Code | 60.08.036.0066 |
| Length | 1M |
| Frequency | DC~67GHz |
| Impedance | 50Ω |
| Cable Type | 3506 Series |
| Connector 1 | 1.85mm Male |
| Connector 2 | 1.85mm Male |
| VSWR | ≤1.5 |
| Shielding Performance | ＜-100dB@1GHz |
| Power | 90W@2GHz |
Cable Parameters
| Center Conductor | Silver-plated copper |
| Insulation | ePTFE |
| Cable Jacket | FEP |
| Data Transfer Rate | 82% |
| Minimum Bend Radius | 6mm |
| Jacket Outer Diameter | 2.2mm |
Cable Specifications
| Model | Length(mm) | Insertion Loss≤（dB） | |||
| 10GHz | 20GHz | 40GHz | 60GHz | ||
| 3506-185M185M-2500 | 2500±20 | 5.74 | 8.25 | 11.98 | 15.02 |
| 3506-185M185M-2000 | 2000±20 | 4.70 | 6.73 | 9.75 | 12.21 |
| 3506-185M185M-1500 | 1500±15 | 3.65 | 5.21 | 7.52 | 9.4 |
| 3506-185M185M-1200 | 1200±12 | 3.02 | 4.29 | 6.18 | 7.71 |
| 3506-185M185M-1000 | 1000±10 | 2.61 | 3.69 | 5.29 | 6.59 |
| 3506-185M185M-600 | 600±10 | 1.77 | 2.47 | 3.50 | 4.34 |
| 3506-185M185M-500 | 500±10 | 1.56 | 2.17 | 3.06 | 3.78 |
