GSFL405
GSFL405
detailed information
dBGSFL405/SMA-JB2-6(2) Coaxial Cable

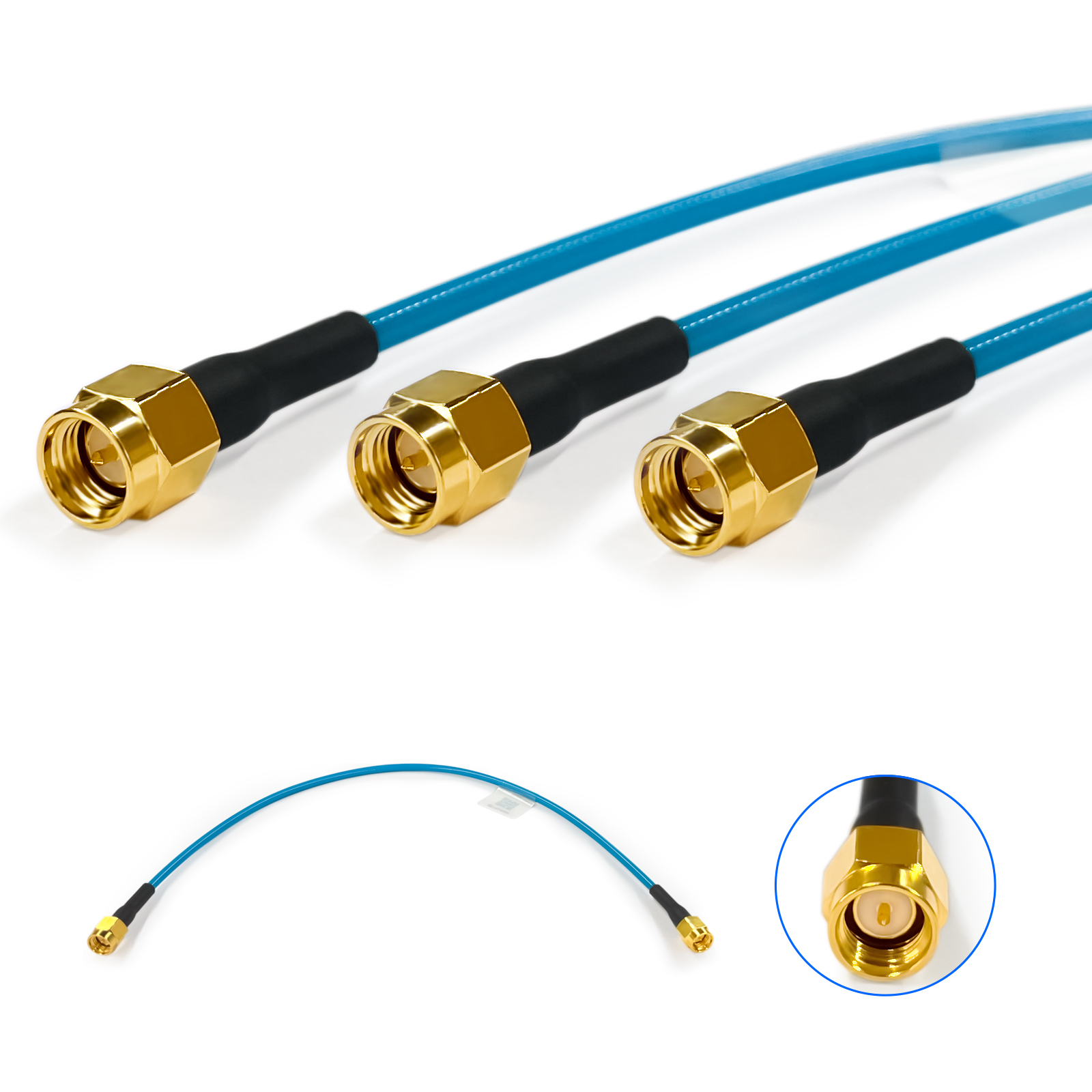

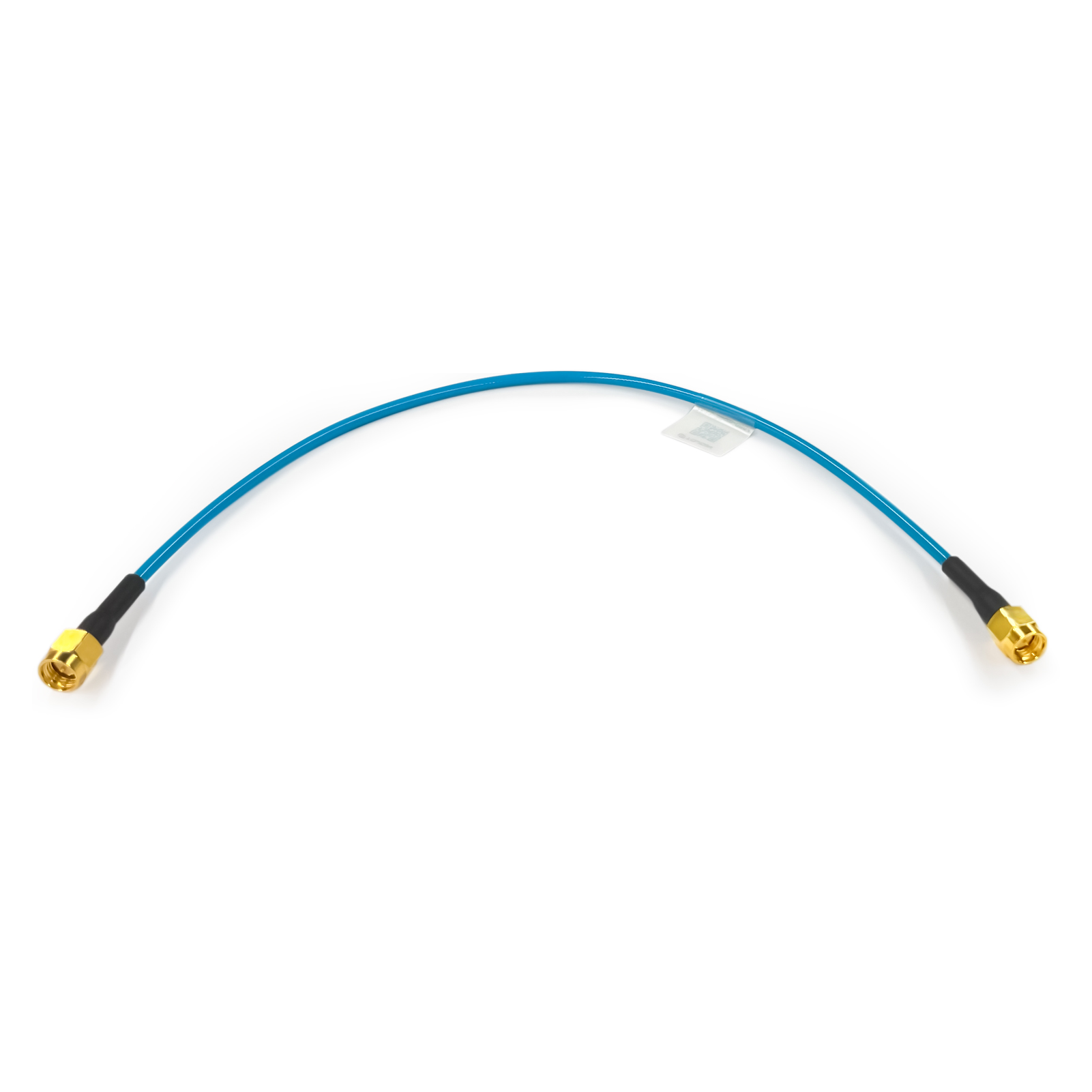

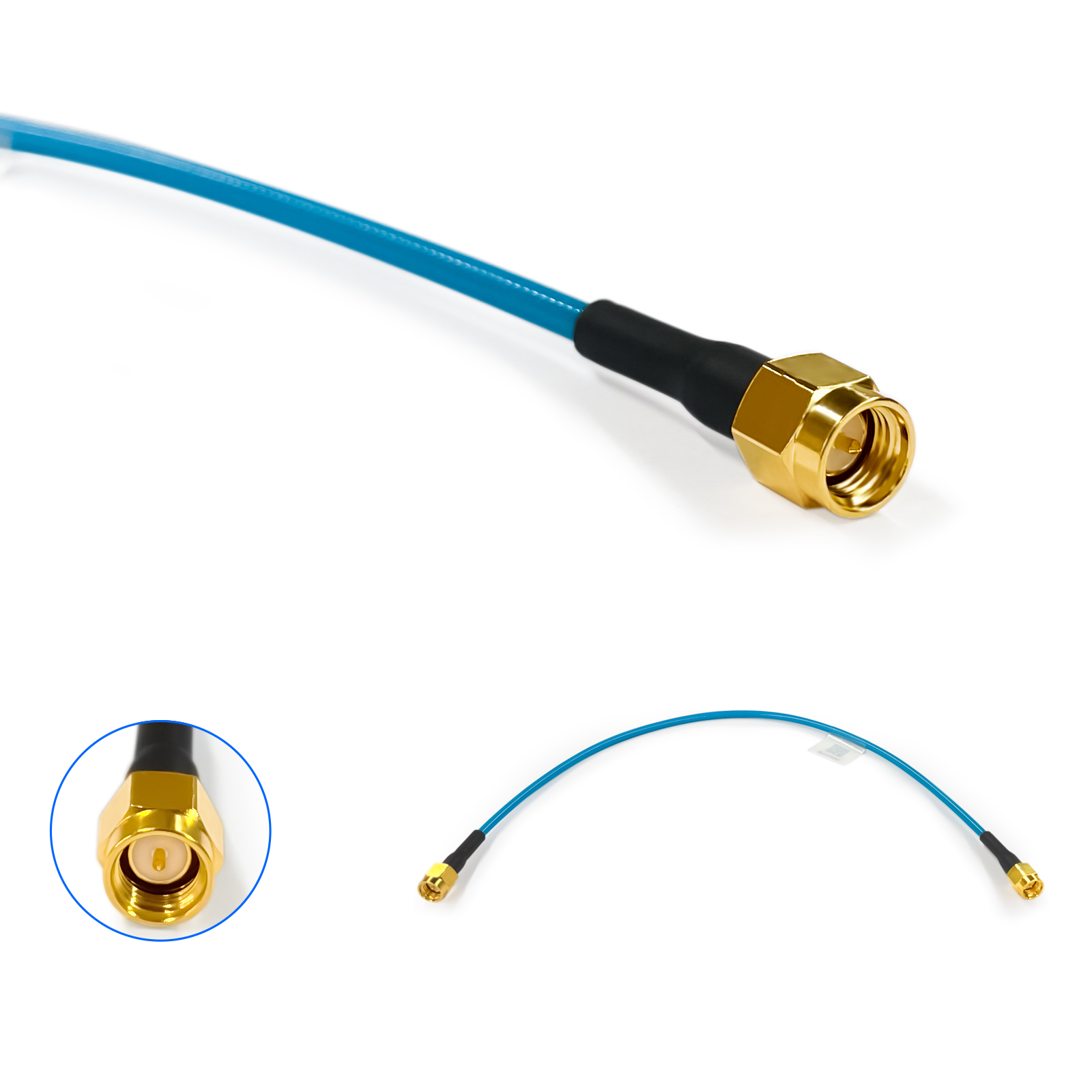

Product Appearance
|
|
|
Technical Specifications
| Product Model | GSFL405/SMA2-JB2-6(2)-30cm |
| Product Code | 60.08.054.0012 |
| Length | 30cm |
| Cable Type | GSFL405(Blue) |
| Connector Type | SMA Male-SMA Male |
| Impedance | 50Ω |
| Frequency | DC~6GHz |
| VSWR | ≤1.2 |
| Insertion Loss | ≤1.2dB |
| Operating Temperature | -10℃~85℃ |
| Material | Copper Alloy |

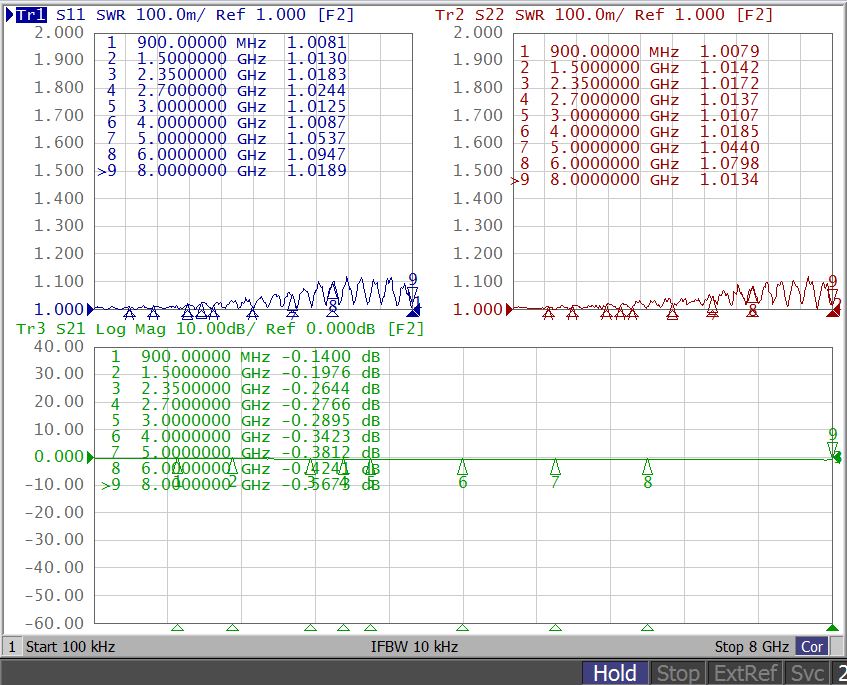

Test Report
GSFL405/SMA2-JB2-6(2)-30cm
