GSS402/SMA-J402(2) Coaxial Cable

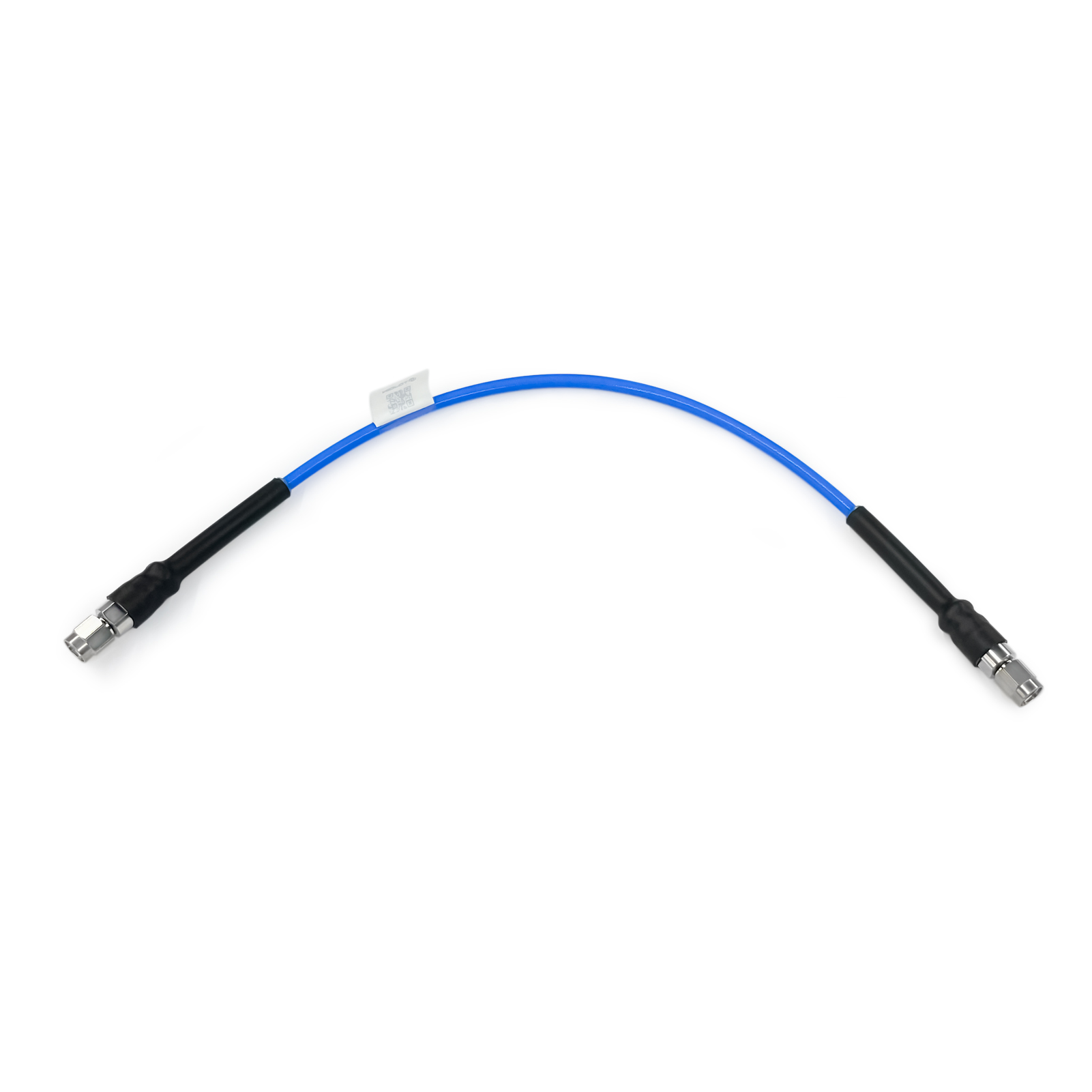

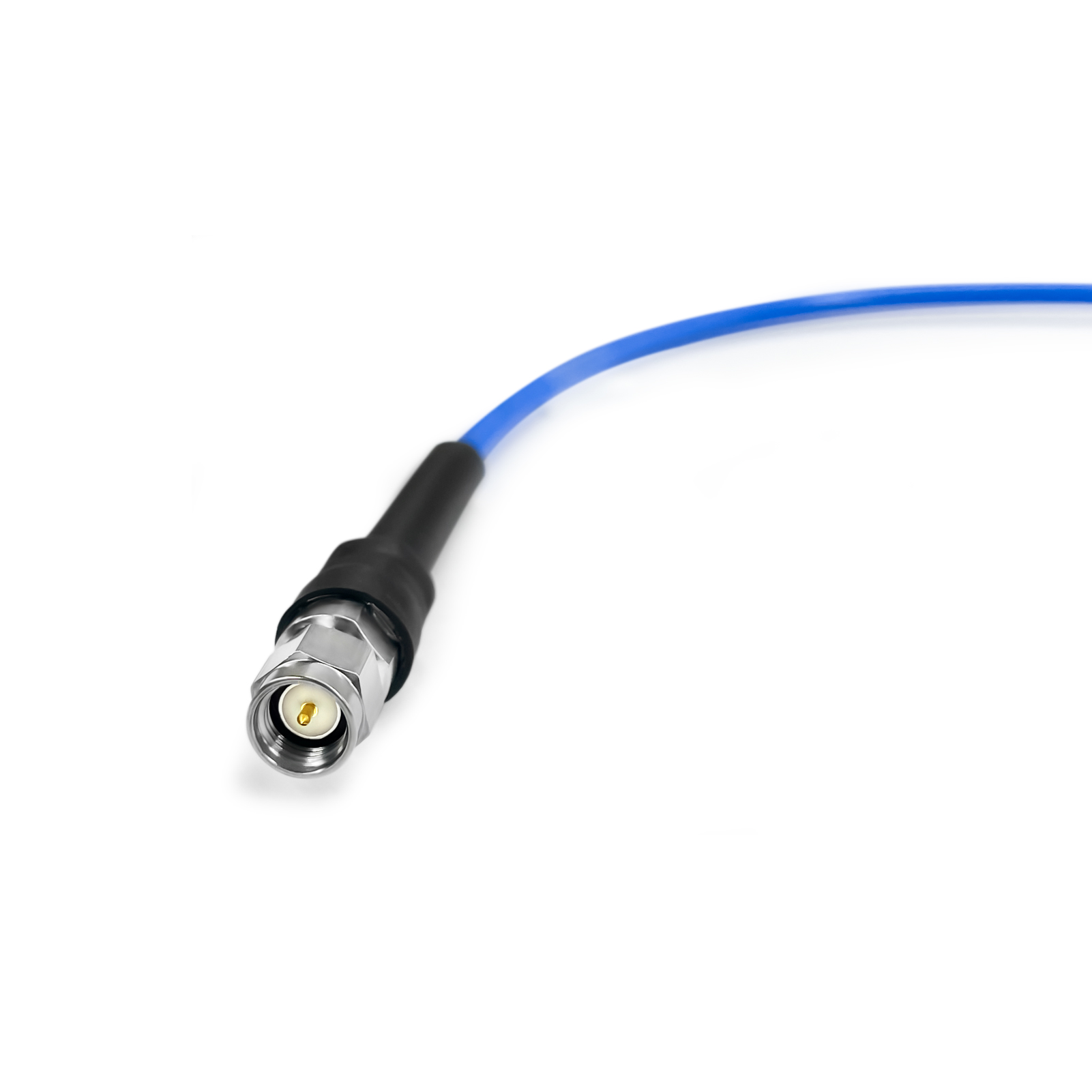

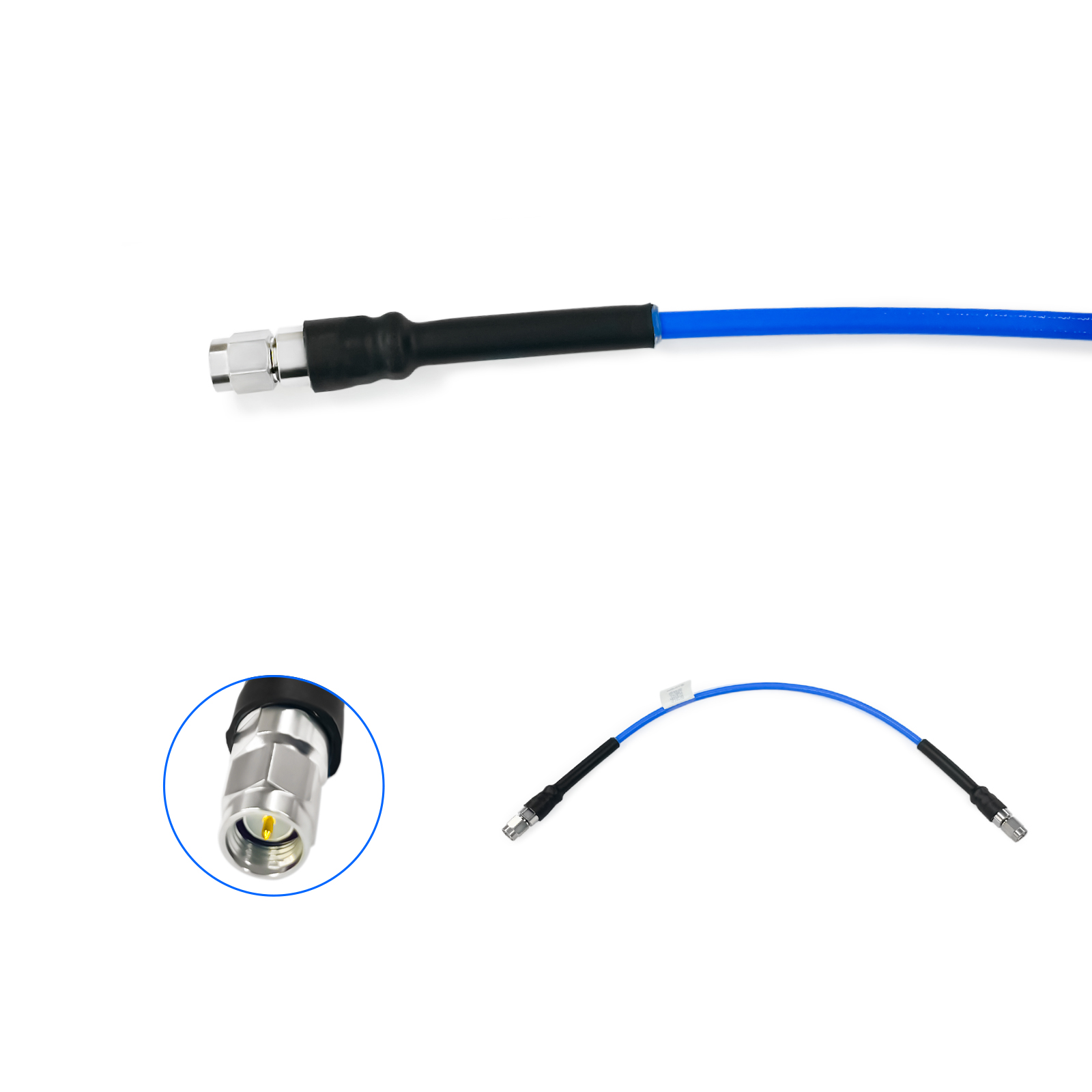

Product Appearance


Technical Specifications

Product ModelGSS402/SMA-J402(2)-30CM
Product Code60.08.012.0013
Length30CM
Cable TypeGSS402
Connector TypeSMA Male-SMA Male
Impedance50Ω
FrequencyDC~18GHz
VSWR≤1.3
Insertion Loss≤1.2dB
Operating Temperature-40℃~125℃
Bending Radius＞30mm
Material Copper Alloy

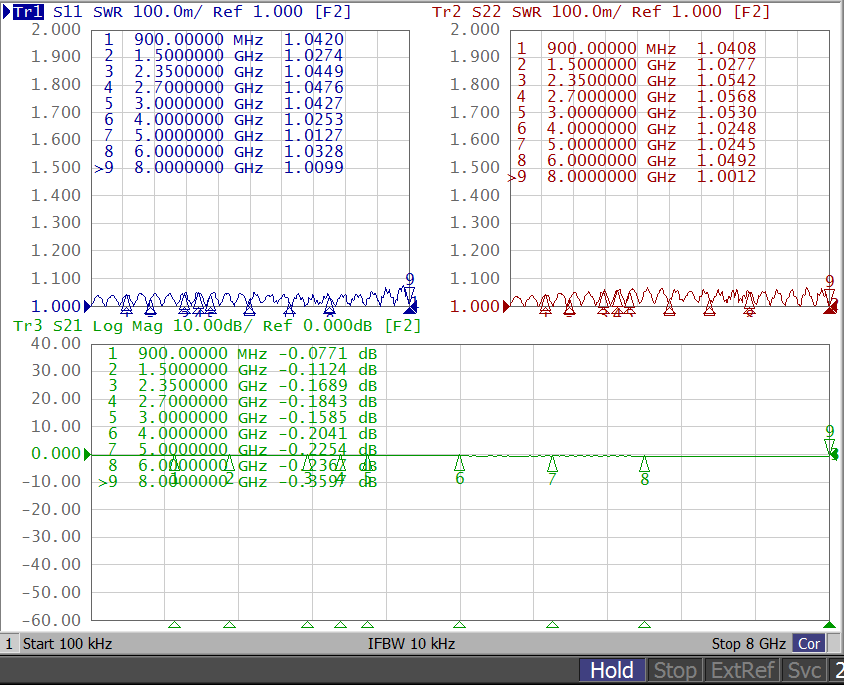

Test Report

GSS402/SMA-J402(2)-30CM



Note: Actual specifications shall prevail. Current testing is based on sample data. TOJOIN reserves the right of final interpretation.
