Product Appearance

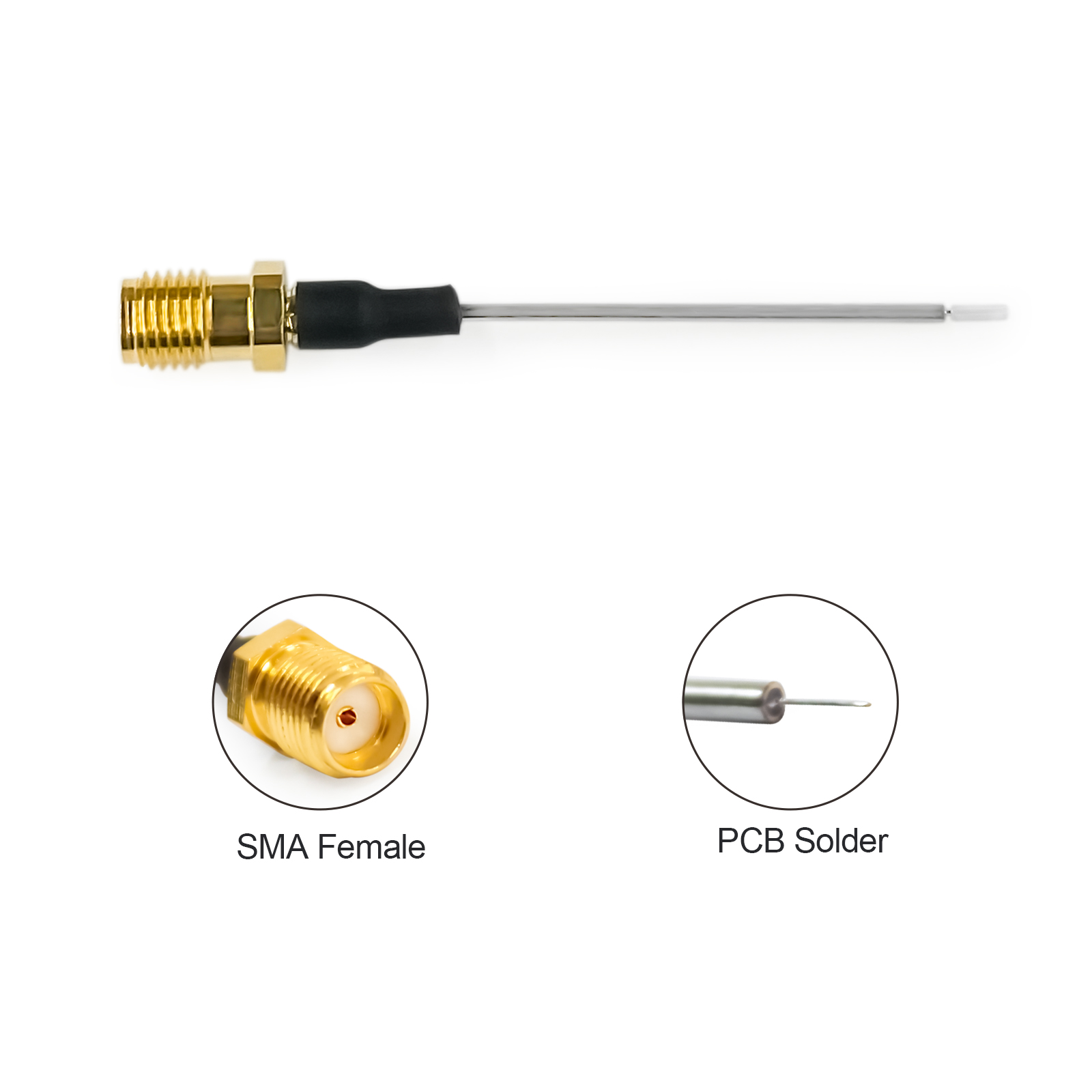

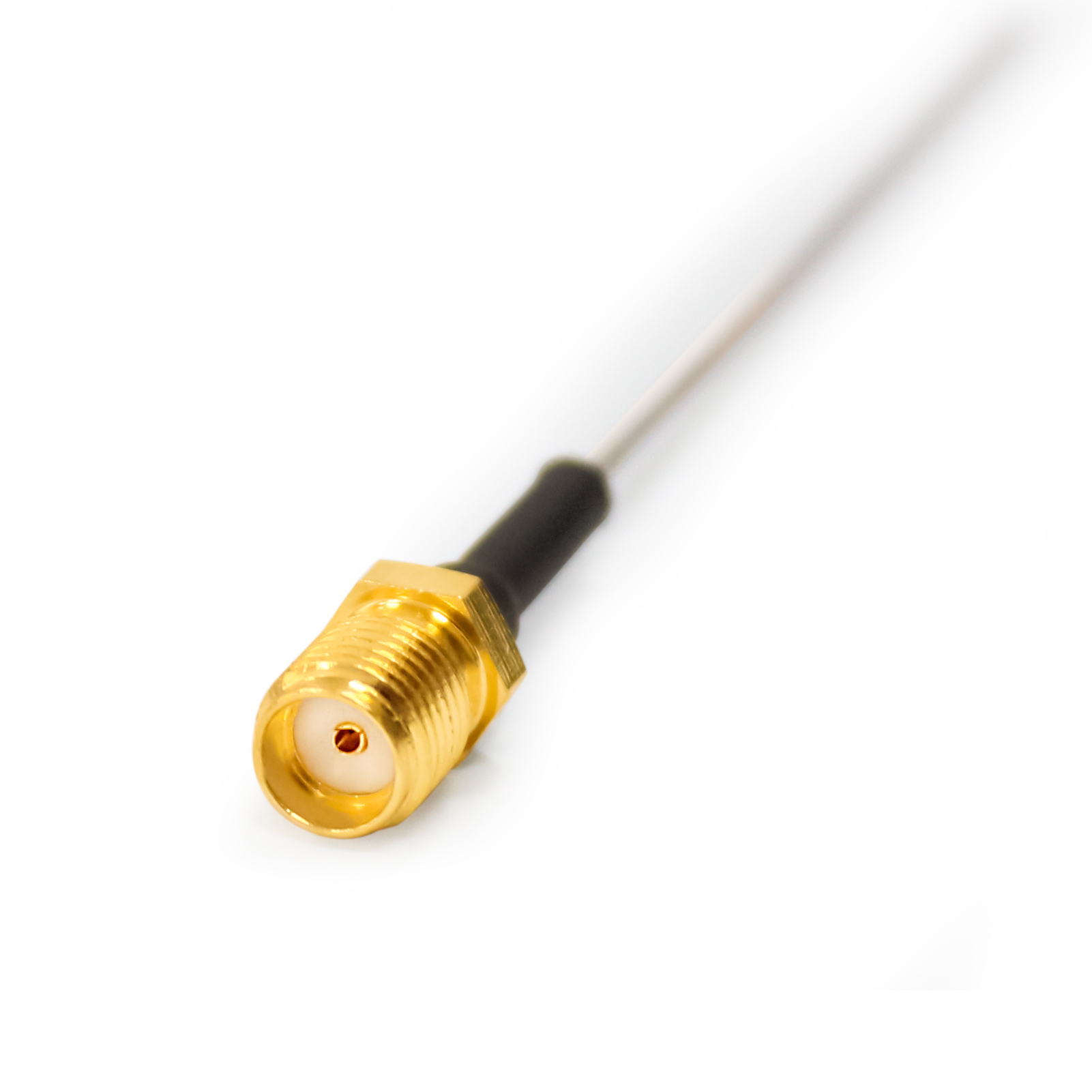

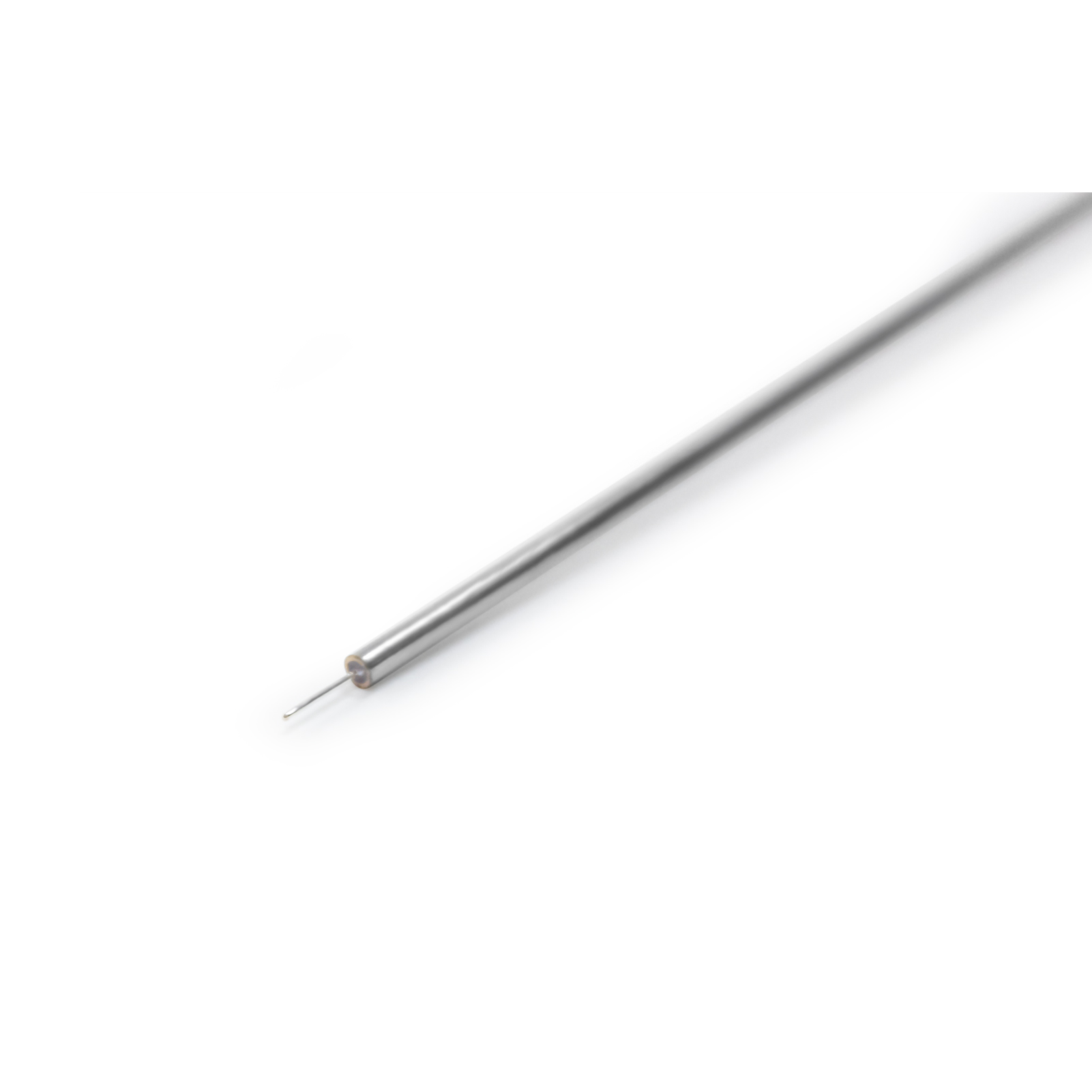

047/SMA-K047-5CM
047/SMA-K047-10CM
|
|
|

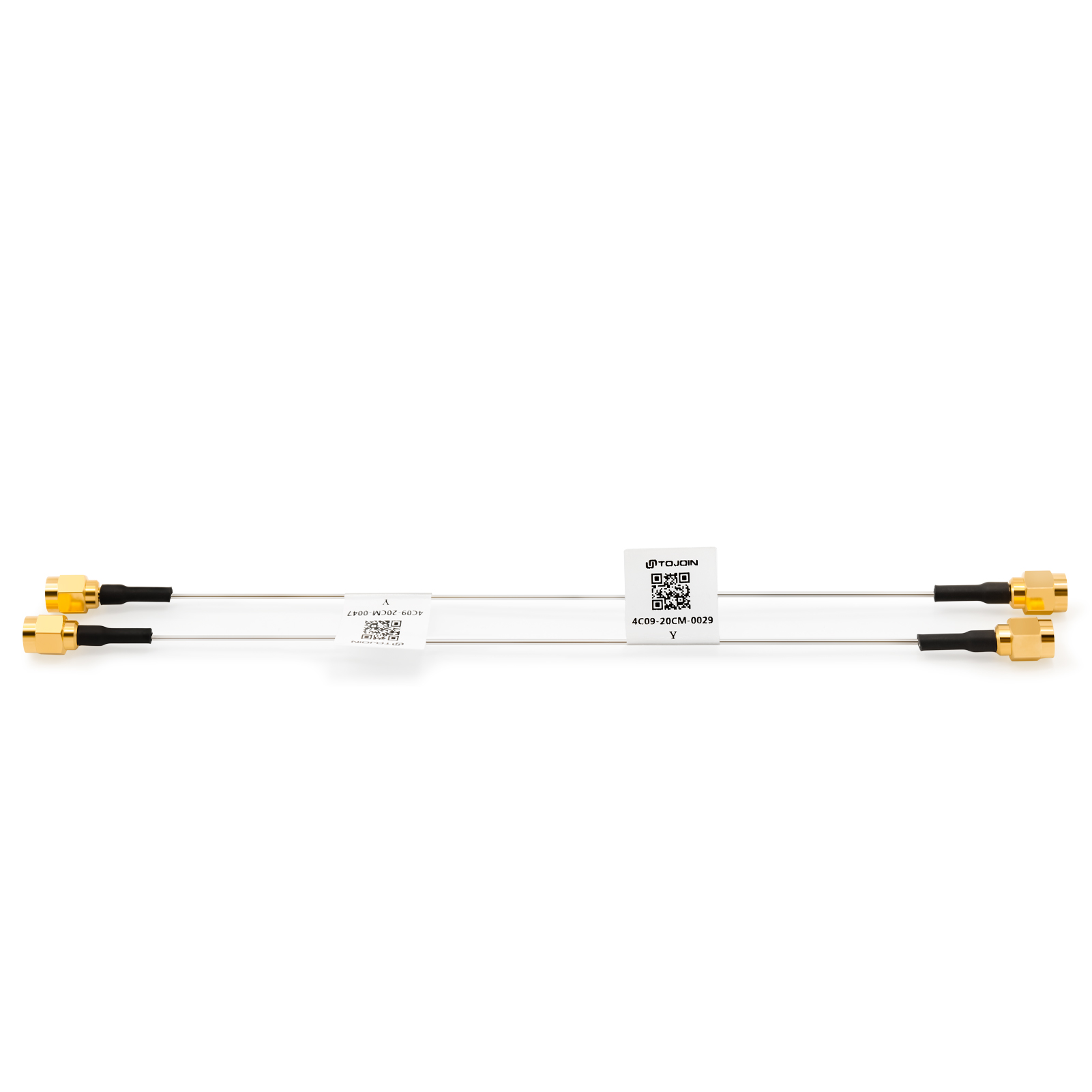

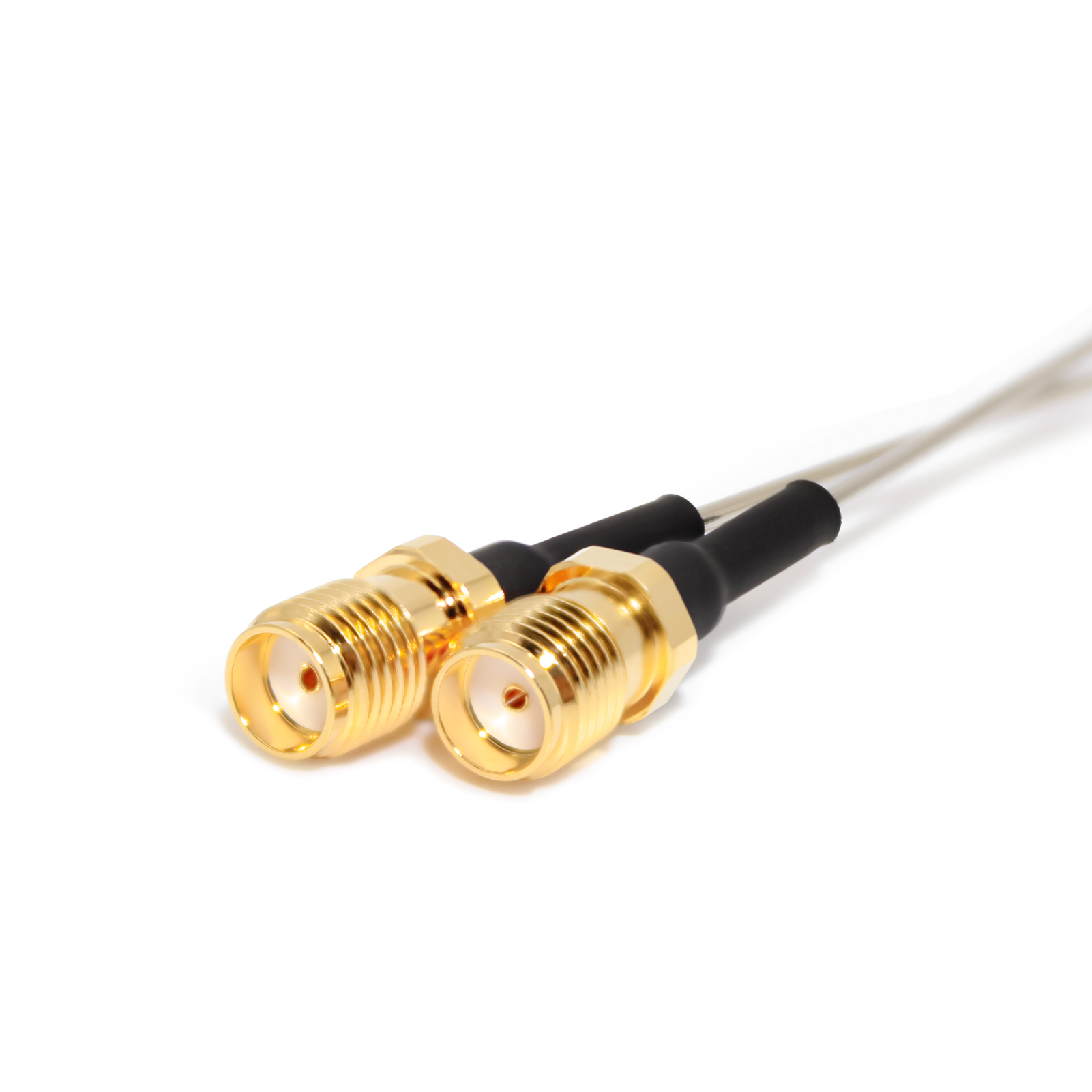

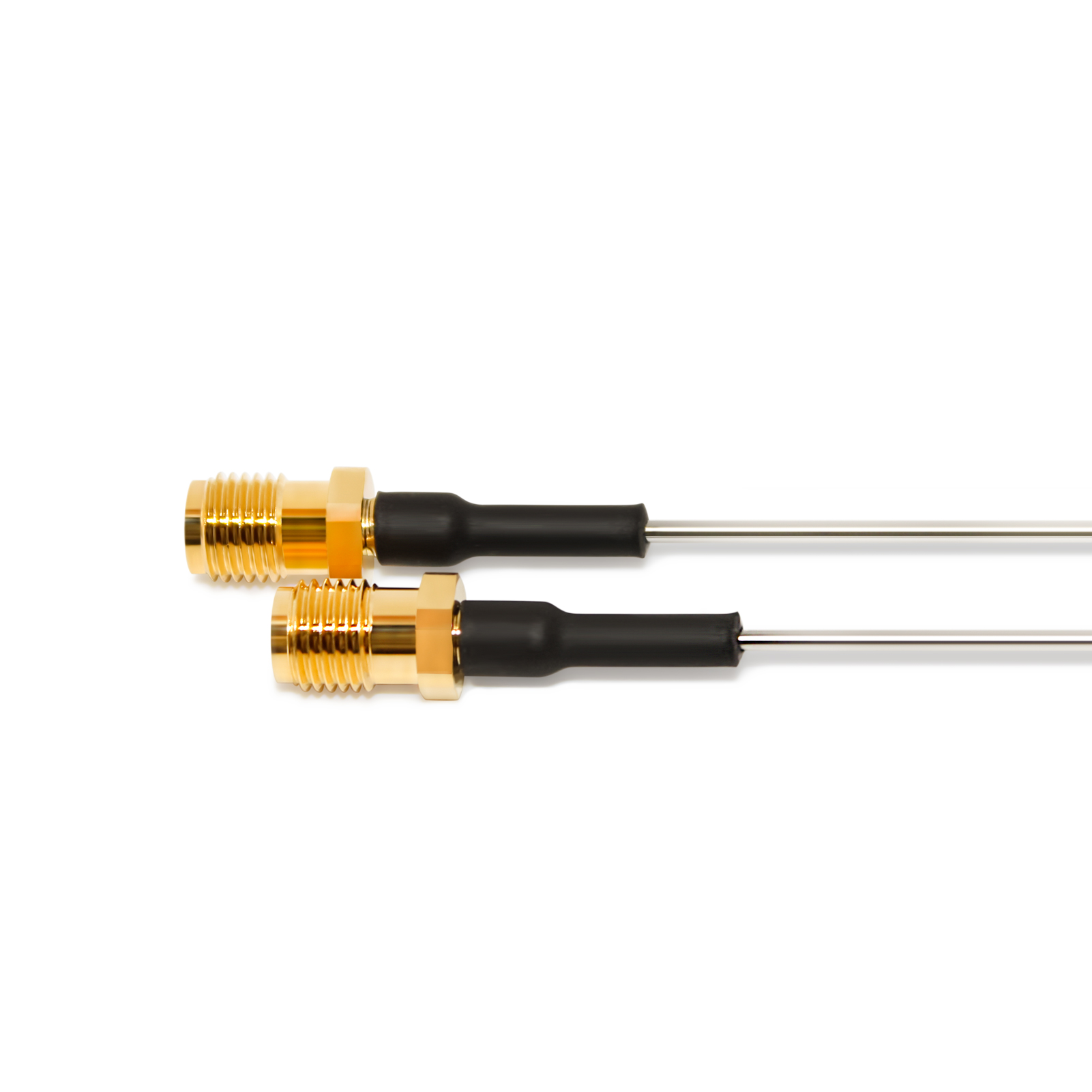

SMT680-047/SMA-K047(2)-20CM
|
|
|

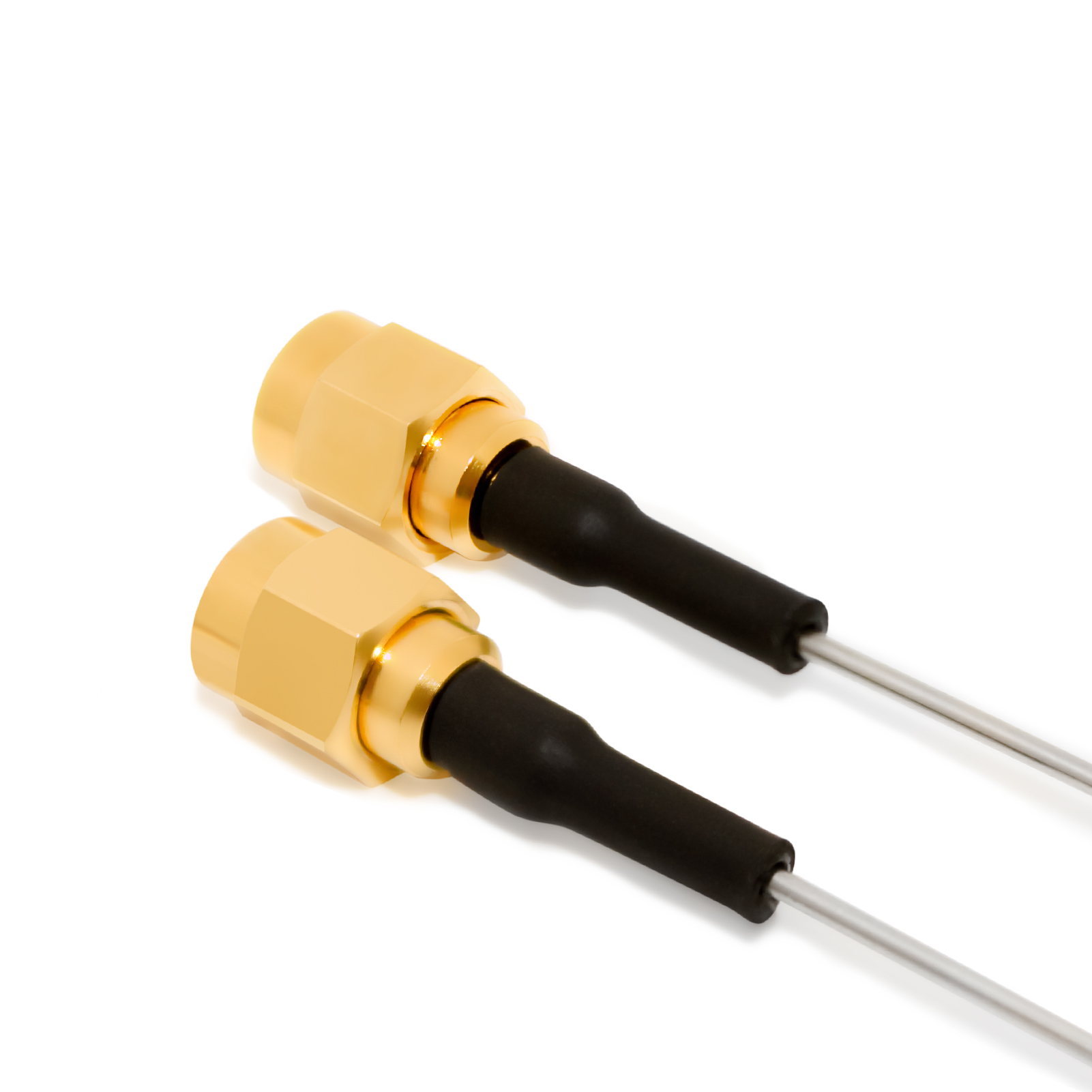

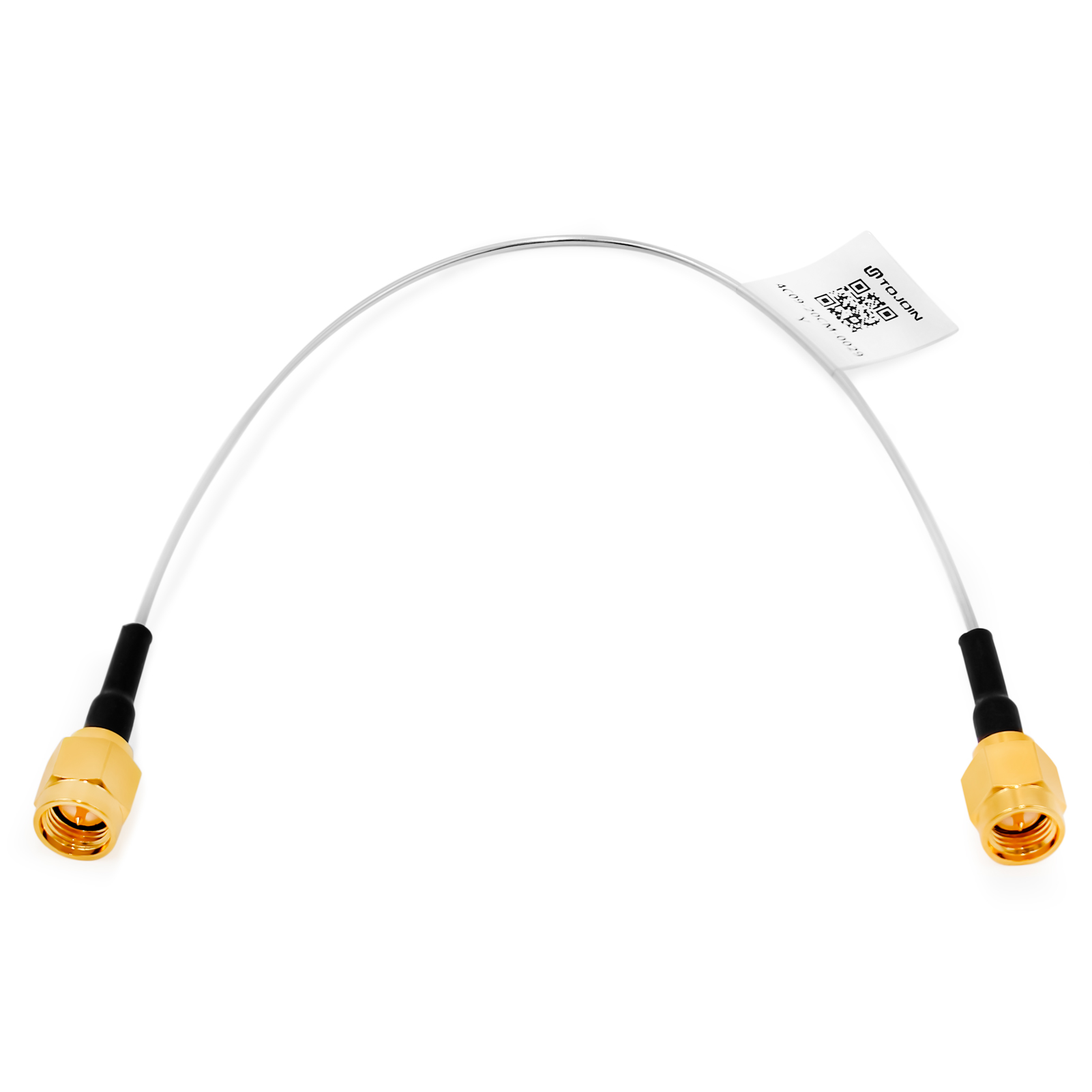

SMT680-047/SMA-J047-1(2)-20CM
|
|
|
Technical Specifications
| Product Model | 047/SMA-K047-5CM | 047/SMA-K047-10CM | SMT680-047/SMA-K047(2)-20CM |
| Product Code | 60.08.050.0016 | 60.08.050.0002 | 60.08.050.0006 |
| Length | 5CM | 10CM | 20CM |
| Cable Type | 047 Semi-rigid Cable | 047 Semi-rigid Cable | 047 Semi-rigid Cable |
| Connector Type | SMA Female-PCB Solder | SMA Female-PCB Solder | SMA Female-SMA Female |
| Impedance | 50Ω | 50Ω | 50Ω |
| Frequency | DC~12.5GHz | DC~12.5GHz | DC~6GHz |
| VSWR | ≤1.25 | ≤1.3 | ≤1.2 |
| Insertion Loss | ≤0.6dB | ≤1.5dB | ≤0.8dB |
| Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Soldering Temperature | 350°C: 3-4 seconds 270°C: 10-15 seconds Excessive high temperature/soldering time may cause outer conductor cracking | 350°C: 3-4 seconds 270°C: 10-15 seconds Excessive high temperature/soldering time may cause outer conductor cracking | - |
