2.92MM adapter series

2.92MM adapter series

detailed information

Product Appearance

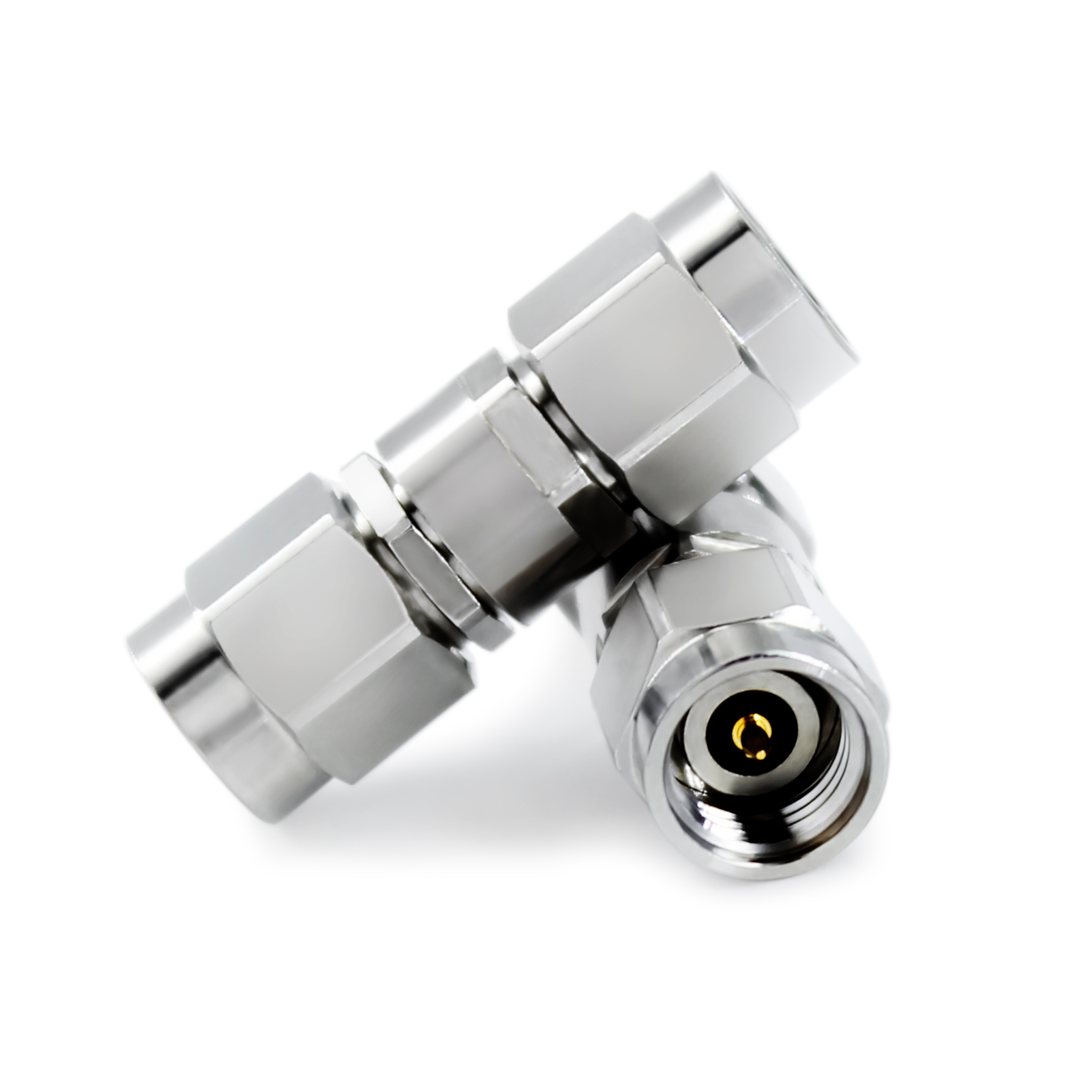

2.92MM-JJ

00.00.001.0614

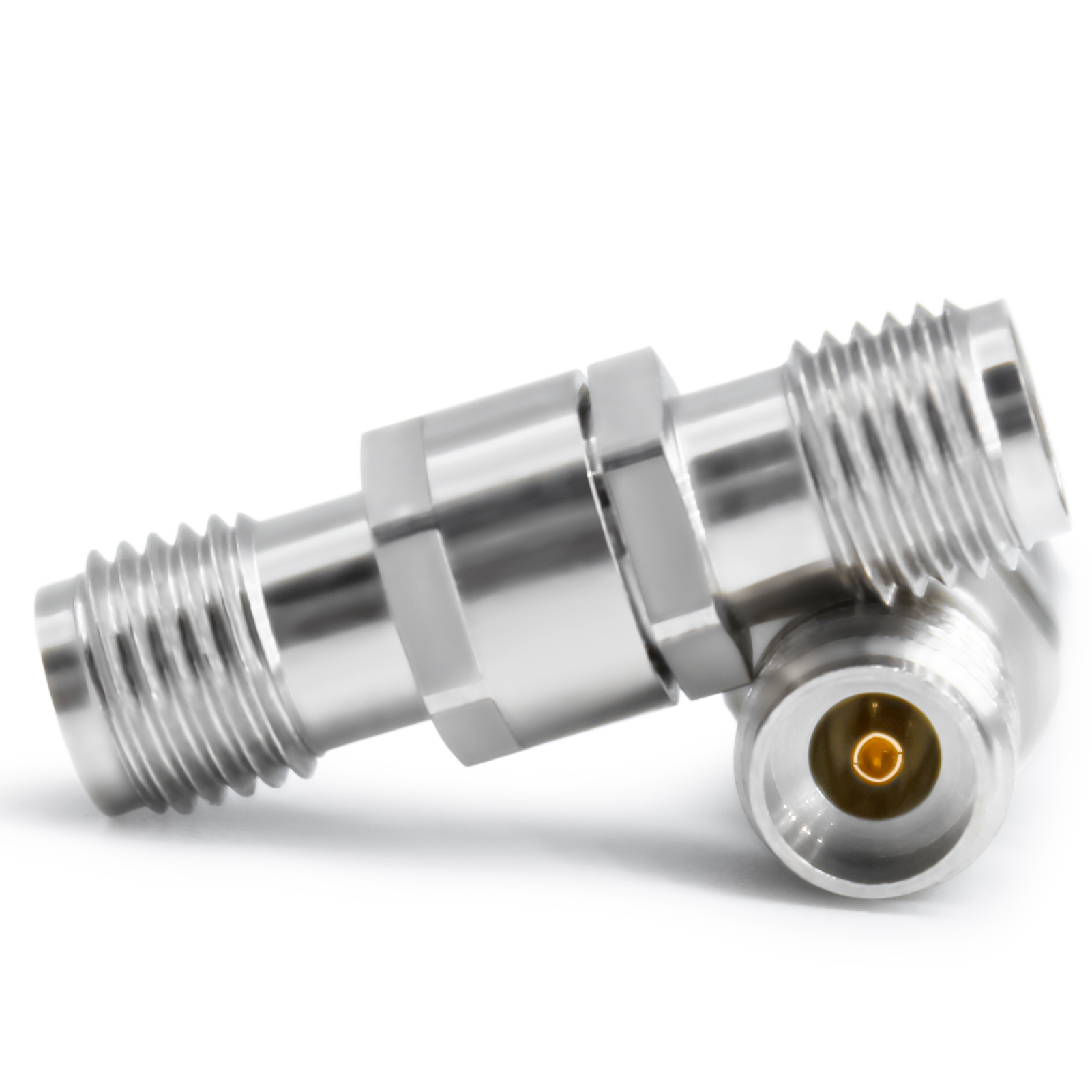

2.92MM-KK

00.00.001.0626

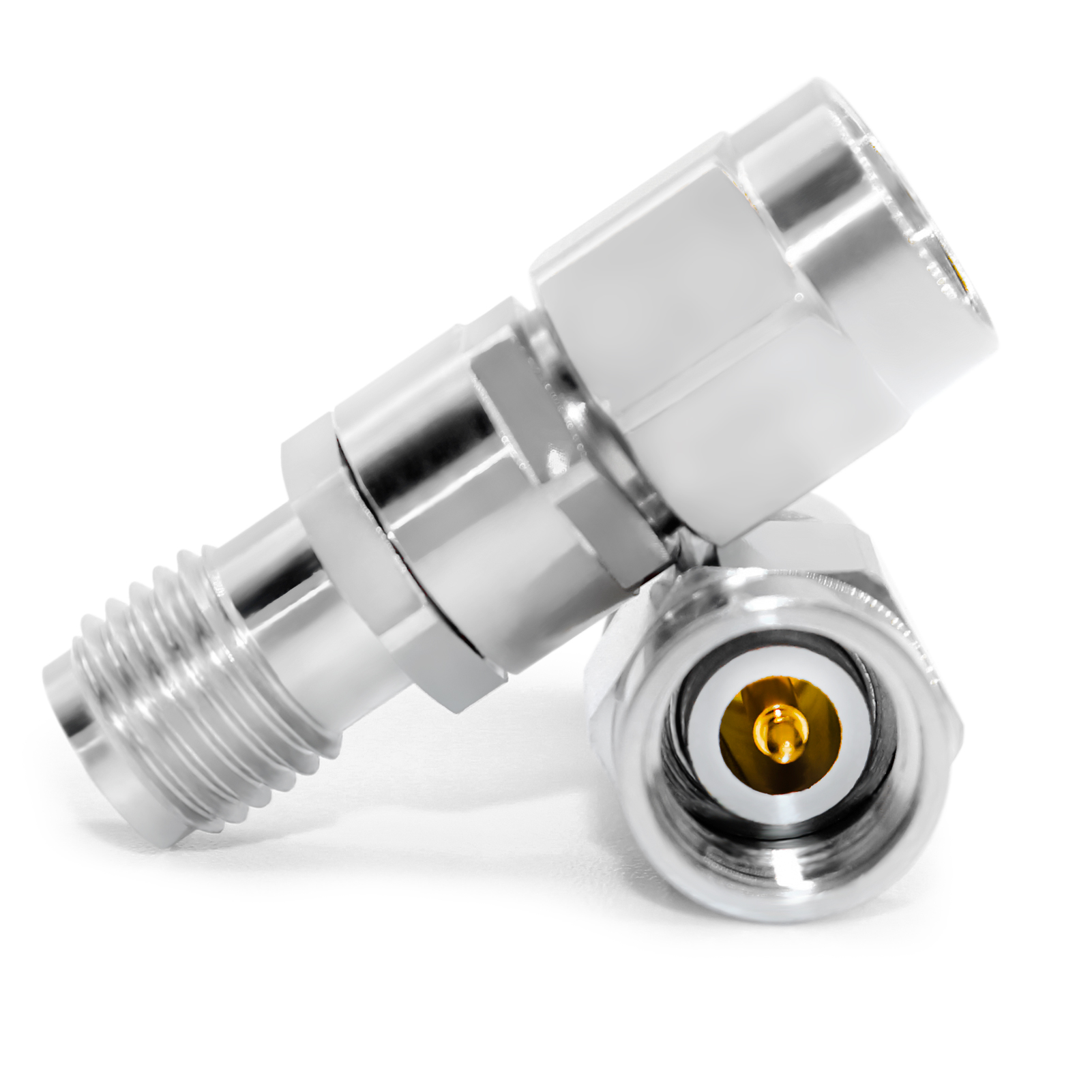

2.92MM-JK

00.00.001.0627


Technical Specifications

Product Model2.92-JJ2.92-KK2.92-JK
Product Code00.00.001.061400.00.001.062600.00.001.0627
Connector Type2.92MM Male to Male2.92MM Female to Female2.92MM Male to Female
Impedance50Ω
50Ω50Ω
Frequency RangeDC~40GHz
DC~40GHzDC~40GHz
VSWR≤1.3
≤1.25≤1.3
Insertion Loss≤0.3dB≤0.4dB≤0.3dB
Durability500 times（min.）
500 times（min.）500 times（min.）
Inner ConductorGold-plated beryllium copperGold-plated beryllium copperGold-plated beryllium copper
Outer ConductorStainless steel with anti-rust treatmentStainless steel with anti-rust treatmentStainless steel with anti-rust treatment
Dielectric MaterialPEIPEIPEI
