G1414 Soundproof Enclosure
G1414 Soundproof Enclosure
G1414 Soundproof Enclosure/Manual Soundproof Room
Working dimensions: 950 (W) × 950 (D) × 950 (H) / 200 Hz–20 kHz / Internal sound insulation: ≤40 dB

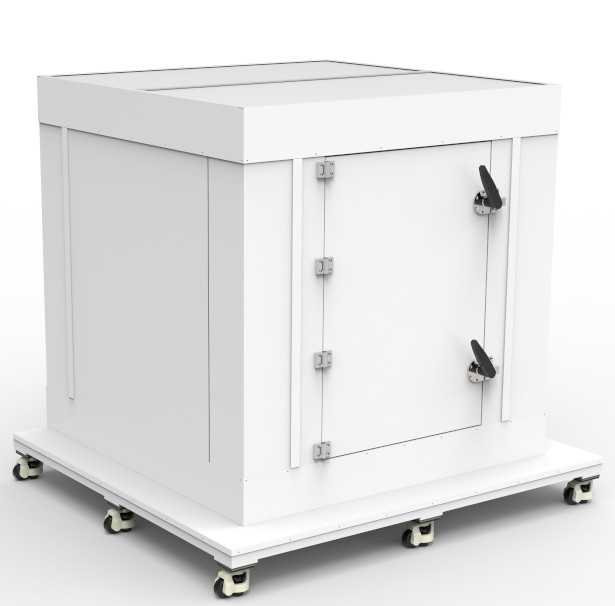

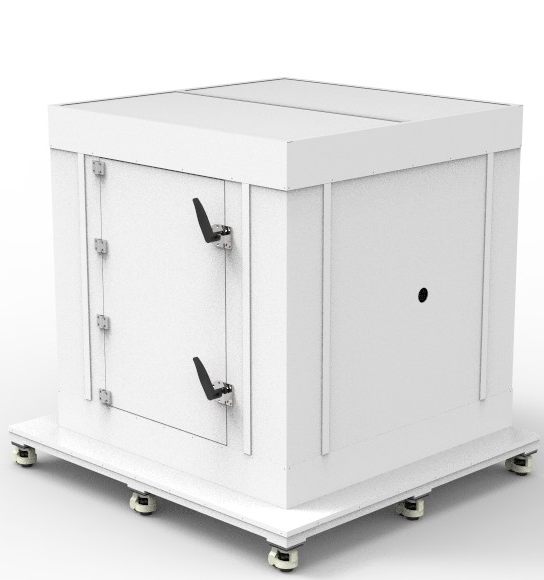

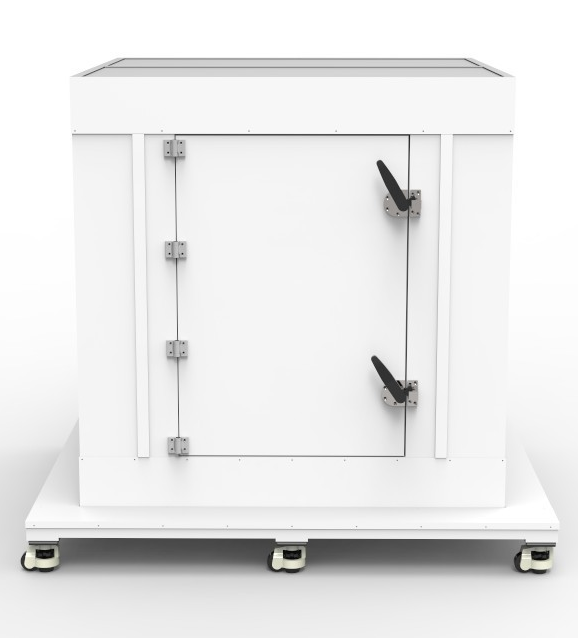

Product Appearance
Model: G1414
P/N：60.00.400.0180
 |  |  |
 |  |
Product Overview
The G1414 is an economical manual anechoic chamber suitable for building test solution platforms for modules and end devices in fields such as smartphones, Wi-Fi, Bluetooth, smart grid equipment, automotive electronics, and smart home systems.
This anechoic chamber is manufactured through more than a dozen rigorous processes, including laser CNC cutting of high-quality panels from leading manufacturers, sheet metal forming, electroplating, electrostatic spray painting and baking, assembly and debugging, aging, and testing and inspection. It offers the advantages of high sound absorption efficiency, a reliable structure, and stable performance.
For communication, corresponding I/O data interfaces can be configured according to actual needs, and communication feed-through holes can be provided to route cables into the chamber.
Big Deal
The working dimensions of 950 (W) × 950 (D) × 950 (H) meet the testing requirements for most smart mobile devices on the market.
It utilizes a new type of sound-absorbing material that absorbs and dissipates sound energy through multi-layer composite materials, reducing the likelihood of false readings caused by environmental factors.
The comprehensive design of communication cable pass-through holes makes setting up your test platform easier, more convenient, and faster.
Applications
Develops modules for sectors such as smartphones, Wi-Fi, Bluetooth, smart grid devices, automotive electronics, and smart home systems.
End-device testing solution platform.

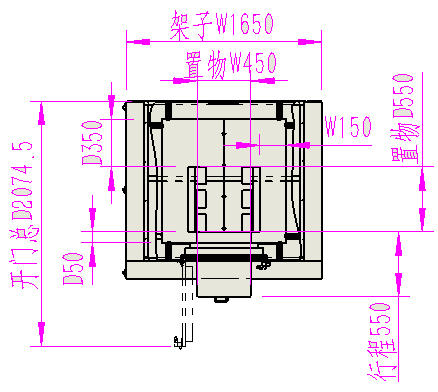

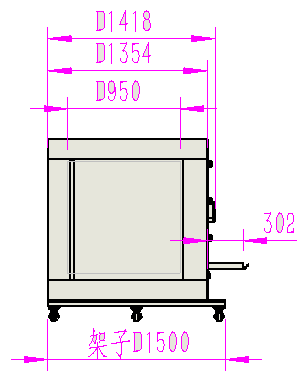

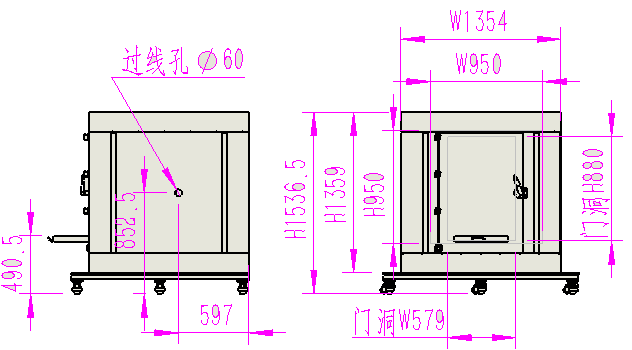

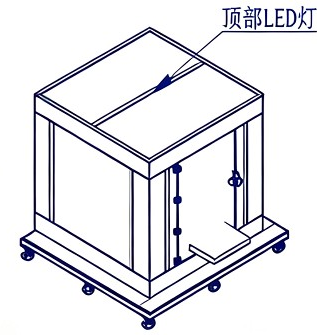

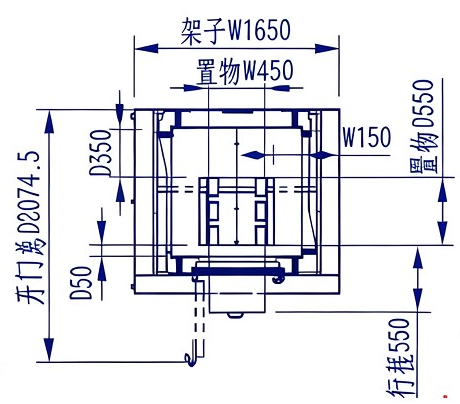

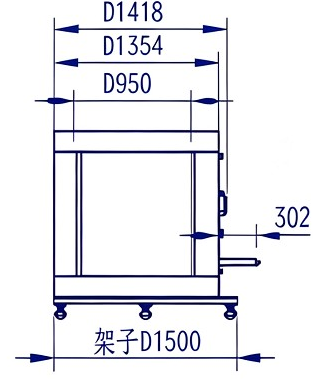

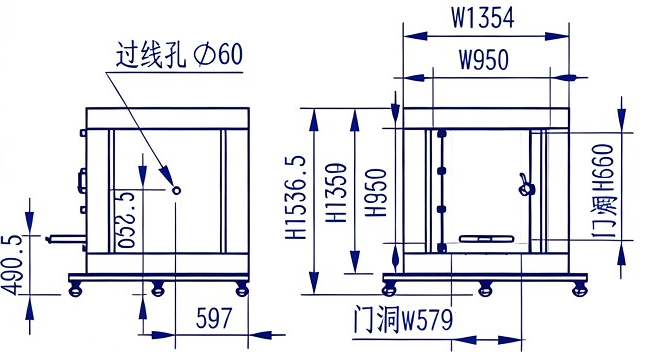

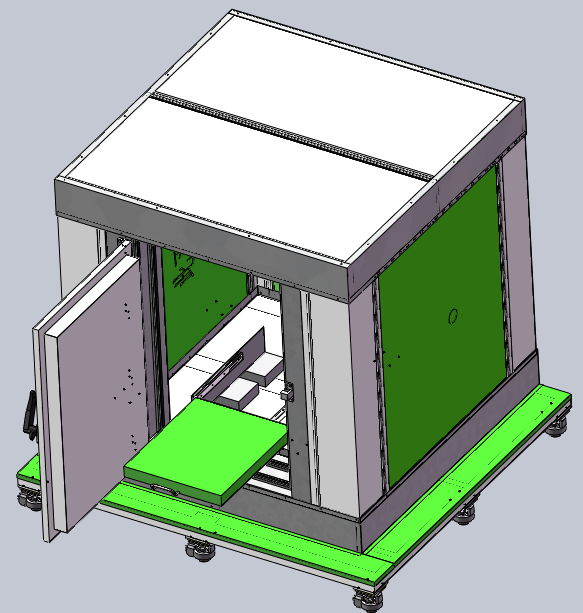

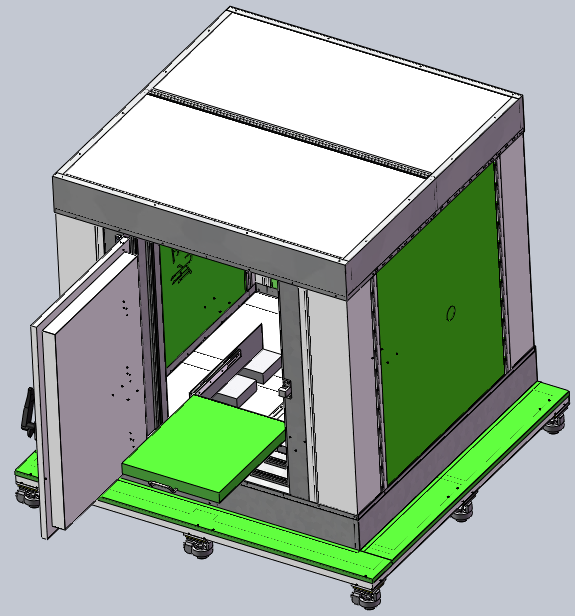

Exterior View (Unit: mm)
| |
|
|
| |
Technical Parameter:
| Working Frequency(GHz) | 200Hz~20KHz |
| Enclosure Isolation（dB） | outside≥80 dB, inside≤40 dB |
| Interface Type | Customers can choose a combination of DB9, USB 2.0, USB 3.0, SMA, RJ45, BNC, DC, and AC connectors based on their actual usage; other connectors require customization |
| Numbers of Filters(pcs) | φ60mm cable entry hole |
| Control Method | Manual |
| Working Temperature(℃) | 23±5 |
| Working Dimensions(mm) | 950(W)*950(D)*950(H) |
| Overall Dimensions（mm） | 1354(W)*1418(D)*1537(H) |
| Weight(kg) | Approximately 485 |
| Material | Galvanized Sheet + AL5052 |
| Appearance of color | Computer white (customizable) |
Test Report
| Testing Equipment | Sound Level Meter |
| Instrument Number | 381929 |
| Frequency Range | 10 Hz–16 kHz |
| Instrument Type | AWA5661 |
| Microphone Type | AWA14411 |
| Measuring Range | High range: 37–132 dB; Low range: 17–112 dB |
| Center Frequency (Hz) | External Sound Level (dB) | Internal Sound Level (dB) | Sound Insulation (dB) |
| 30 | 70 | 48 | 22 |
| 63 | 75 | 41 | 34 |
| 125 | 73 | 37 | 36 |
| 500 | 78 | 27 | 51 |
| 1000 | 75 | 27 | 48 |
| 2000 | 84 | 27 | 57 |
| 4000 | 84 | 27 | 57 |
| 8000 | 81 | 27 | 54 |
| 16000 | 73 | 27 | 46 |
*The information in this document is intended to assist users in product selection. Users are advised to conduct tests to determine whether the product meets the requirements of the corresponding application scenarios. Product specifications and descriptions herein are subject to change without prior notice.
