DB25-1000PF Male Filter connector
DB25-1000PF Male Filter connector
detailed information

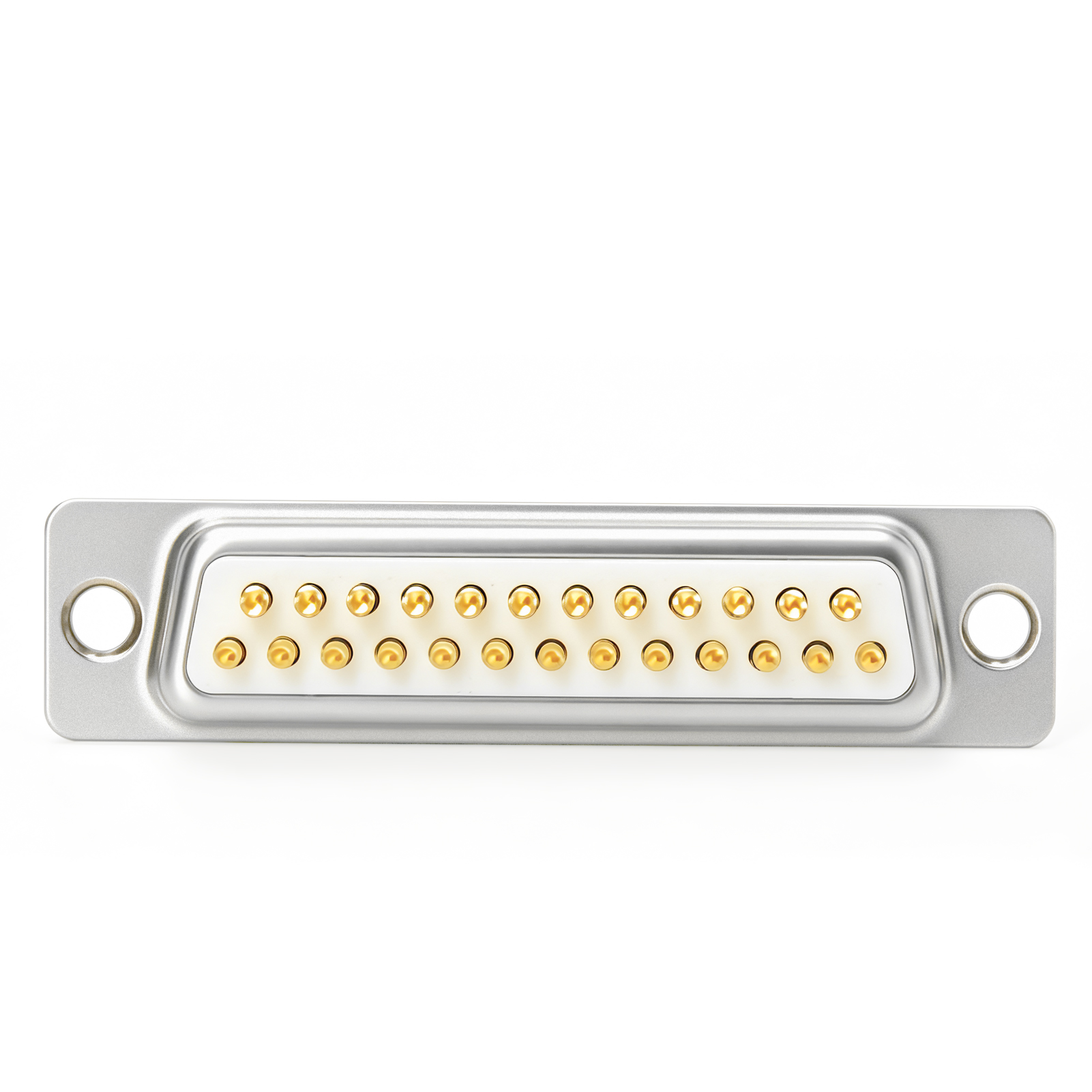

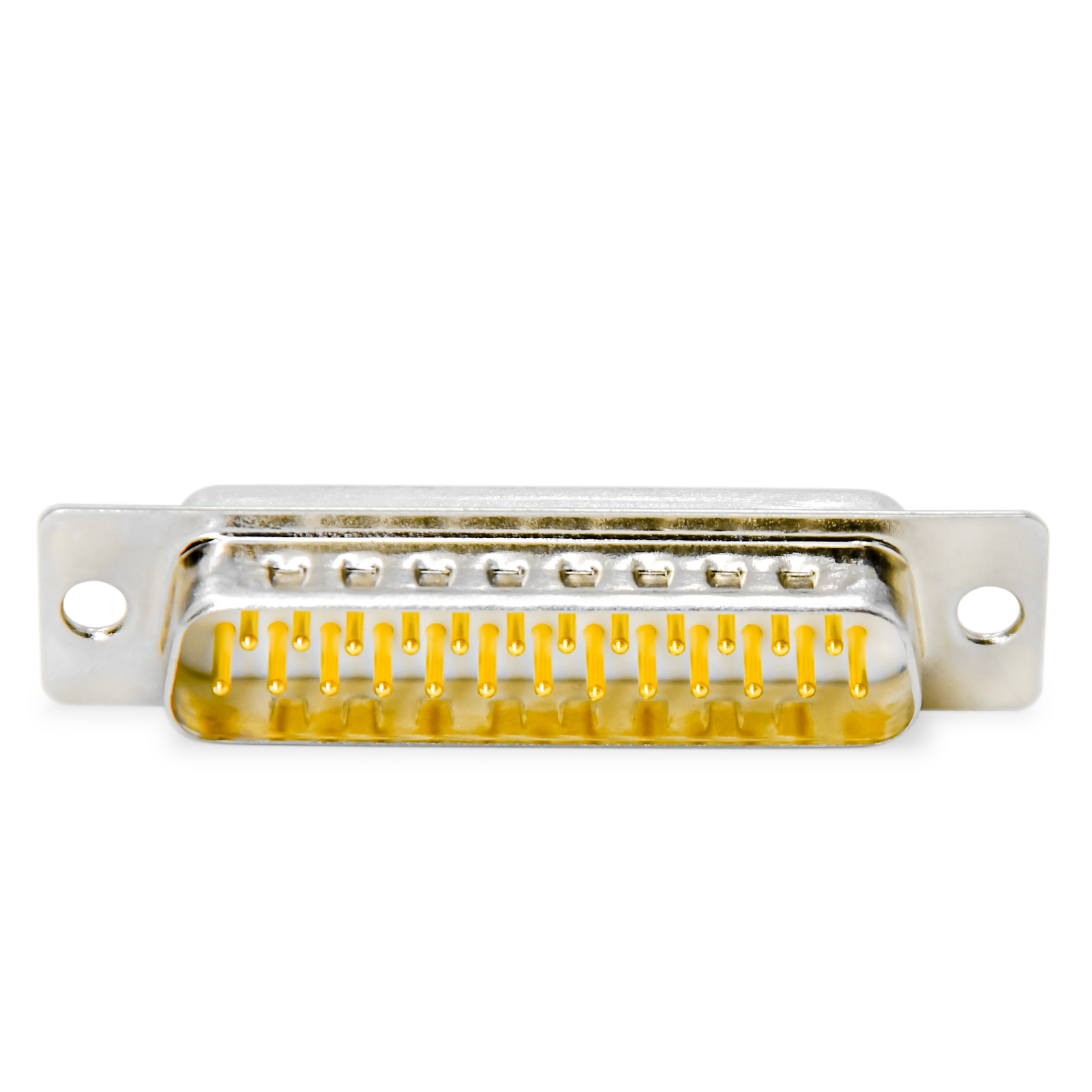

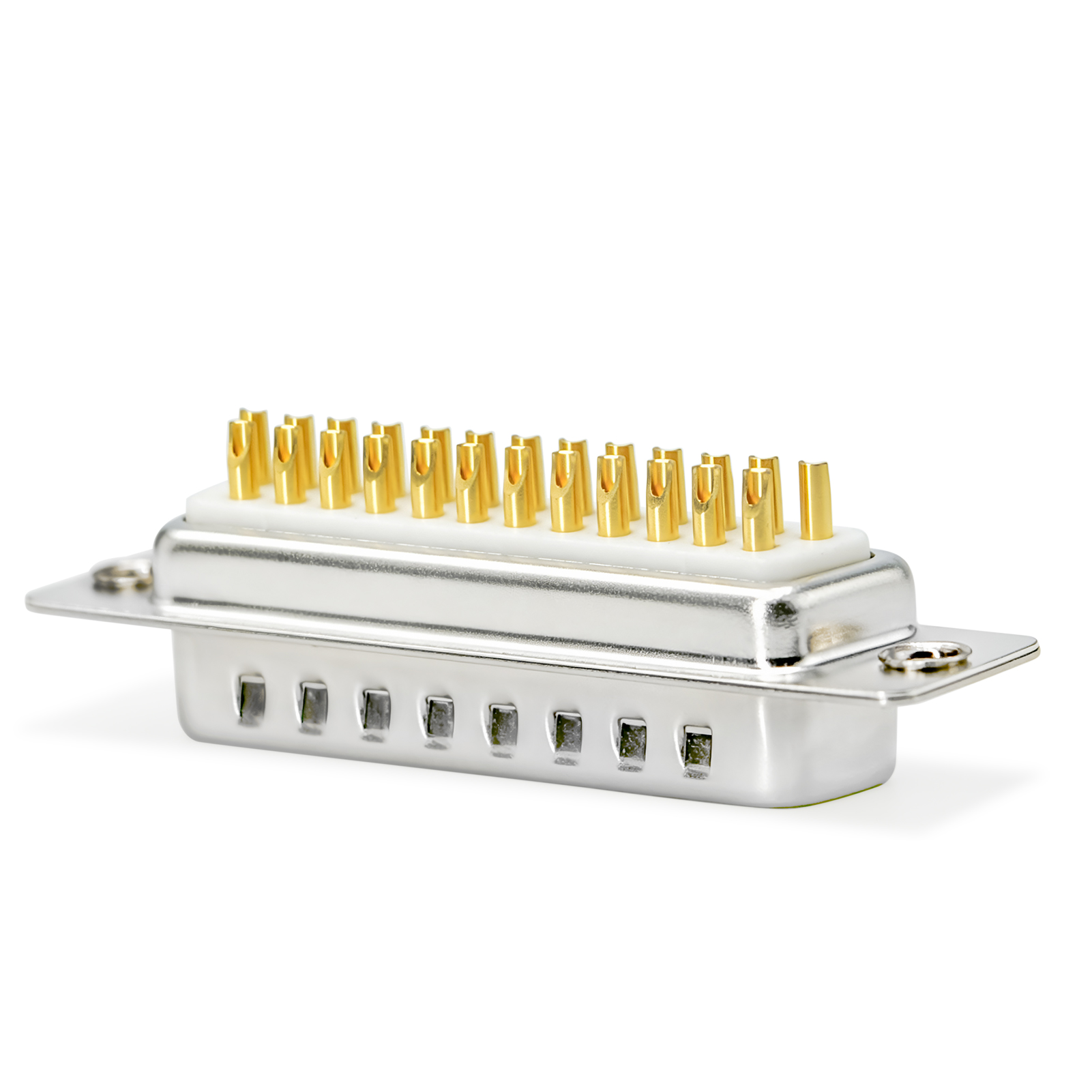

Product Appearance
 |  |  |
Applications
Weather Radar and Satellite Communication Systems
Test and Measurement Equipment
Technical Specifications
Product Code：23.01.000.0031
| Rated Voltage | 100V DC |
| Rated Current | 5A |
| Pin-Ground Nominal Capacitance | 5600±20%PF |
| Contact Plating | Au |
| Pin Material | Cu-alloy |
| Contact Resistance | ≤10 mΩ |
| Pin-Pin Insulation Resistance | R≥1000 MΩ @ 100 V DC |
| Pin-Ground Insulation Resistance | R≥1000 MΩ @ 100 V DC |
| Lead Style | Straight-needle soldering tip |
| Temperature Range | -25°C~+85℃ |

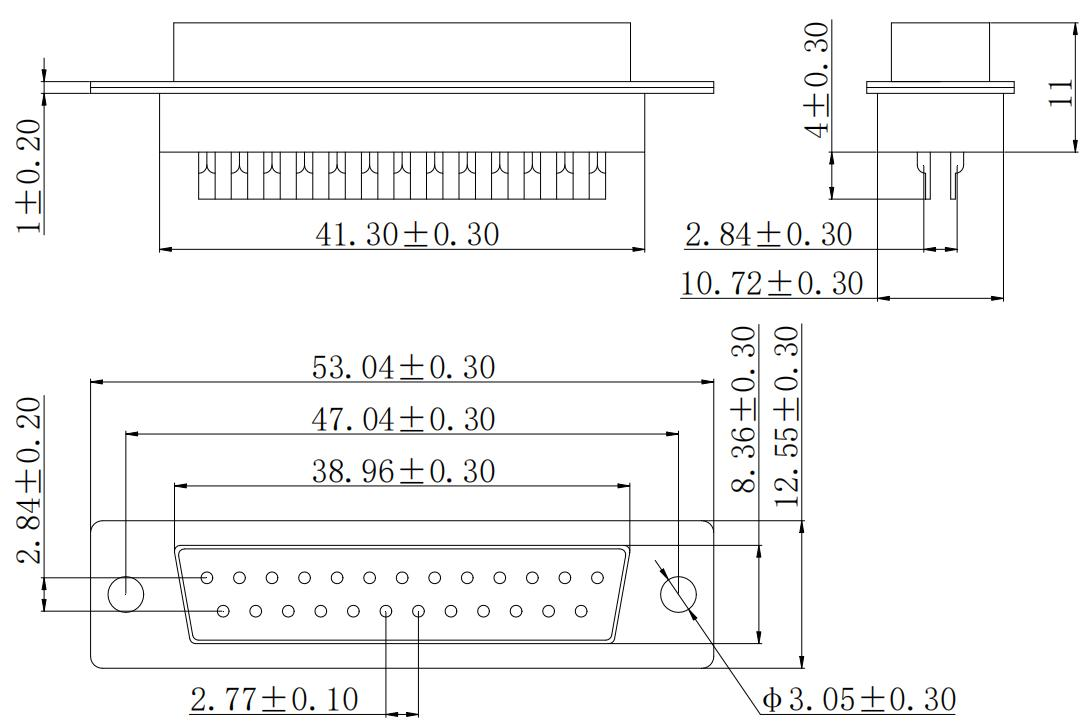

Product Dimensions（mm）
