DB9-100PF Male Filter connector
DB9-100PF Male Filter connector
detailed information

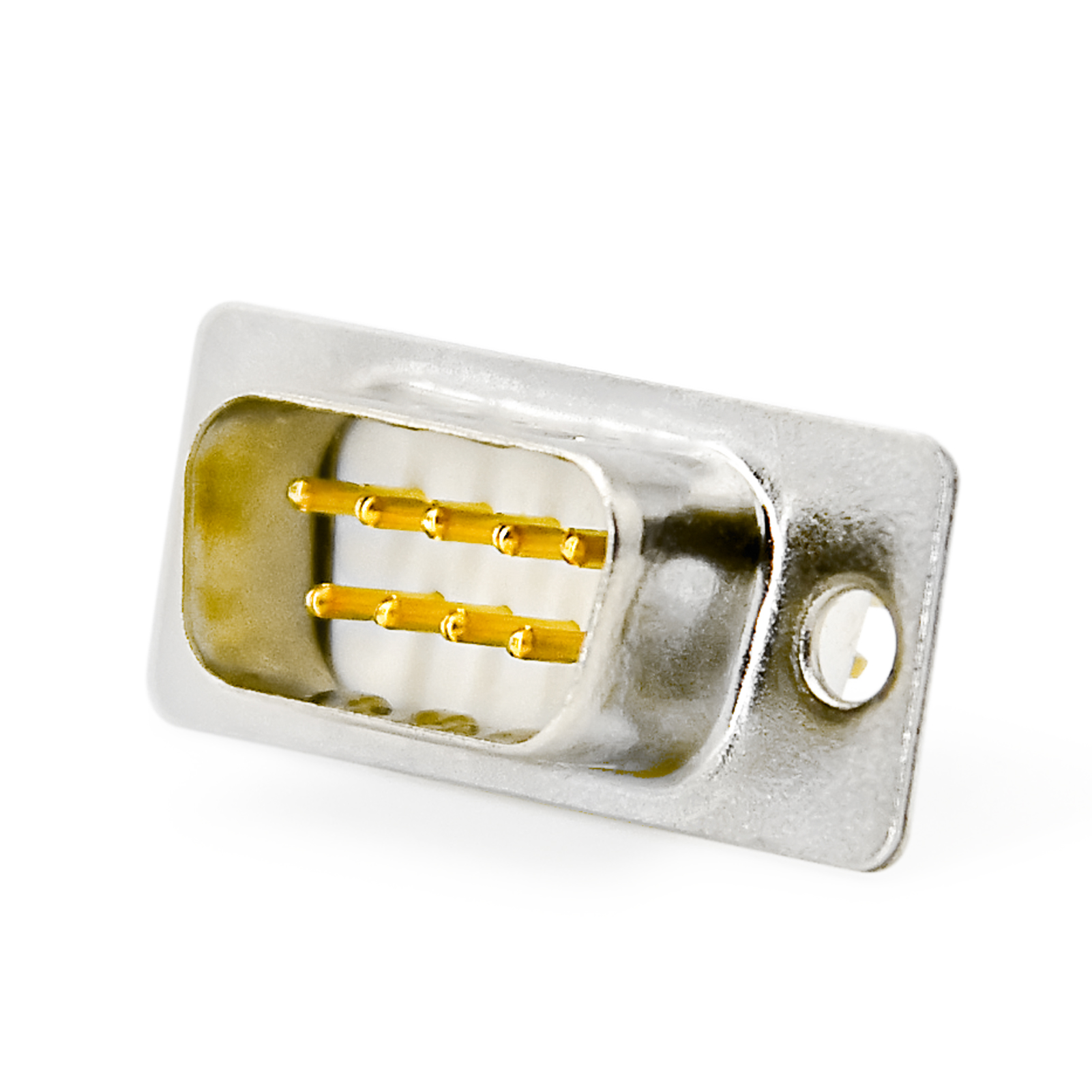

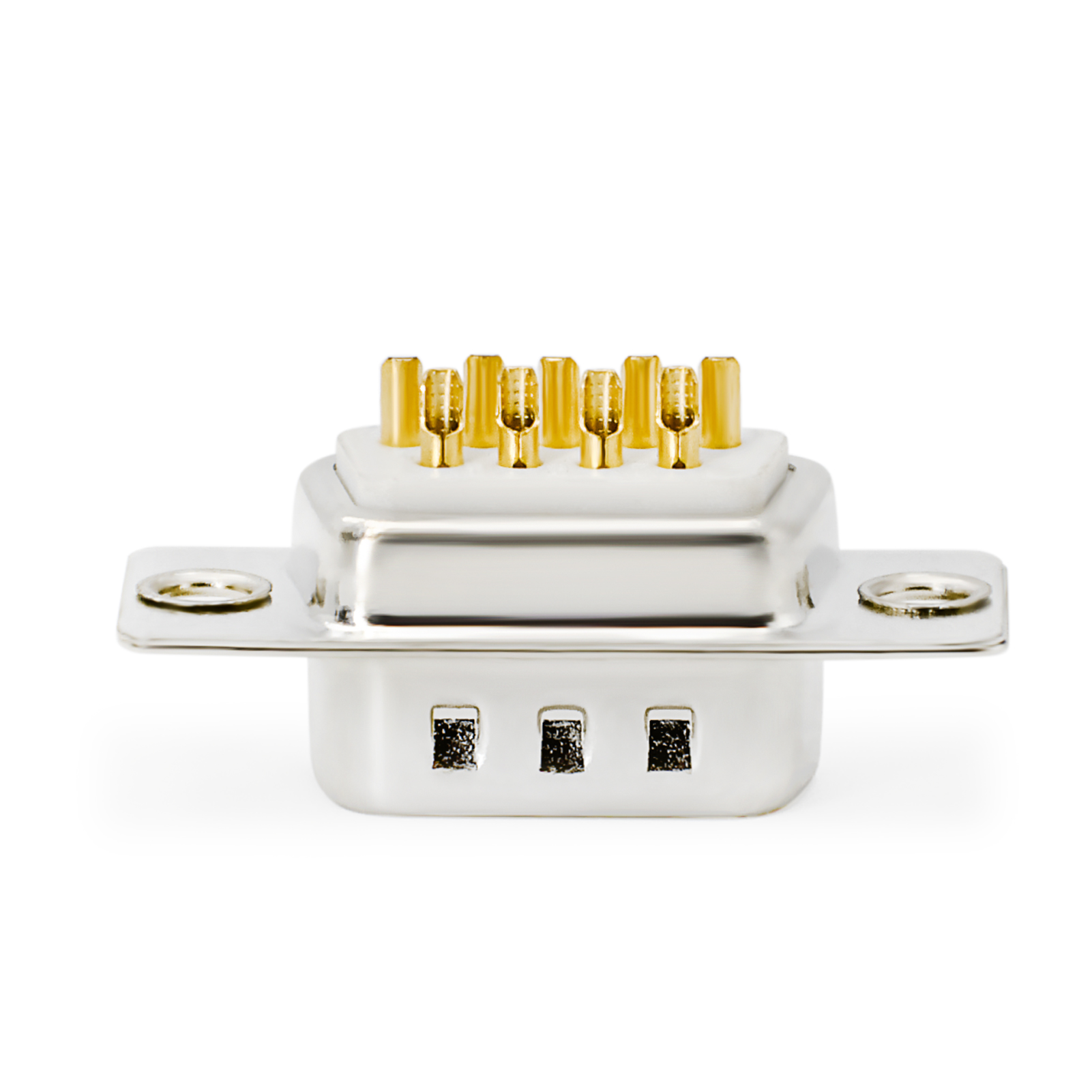

Product Appearance
 |  |
Applications
Weather Radar and Satellite Communication Systems
Test and Measurement Equipment
Technical Specifications
Product Code：23.01.000.0040
| Rated Voltage | 100V DC |
| Rated Current | 5A |
| Pin-Ground Nominal Capacitance | 100±20%PF |
| Contact Plating | Au |
| Pin Material | Cu-alloy |
| Contact Resistance | ≤10mΩ |
| Pin-Pin Insulation Resistance | R≥1000MΩ@100V DC |
| Pin-Ground Insulation Resistance | R≥1000MΩ@100V DC |
| Lead Style | Straight-needle soldering tip |
| Temperature Range | -25℃~+85℃ |

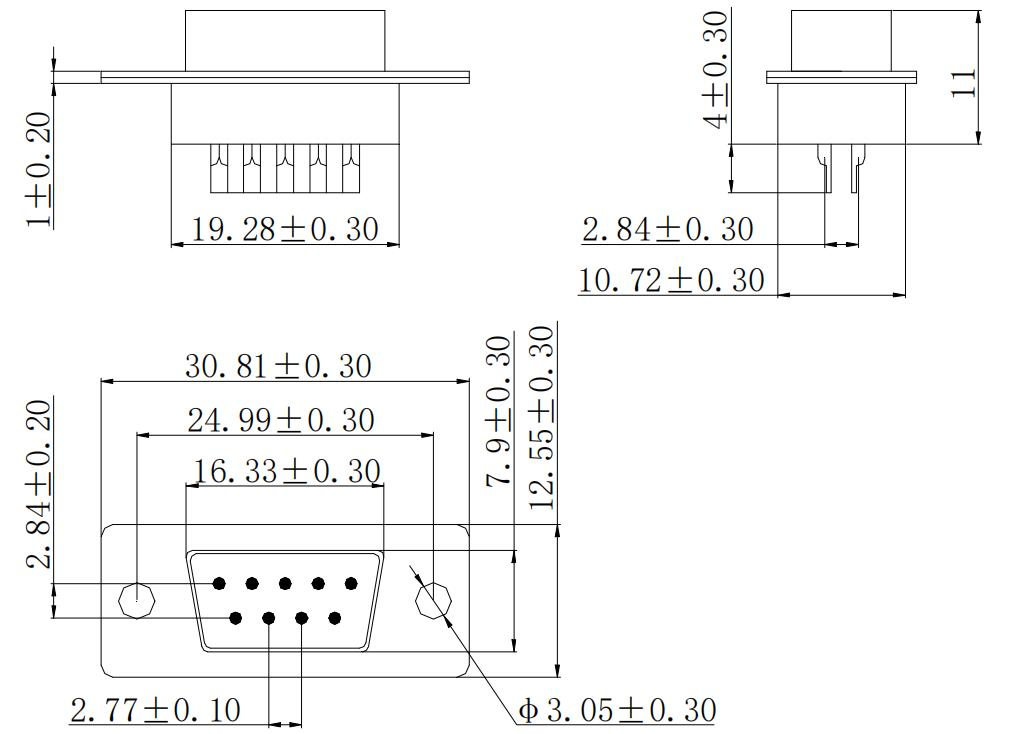

Product Dimensions（mm）
