GNSS-101-001 Signal Repeater

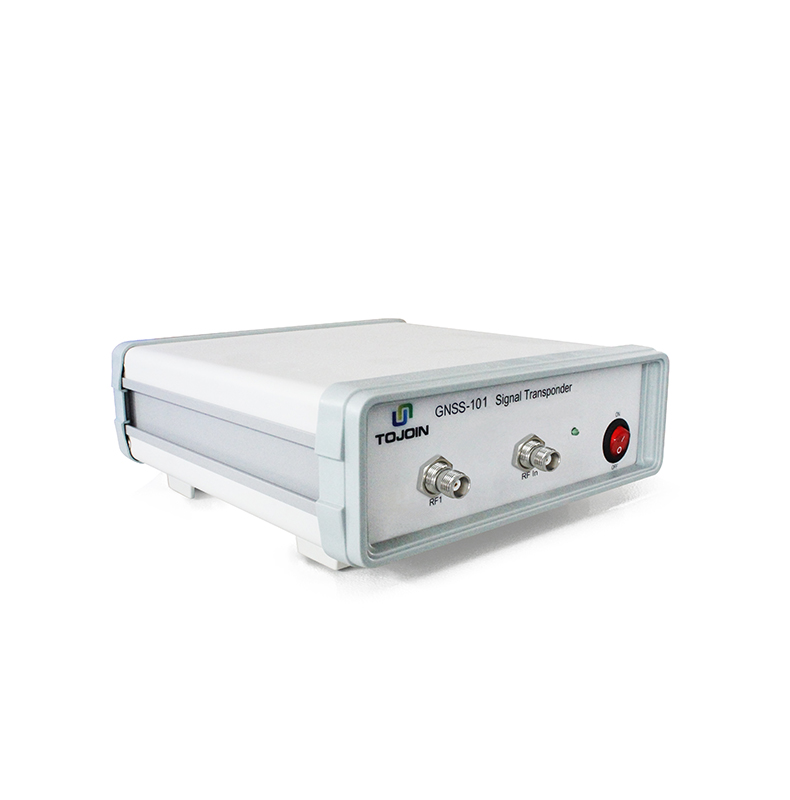

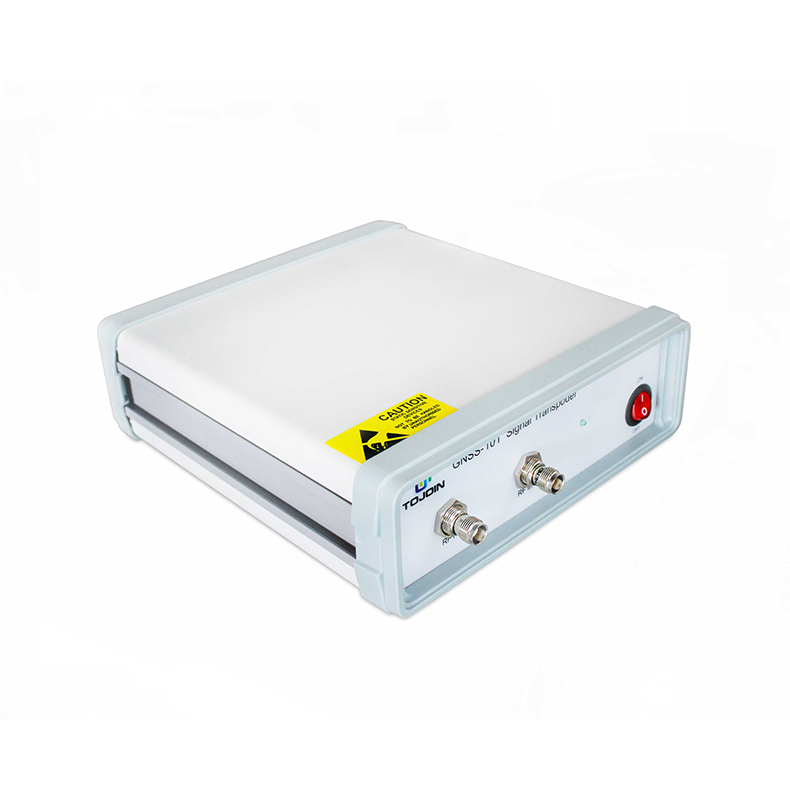

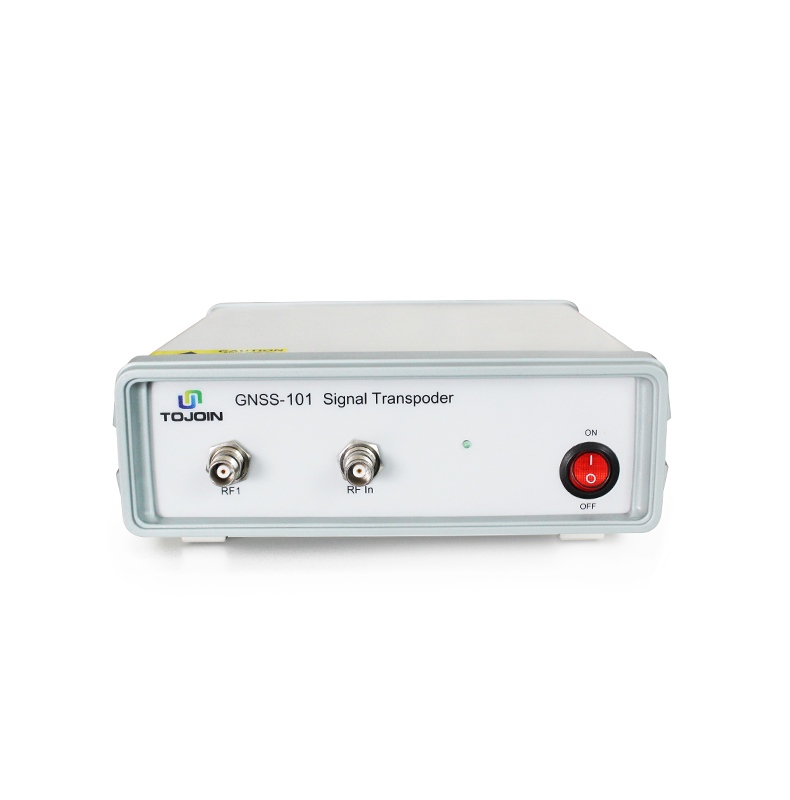

Product Appearance
 |  |  |
Product Introduction
The GNSS-101 signal repeater unit uses a receiving antenna to lock onto downlink signals from satellites in the sky. It routes satellite signals from outdoors to indoors or other areas where satellite signals cannot be received, and allows signal strength to be adjusted according to testing environment requirements, enabling tasks that would normally be performed outdoors to be completed indoors.
Technical Specification
| Frequency Range | GPS:L1/BDS:B1C |
| Device Gain | 55±2dB |
| Noise Figure | ≤2.0dB(typ.) |
| Amplifier 1 dB Compression Point | -40 |
| Signal Output | 1 channel |
| Impedance | 50Ω |
| VSWR | 2.0:1(max) |
| Interface Type | TNC |
| Power Supply | DC-12V/0.5A |
| Operating Temperature | -30~+85℃ |
Main Accessories
| Outdoor receiving antenna | Antenna gain 38±2dBi |
| RF cable | Customizable |
| Surge protectors, loads, power dividers, etc. | Compatible with GNSS operating frequencies |
| Transmitting antenna | Circularly polarized patch antenna |

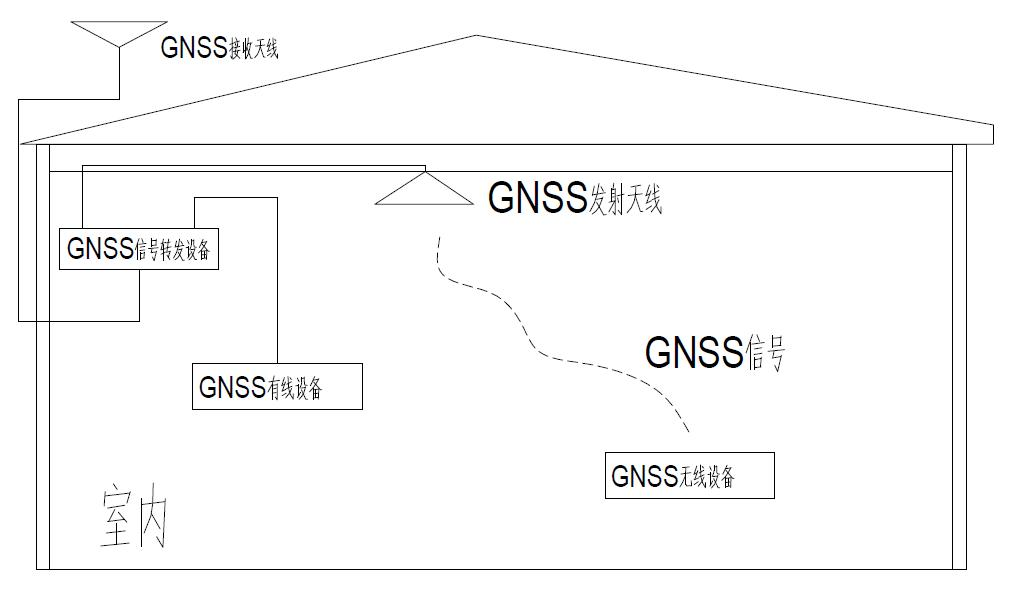

Installation Diagram
