USB3.0x10 Filter
USB3.0x10 Filter
detailed information
RF Filter USB3.0*10

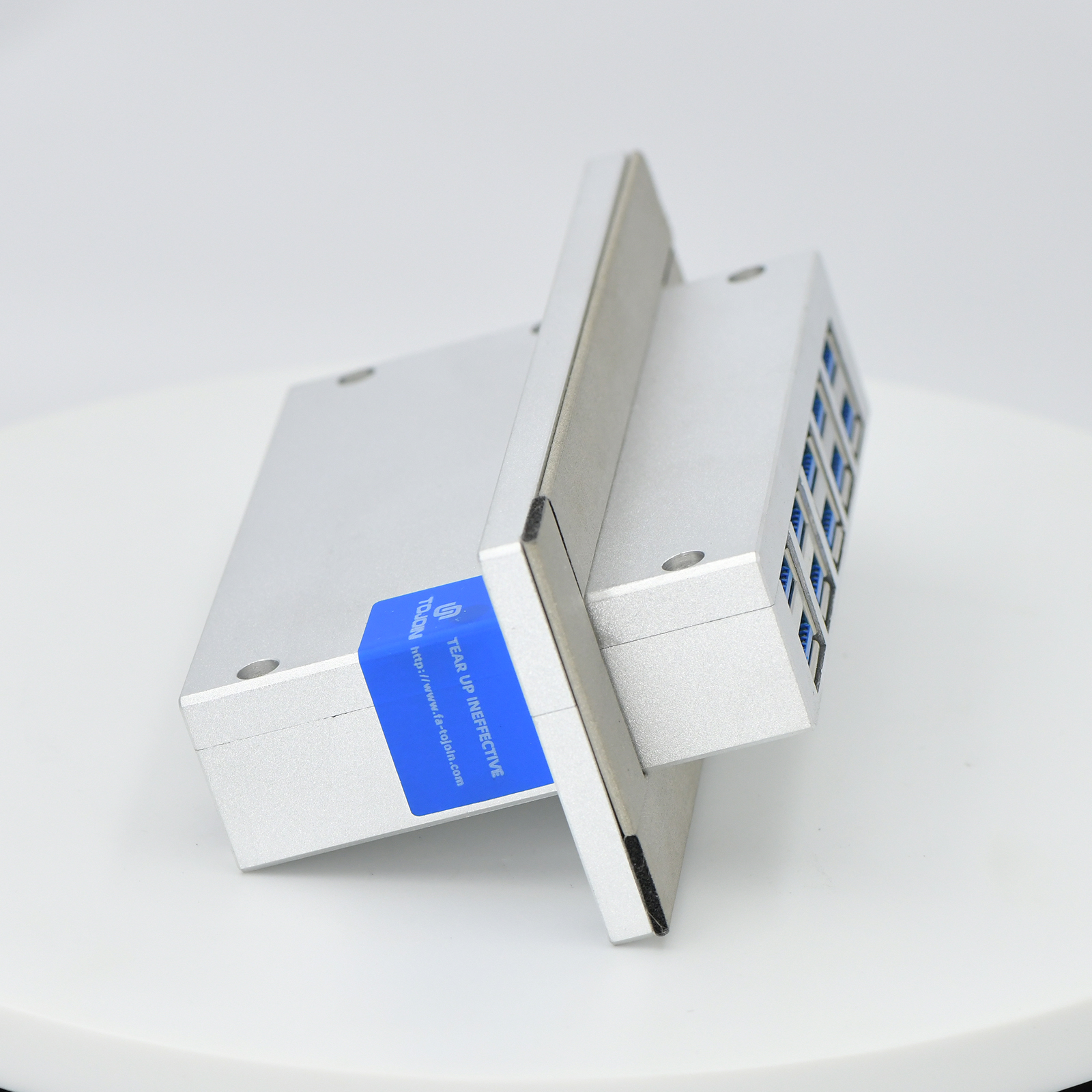

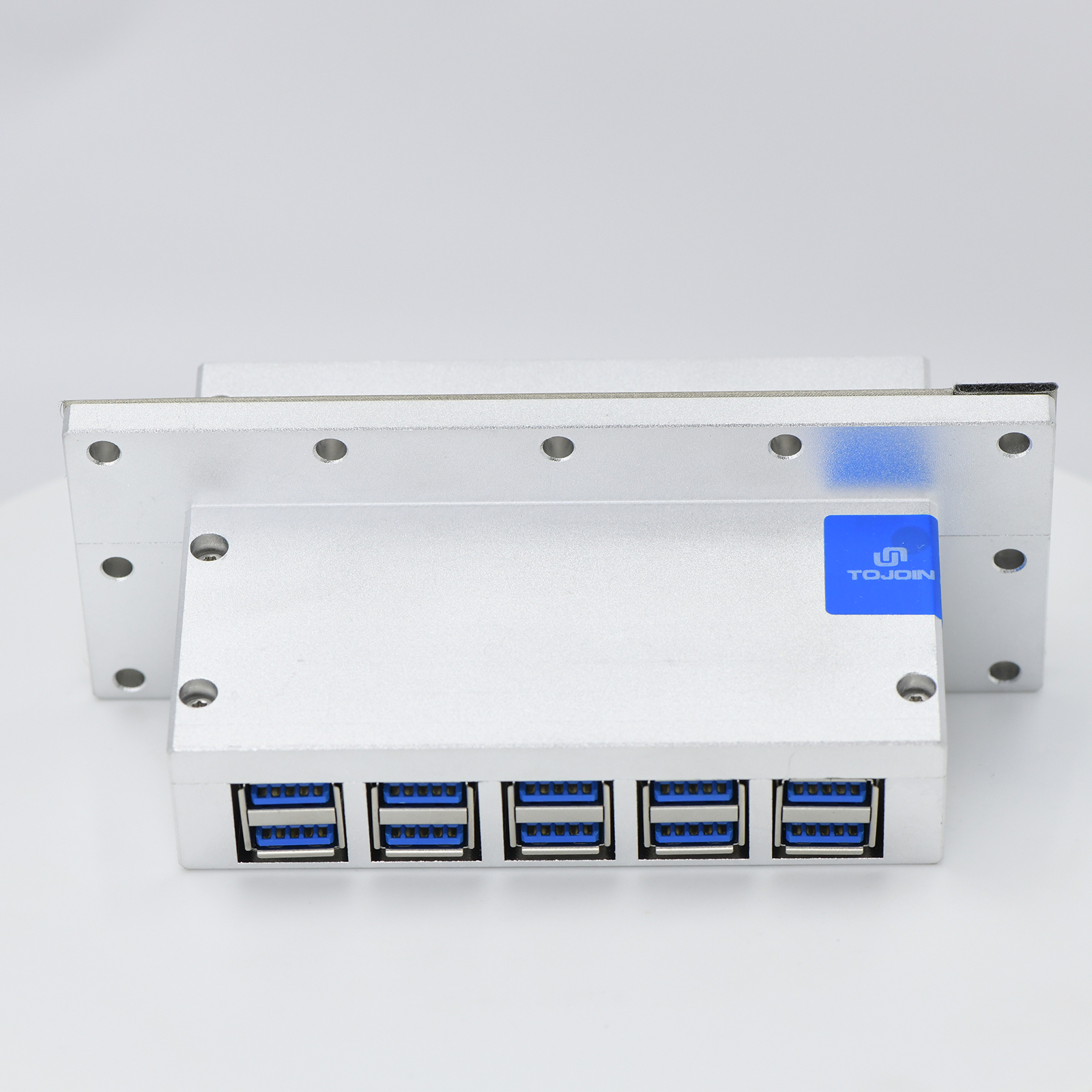

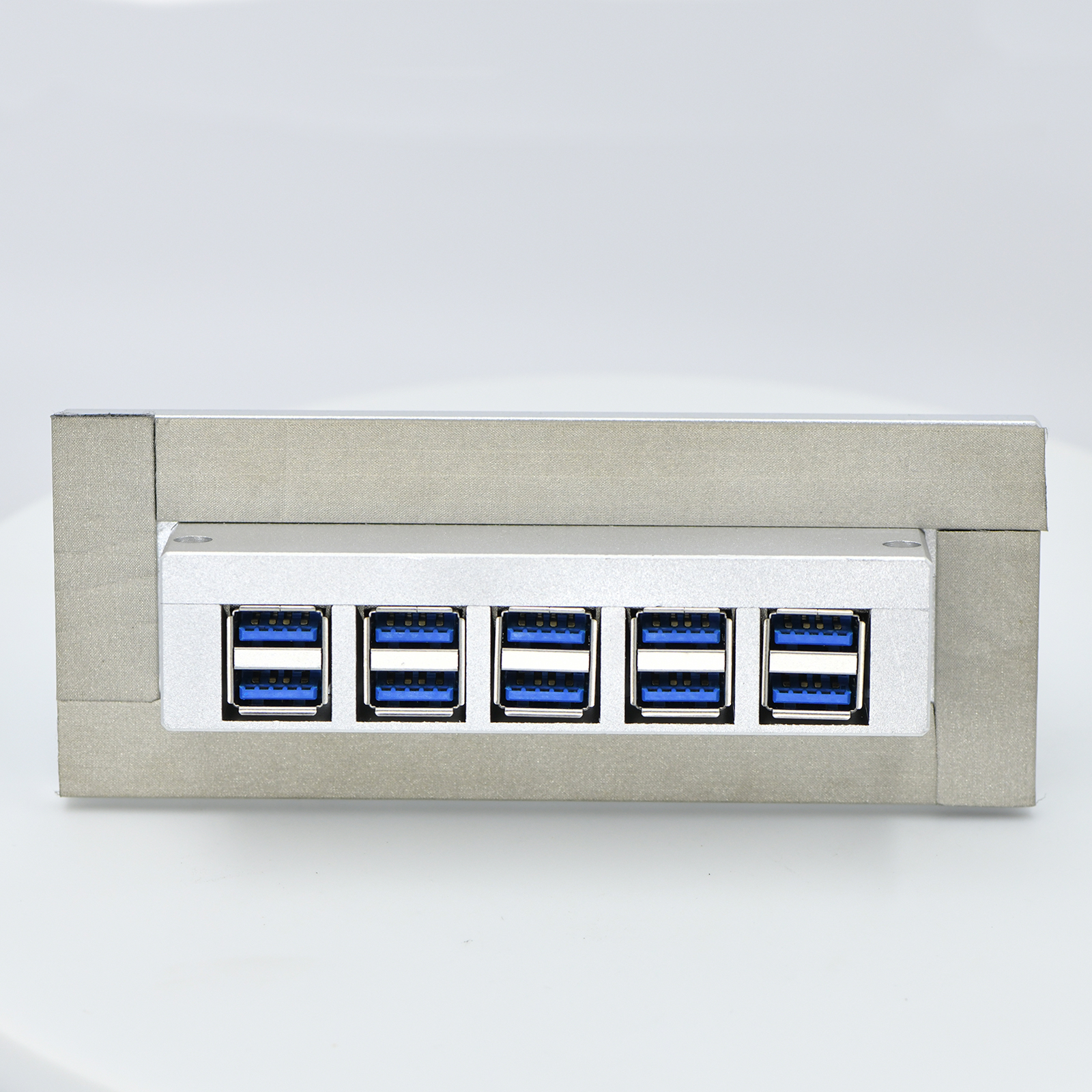

Product Appearance
 |  |  |
Applications
Weather Radar and Satellite Communication Systems
Test and Measurement Equipment
Technical Specifications
Product Code：60.06.050.0267A
| Parameter | Min. | Typ. | Max. |
| Type | - | LPF | - |
| Frequency(MHz) | DC | - | 800 |
| Insertion Loss(dB) | - | - | 3 |
| Out Band Rejection(dB) | 70 | 75 | - |
| Operating Temperature(℃) | -30 | Room temperature | +70 |
| Dimension(mm) | 144*103*57 | ||
| Weight(g) | 700 | ||
| Interface Type | USB3.0,Compatible with USB 1.0 and USB 2.0 (USB-AF) | ||

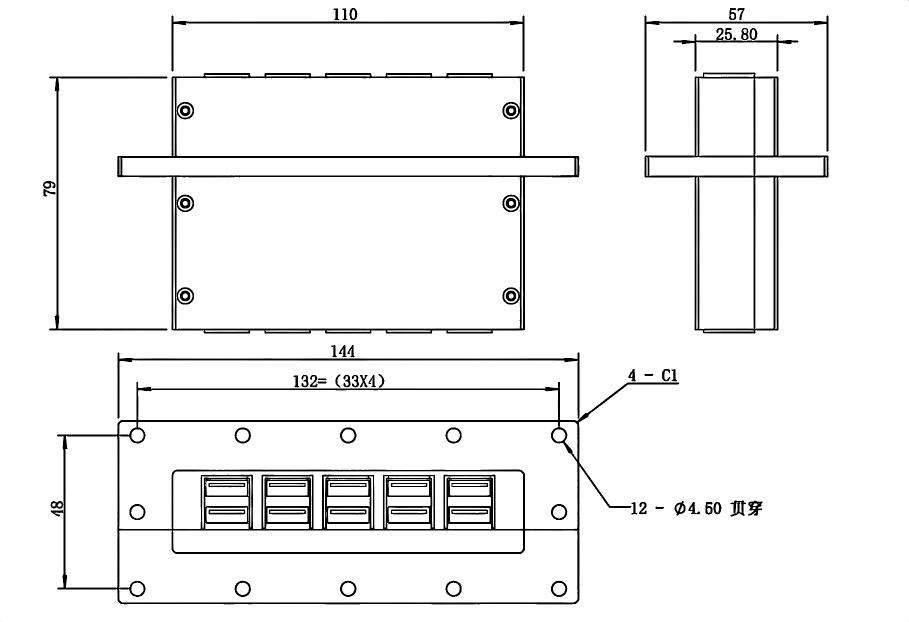

Product Dimensions（mm）
