SMA 4-Port Baffle
SMA 4-Port Baffle
detailed information
RF Shielding Box SMA 4-Port Baffle

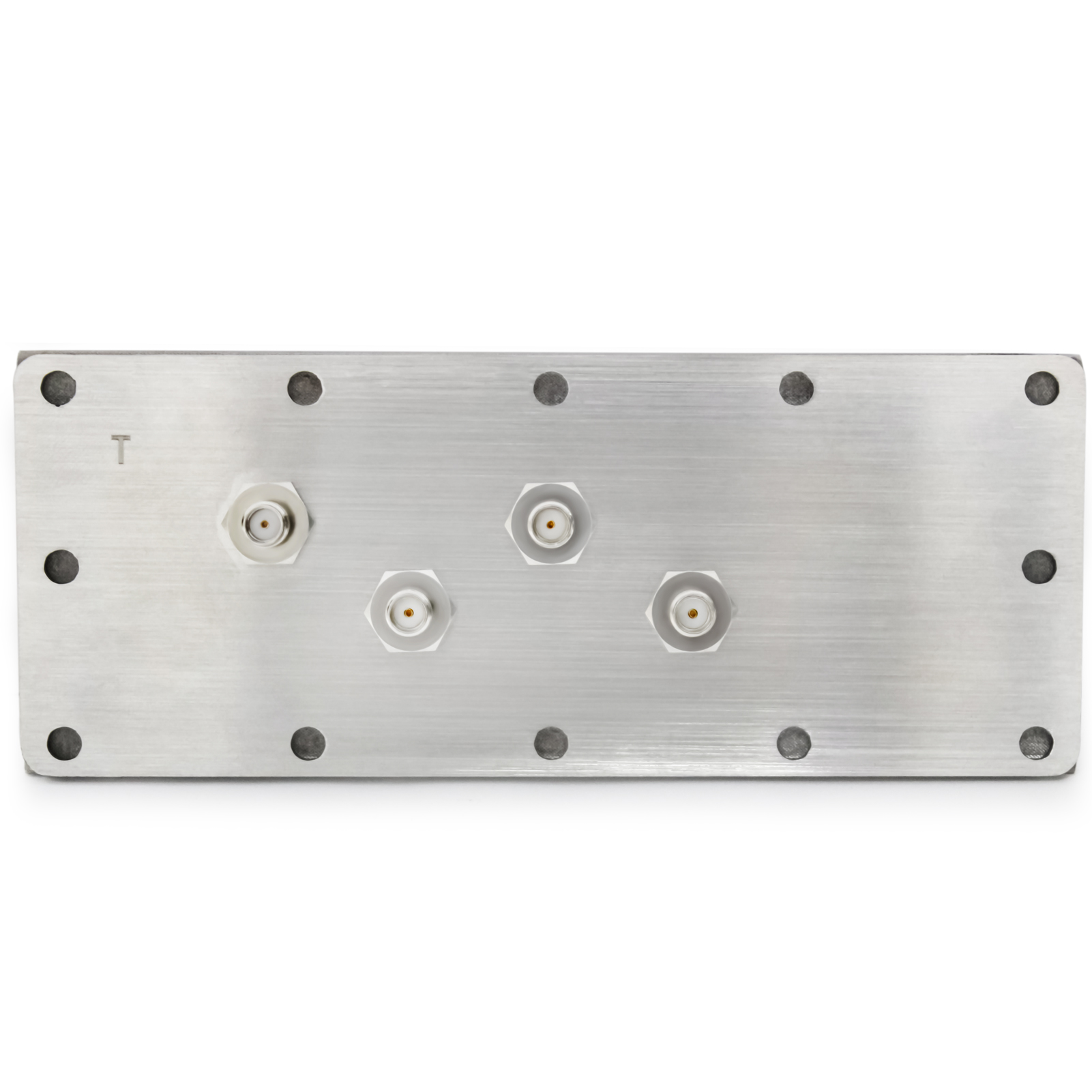

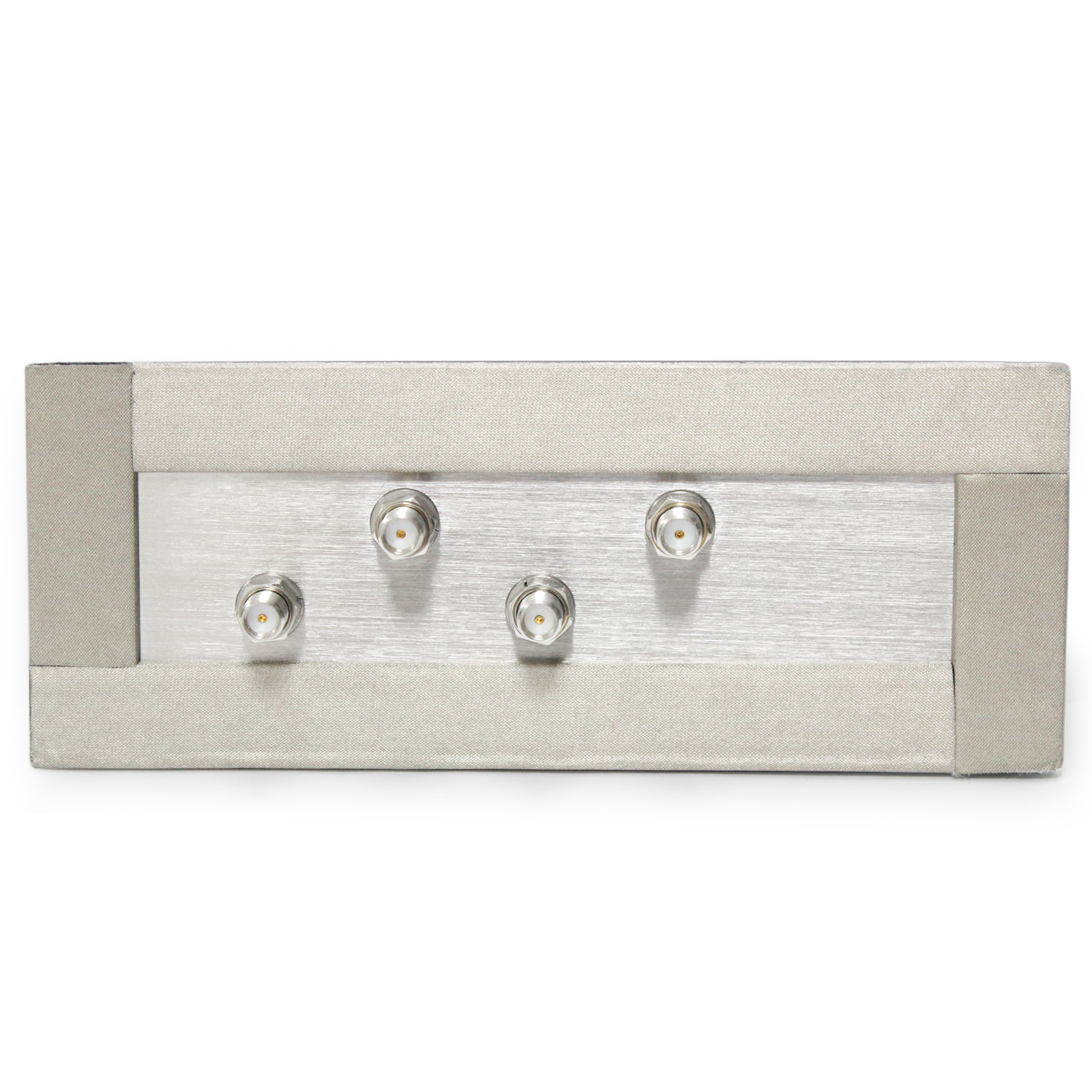

Product Appearance
 |  |
Applications
Weather Radar and Satellite Communication Systems
Test and Measurement Equipment
Technical Specifications
Product Code：60.06.050.0081
| Isolation(dB) | 75@2400/5800MHz min |
| Interface Type | SMA Female-Female |
| Number of ports | SMA*4 |
| Operating Temperature(℃) | -30~+70 |
| Dimension(mm) | 144*22*57 |
| Weight(g) | 175(Typ.) |

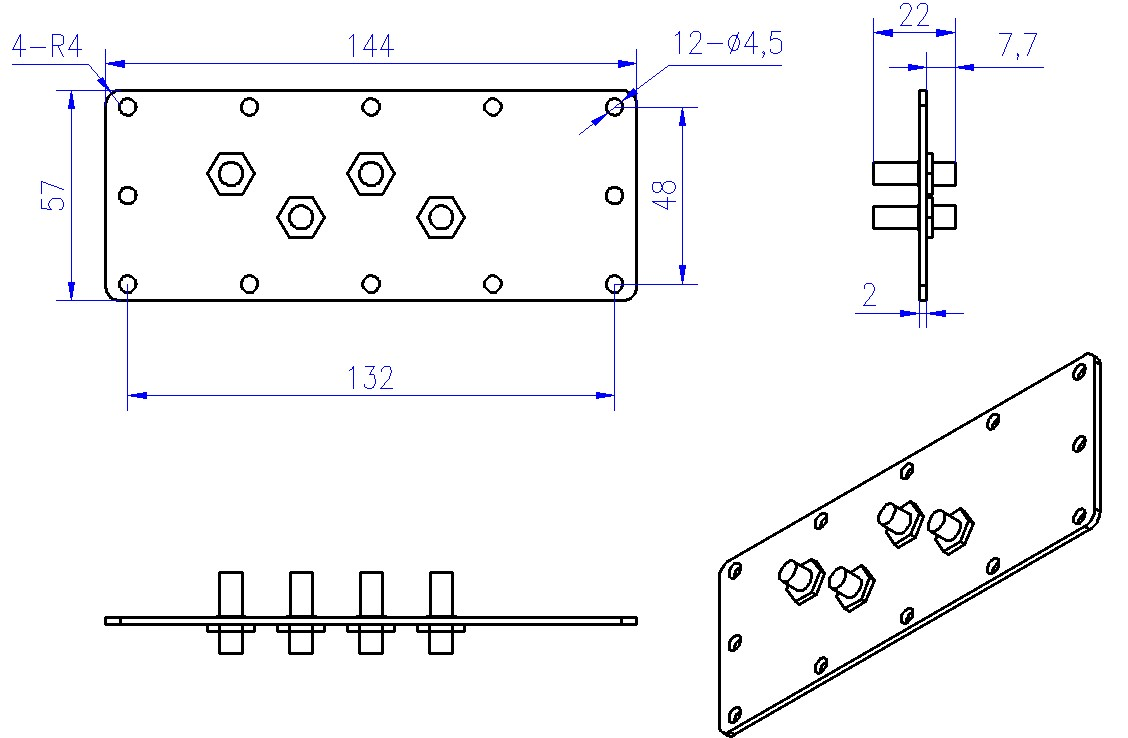

Product Dimensions（mm）
