Armored Precision Test Cable, 50Ω, DC-18GHz, 2.92-Male

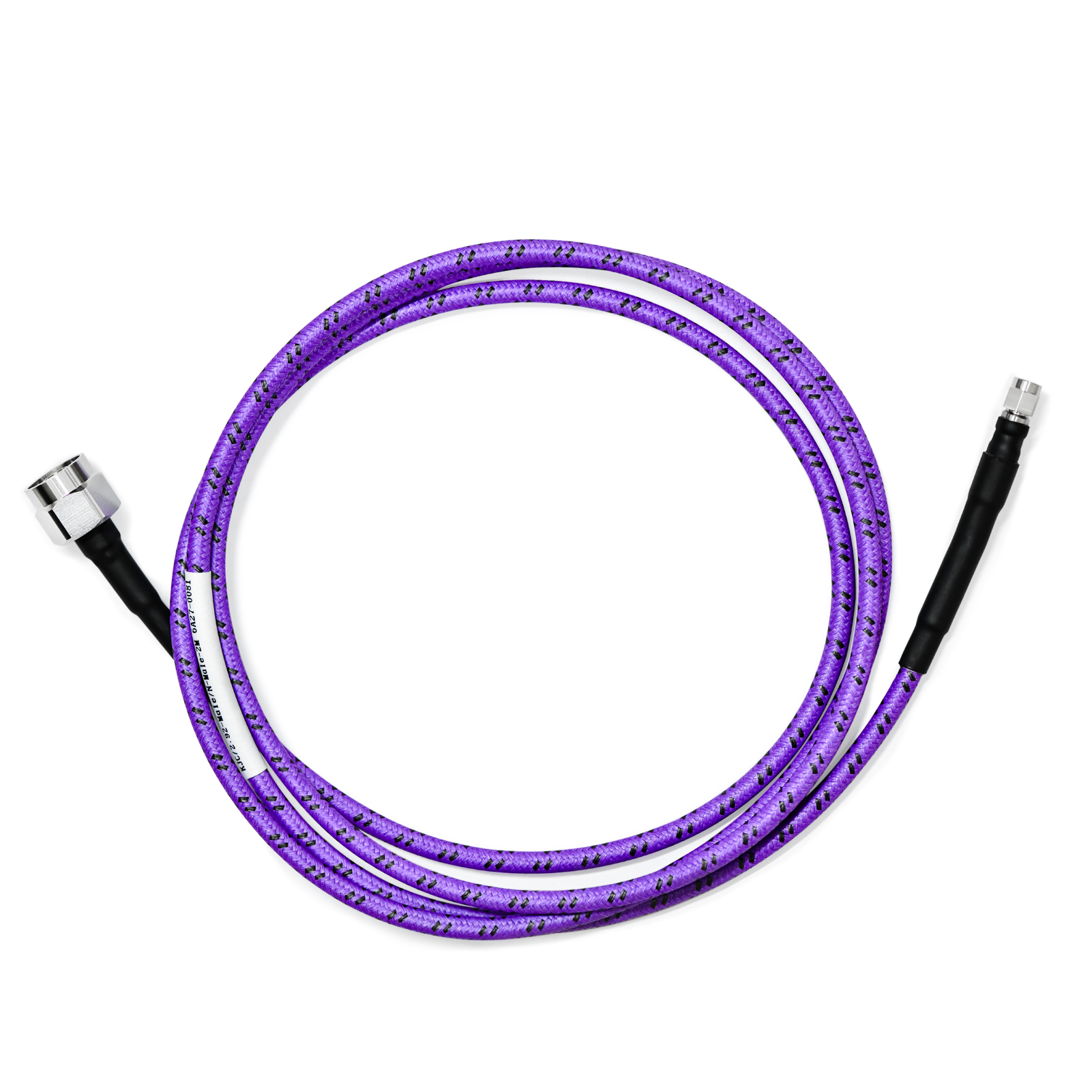

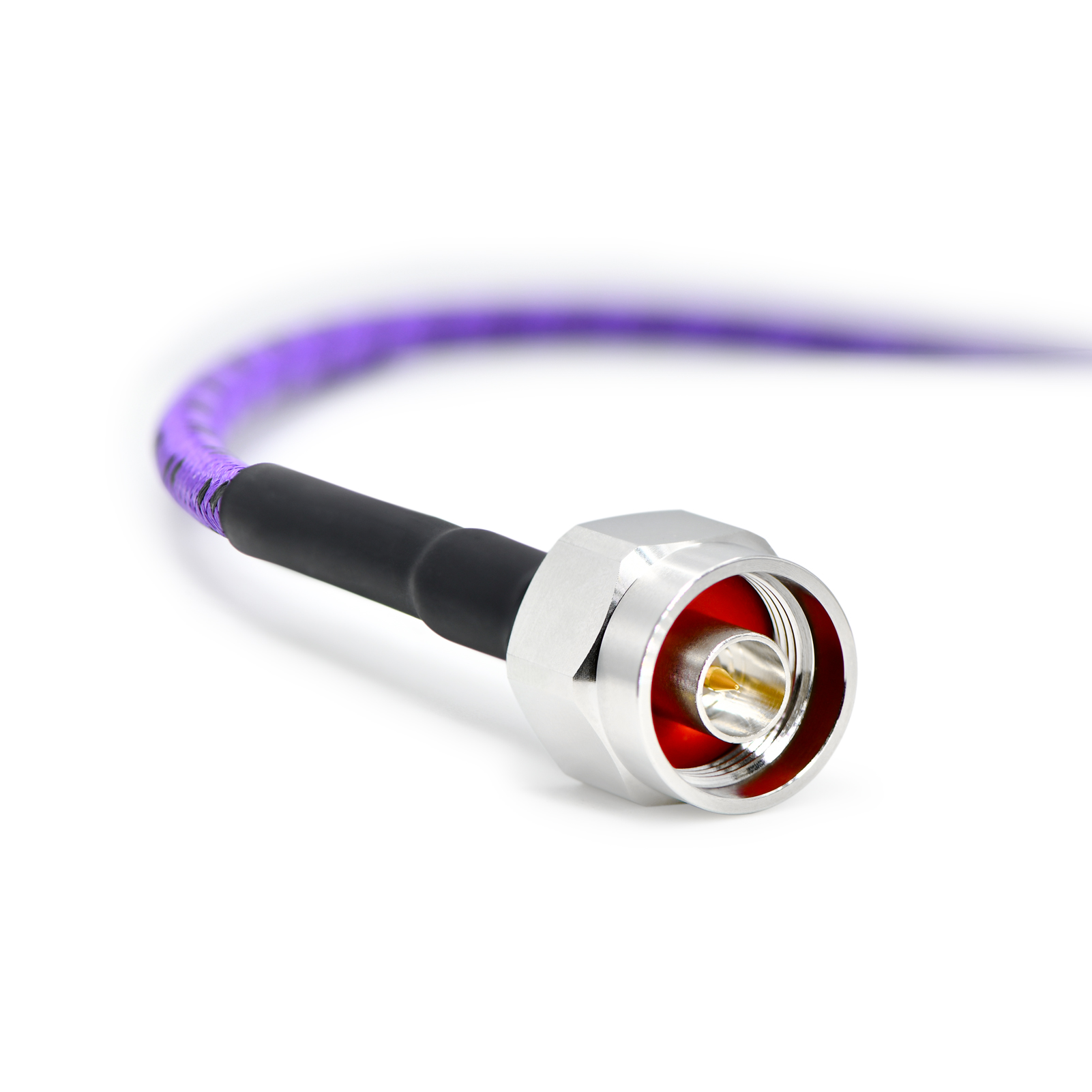

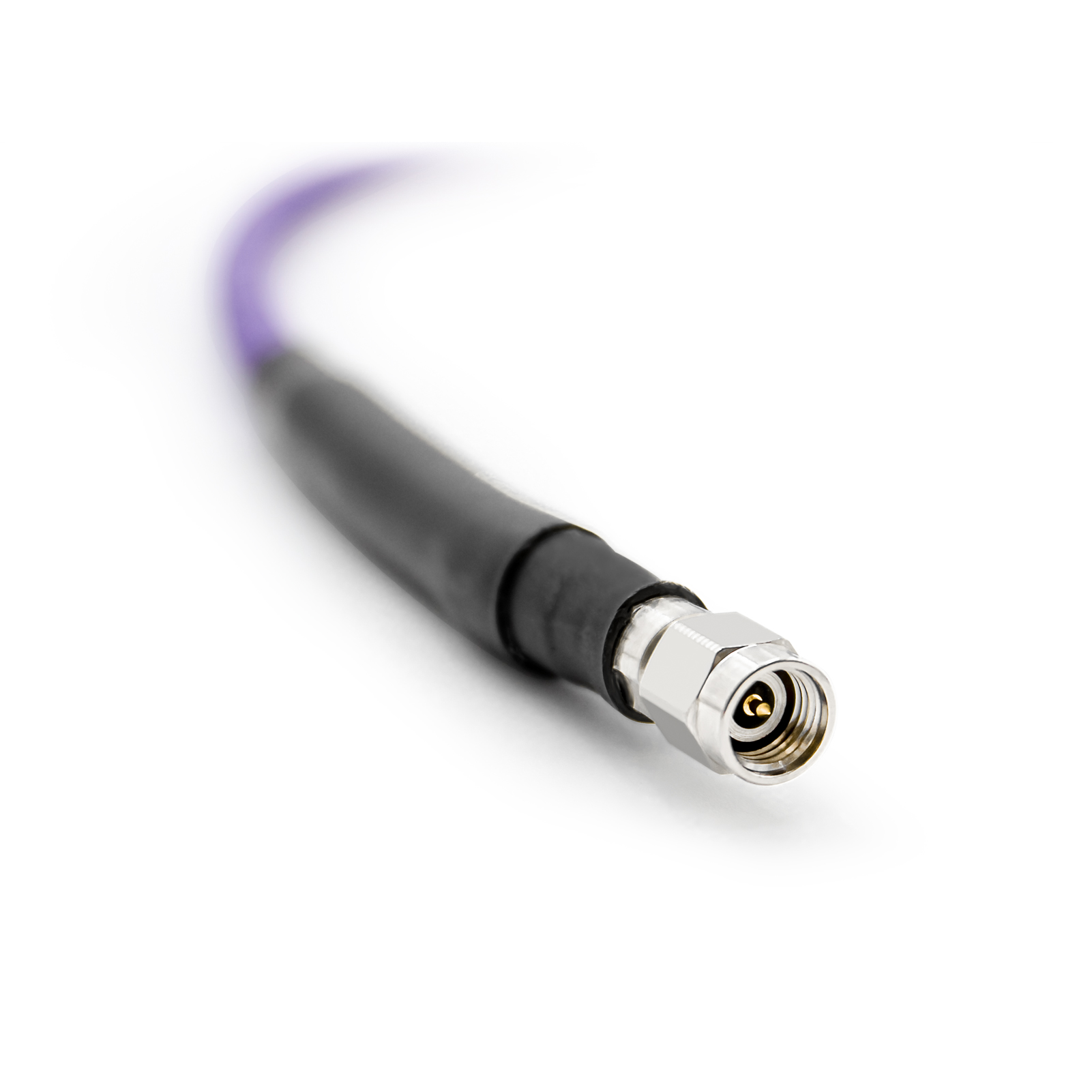

Product Appearance
PIN:60.08.068.0003
 |  |  |
Coaxial Connections
Connectors: 2.92-Femal, SMA-Femal, N-Femal
Interface Type: 2.92-Male N-Male
Product Overview
The KJC/2.92-Male/N--Male is a 50Ω armored precision test cable rated for DC–18 GHz. It features excellent VSWR and amplitude/phase stability, and its reinforced connectors and multi-layer armor ensure durability and resistance to damage. It is suitable for use in laboratories, 5G MIMO/OTA testing, phased array applications, and high-precision RF and microwave testing.
Big Deal
Bandwidth, DC to 18 GHz
Excellent voltage standing wave ratio and measurement accuracy
Excellent amplitude and phase stability under bending and vibration
Applications
Industrial Control and Automation Equipment
Communication Receivers and Transmitters
Military and Aerospace Systems
Environmental and Test Chambers
Radio Frequency and Microwave Test System

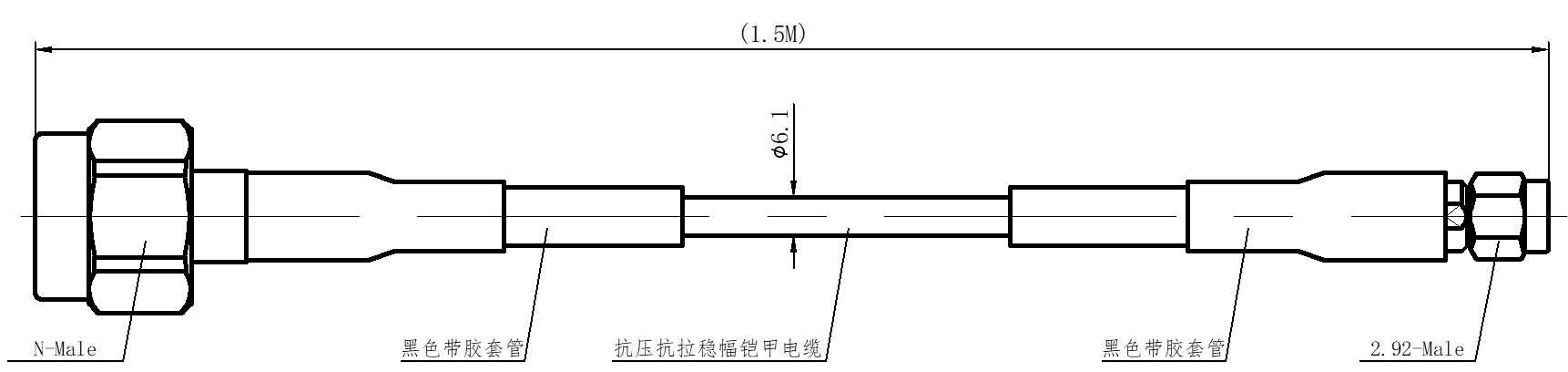

Appearance Structure (Unit: mm)

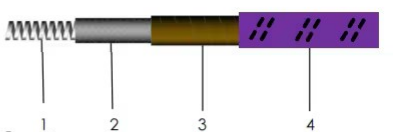

Cable Cross Section
1.Armor Spring (stainless steel with spring)
2.Reinforcing Mesh(tin-plated alloy wire)
3.Reinforced net protective layer
4.Sheath (PTFE braided, purple + black)
Technical Parameter
| Parameter | Typ. |
| Characteristic Impedance | 50Ω |
| Frequency Range（GHz） | DC~18GHz |
| Shielding Performance | ＜-90dB@1GHz |
| Power | 150watt@10GHz |
| VSWR | DC～18GHz ≤1.3 |
| Insertion Loss（dB） | DC～18GHz ≤3.5dB |
| Compatible Cable | Armored Cable |
| Cable Bending Radius | Greater than 25 mm |
| Operating Temperature（°C） | -40℃ ~ +80℃ |

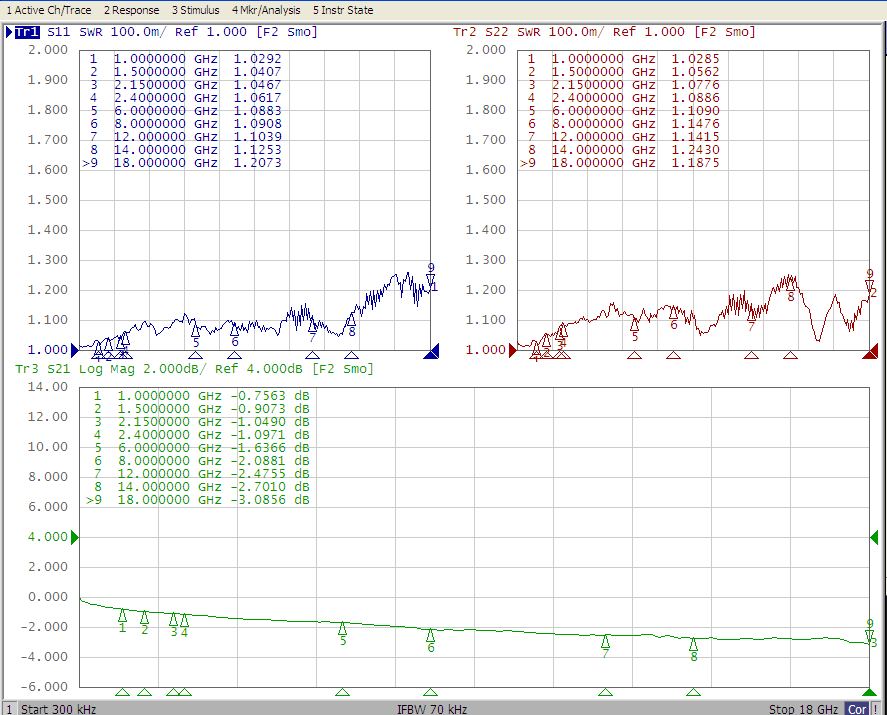

Test Report
*The information in this document is intended to assist users in product selection. Users are advised to conduct tests to determine whether the product meets the requirements of the corresponding application scenarios. Product specifications and descriptions herein are subject to change without prior notice.
