DC Block F Male-Female
DC Block F Male-Female
detailed information
DC Block F Male-Female 5-2400MHz
DB-F2.15-60

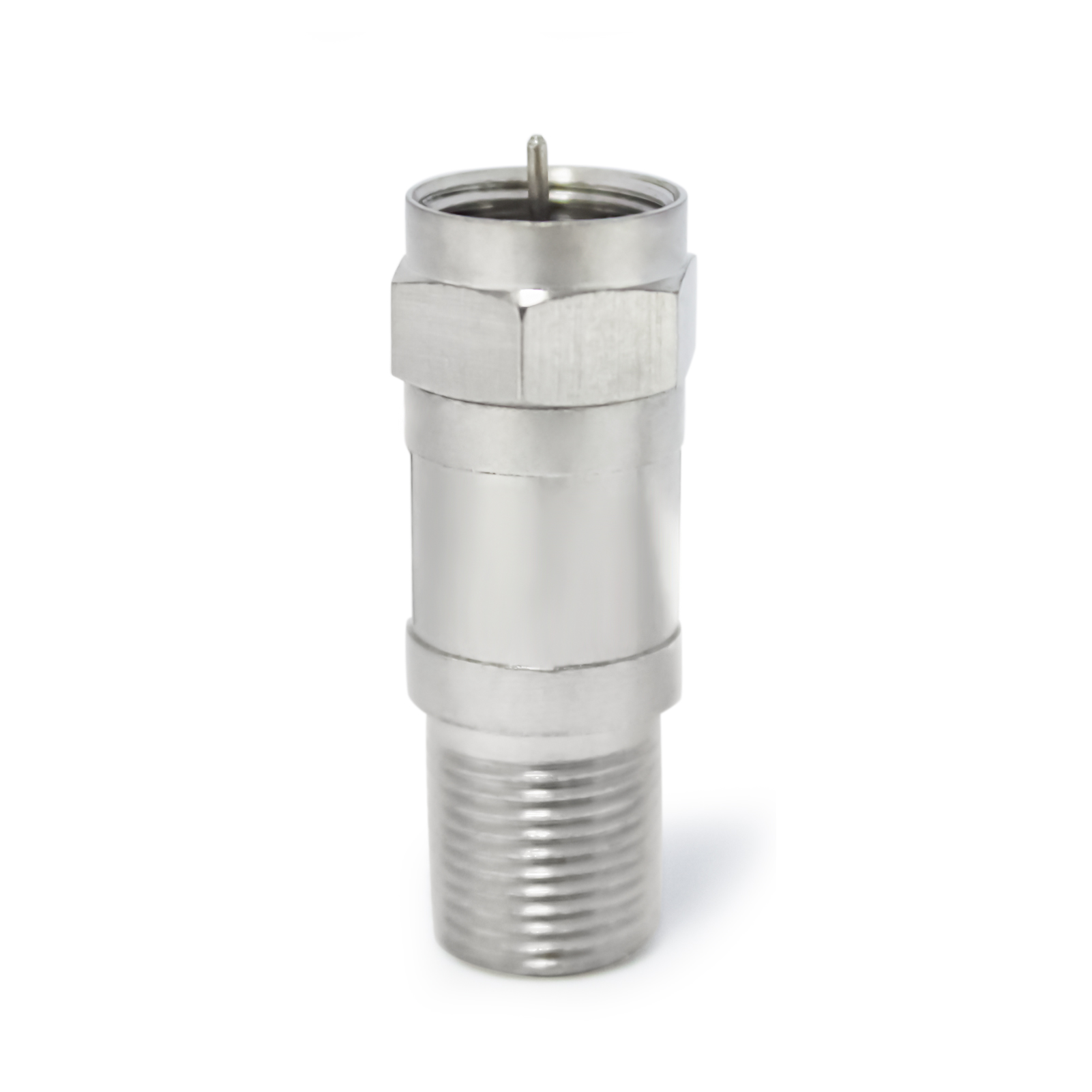

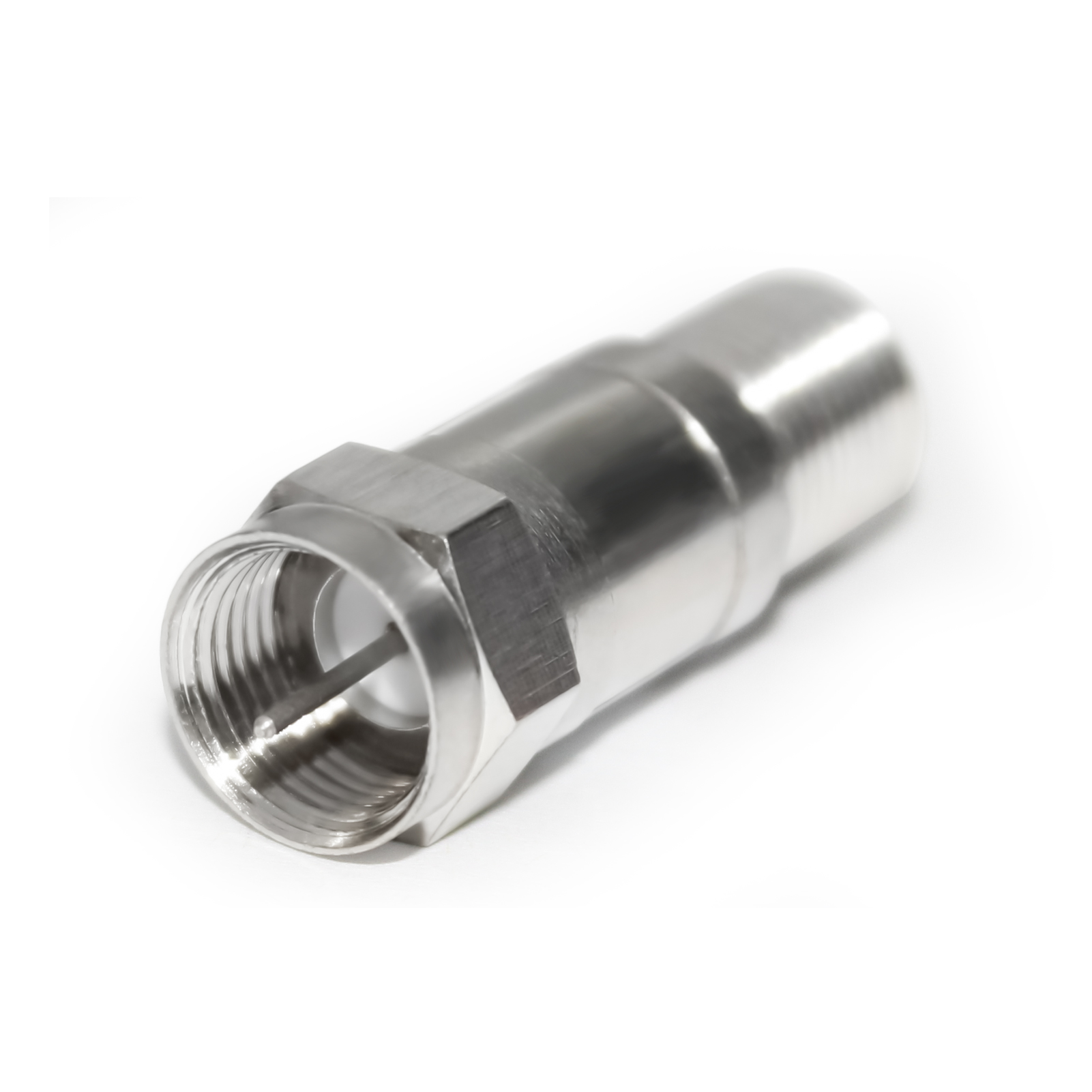

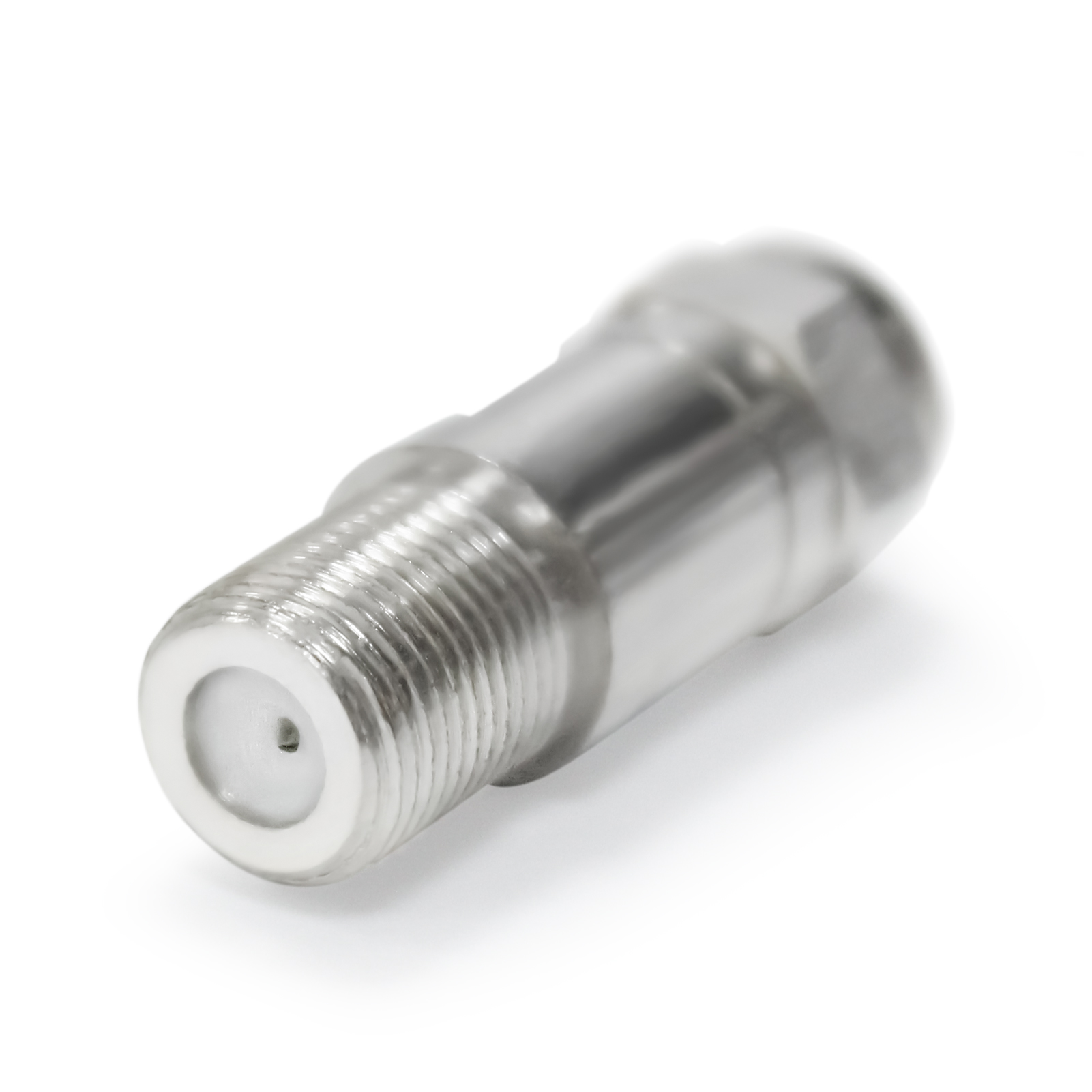

Product Appearance
PIN:60.06.090.0010
 |  |  |
Technical Parameter
| Frequency Range（MHz） | 5-1000 | 1000-1750 | 1000-2400 | 1750-2000 | 2000-2400 |
| Insertion Loss（dB） | ≤0.5 | - | ≤1.0 | - | - |
| Reflection Loss（dB） | ≥20 | ≥18 | - | ≥16 | ≥12 |
| Interface Type | Metric (British) Type F Male to Female | ||||
| Voltage | DC 100v | ||||

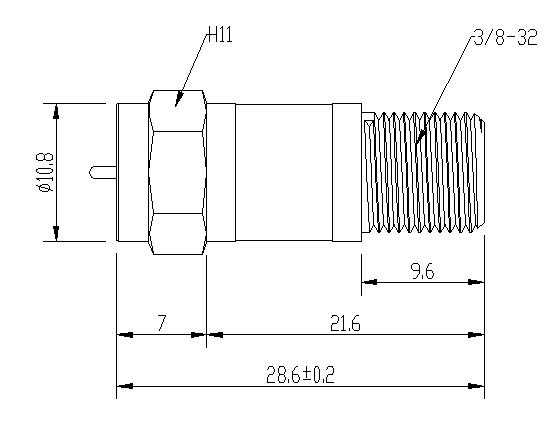

Appearance and Structure (Unit: mm)
*The information in this document is intended to assist users in product selection. Users are advised to conduct tests to determine whether the product meets the requirements of the corresponding application scenarios. Product specifications and descriptions herein are subject to change without prior notice.
