EPS-8SM-2080 Power Splitter
EPS-8SM-2080 Power Splitter
EPS-8SM-2080 Power Splitter
8 Way-0° 50Ω 2000 to 8000 MHz

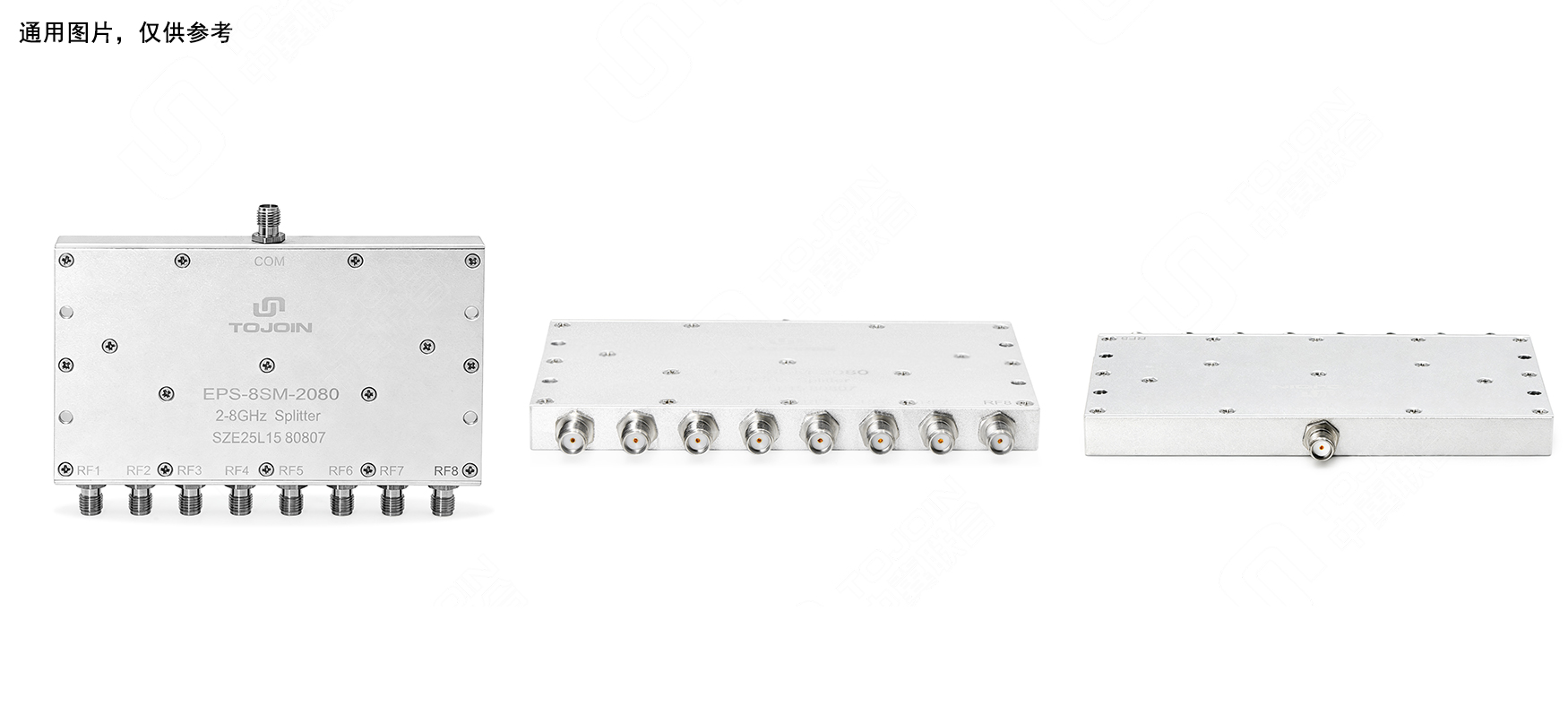

Product Appearance
PIN:60.06.020.0028B
General pictures are for illustration only
Features
Wide bandwidth: 2000 MHz to 8000 MHz
Excellent amplitude imbalance: typical value of 0.3 dB
Compact size
High electrostatic discharge (ESD) rating
Big Deal
Ultra-wideband: 2000–8000 MHz
Good VSWR: Typical value 1.4:1
Amplitude imbalance: 0.3 dB
Applications
WIMAX
ISM
Instrumentation
Radar
WLAN
Satellite Communications
LTE
Technical Parameter
| Parameter | Min. | Typ. | Max. |
| Frequency Range (GHz) | 2 | - | 8 |
| Insertion Loss (dB) (With distribution ratio) | - | - | 10.5 |
| Isolation (dB) | - | 20 | - |
| VSWR | - | - | 1.4 |
| Amplitude Balance (dB) | - | - | 0.3 |
| Phase Balance (°) | - | - | 5 |
| Impedance (Ω) | - | 50 | - |
| Interface Type | - | SMA | - |
| Power Capacity (W) | - | 20 | - |
| Operating Temperature (°C) | -30 | Room temperature | +70 |
| Physical Dimensions (mm) | - | 110*82*10 | - |
| Weight (g) | - | 200 | - |

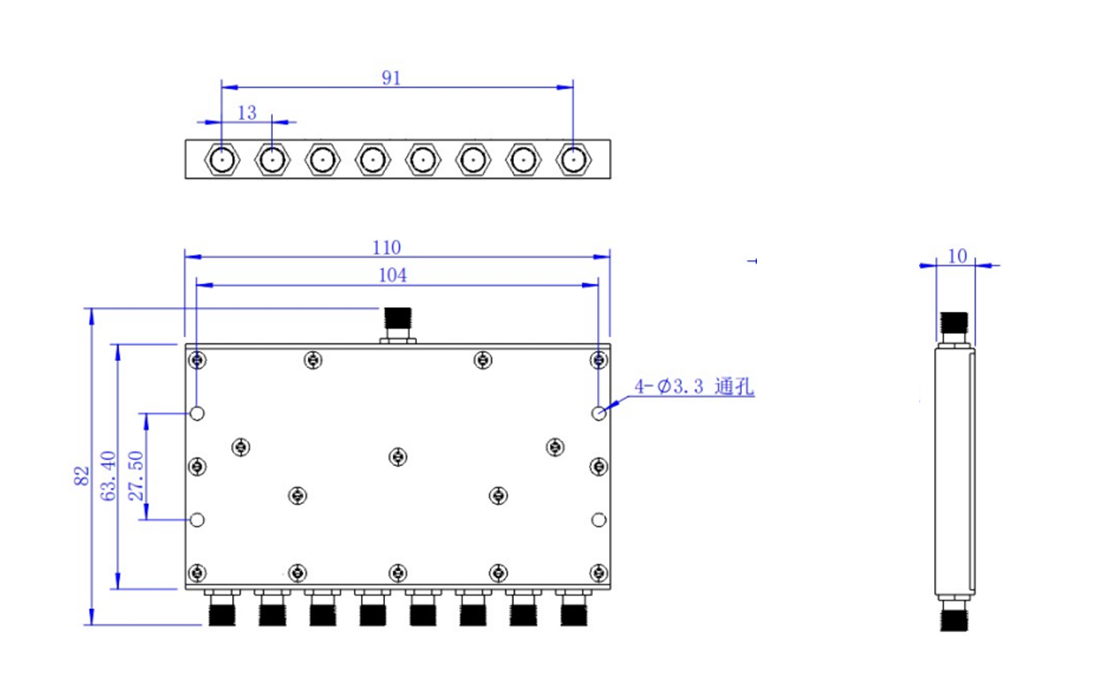

Appearance Structure
Electrical Schematic
*The information in this document is intended to assist users in product selection. Users are advised to conduct tests to determine whether the product meets the requirements of the corresponding application scenarios. Product specifications and descriptions herein are subject to change without prior notice.
