Manual Shielding Box / Working Dimensions: 370 (W) × 375 (D) × 370 (H) / 0.8–8 GHz / Shielding Effectiveness: ≥80 dB

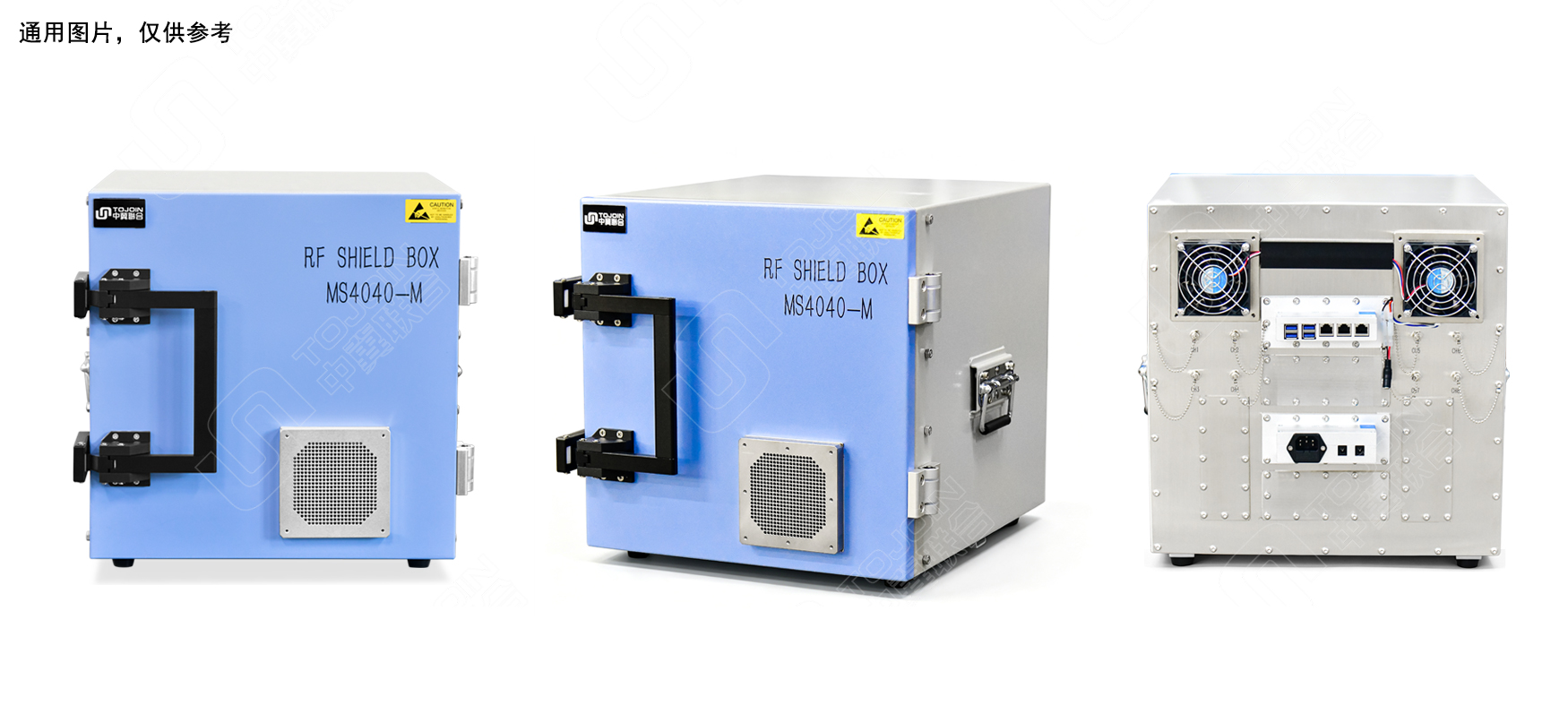

Product Appearance
PIN:60.00.001.0807A
Generic images are for illustrative purposes only.
Product Overview
The MS4040-M is an economical manual shielded enclosure designed to serve as a testing solution platform for modules and end devices in industries such as smartphones, Wi-Fi, Bluetooth, smart grid equipment, automotive electronics, and smart home systems.
This shielded enclosure is manufactured through more than a dozen rigorous processes, including laser CNC cutting of high-quality sheet metal from leading manufacturers, sheet metal forming, electroplating, electrostatic powder coating, assembly and debugging, aging, and testing and inspection. It offers the advantages of high shielding effectiveness, a reliable structure, and stable performance.
Regarding filter selection, we can configure corresponding I/O data interfaces and RF interfaces based on the customer’s actual needs, or develop custom communication interfaces upon request.
Technical Parameter
| Working Frequency (GHz) | 0.8–8 GHz |
| Enclosure Isolation (dB) | ≥80 (Minor, reasonable deviations may occur when used with different filters.) |
| Interface Types | DB9, USB 2.0, USB 3.0, SMA, RJ45, BNC, DC, and AC interfaces; customers may select a combination based on actual usage. Other interfaces require customization. |
| Number of Filters (pcs) | 6 pcs |
| Control Method | Manual |
| Safety Protection Measures | / |
| Operating Temperature (°C) | Operates at ambient temperature |
| Working Dimensions (mm) | 370 (W) × 375 (D) × 370 (H) |
| Overall Dimensions (mm) | 485 (W) × 540 (D) × 426 (H) |
| Weight (kg) | Approx. 14 |
| Material | Aluminum, lined with 15 mm flat cotton batting |
| Color | Computer Gray cabinet + Light Blue door (customizable upon customer request) |
Big Deal
With working dimensions of 370 (W) × 375 (D) × 370 (H), this unit meets the testing requirements for most smart mobile devices on the market.
It utilizes new-generation absorptive materials to minimize reflected and refracted signals inside the chamber, reducing the likelihood of measurement errors caused by environmental factors.
A comprehensive range of communication interfaces makes setting up your testing platform effortless, convenient, and fast.
Linear, stepless PWM intelligent temperature control ensures that fan speed increases uniformly and continuously in response to temperature changes.
Applications
Supports all Wi-Fi 802.11 a/b/g/n/ac/ax/be protocol standards.
Supports Bluetooth 1.0–5.0 IoT and MESH networks, as well as UWB applications across all scenarios.
Supports testing of power-line HPLC high-speed carrier and HRF low-power wireless dual-mode communication modules.
Supports automotive electronics scenarios such as smart car keys, smart cockpits, and wireless tire pressure sensors.
Supports RF protocol signaling for 2G/3G/4G/5G mobile communications and multi-mode GNSS navigation, ensuring terminals comply with 3GPP standards and network access requirements.

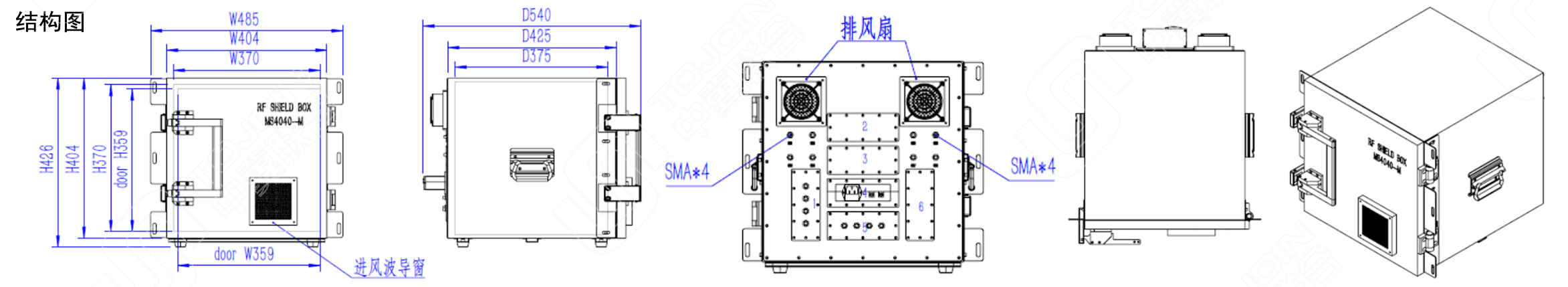

Exterior View (Unit: mm)
Test Report
| Material code： | MS4040-M-SZA26A0425443 | Instrument IP： | 192.168.1.21 |
| Production date： | 2026 | Test date： | 2026/01/04 |
| Tester： | XAP | Test result： | PASS |
| Instrument information： | Agilent Technologies,E5071C,MY46525444,B.13.10 | ||
Data sheet：
| Frequency(MHZ) | Front(dB) | Back(dB) |

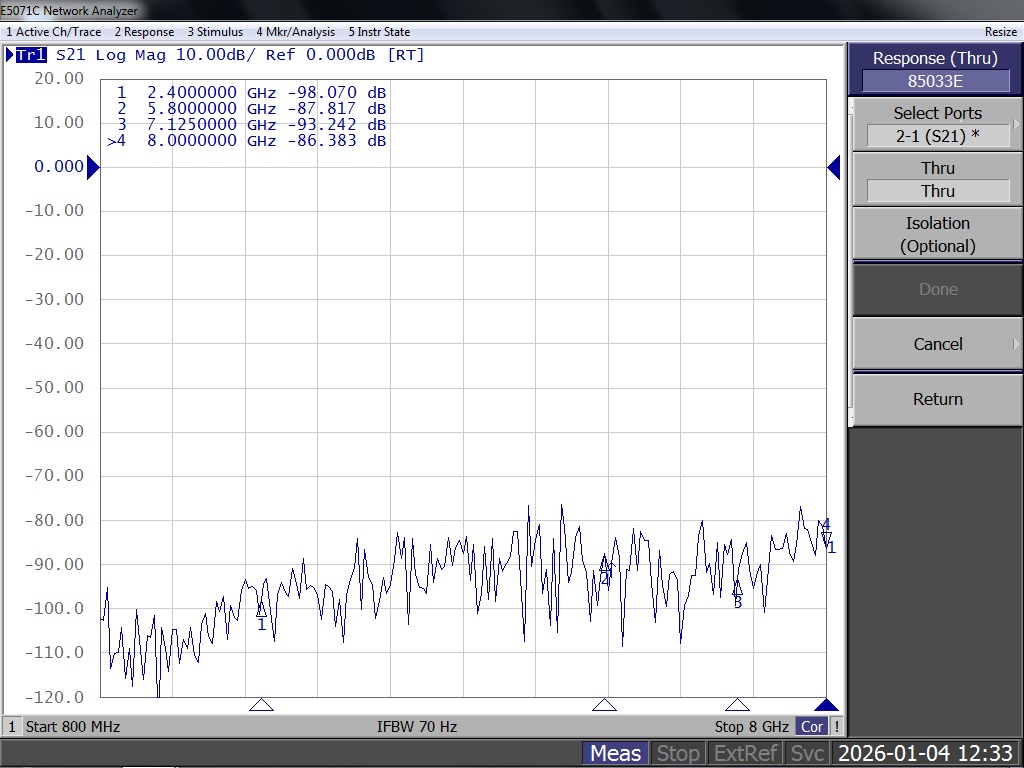

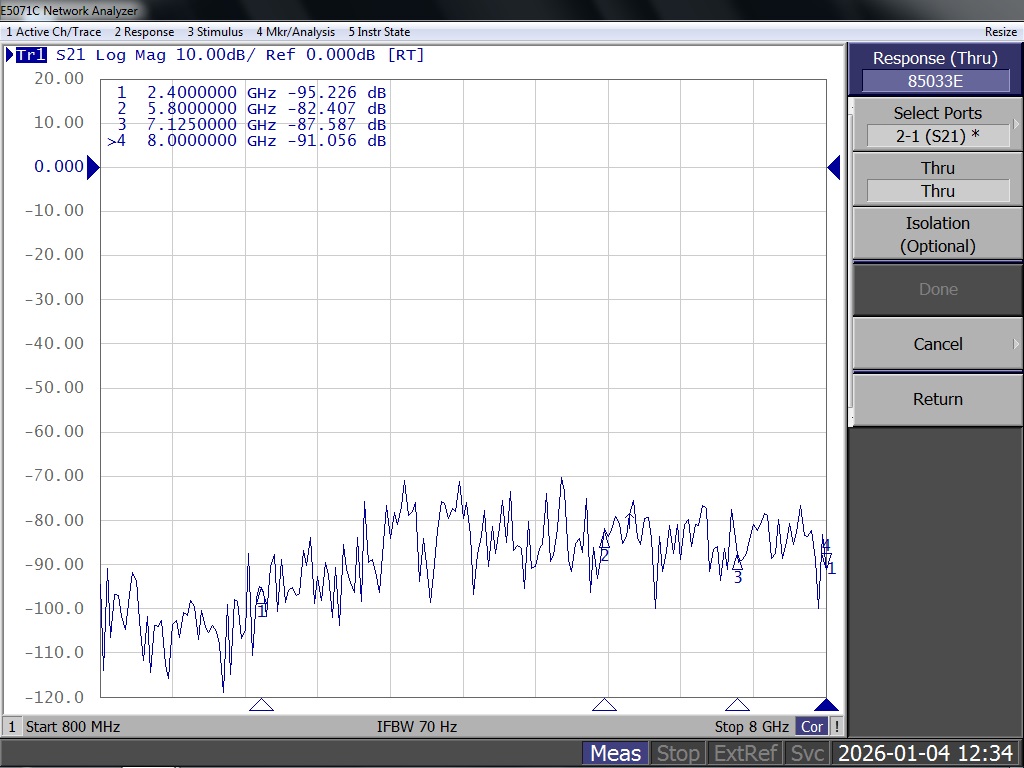

| 2400 | -98.07 | -95.23 |
| 5800 | -87.82 | -82.41 |
| 7125 | -93.24 | -87.59 |
| 8000 | -86.38 | -91.06 |
| Front | Back |
|
|
