Manual Shielding Chamber / Working Dimensions: 600 (W) × 600 (D) × 600 (H) / 0.8–8 GHz / Shielding Effectiveness: ≥80 dB

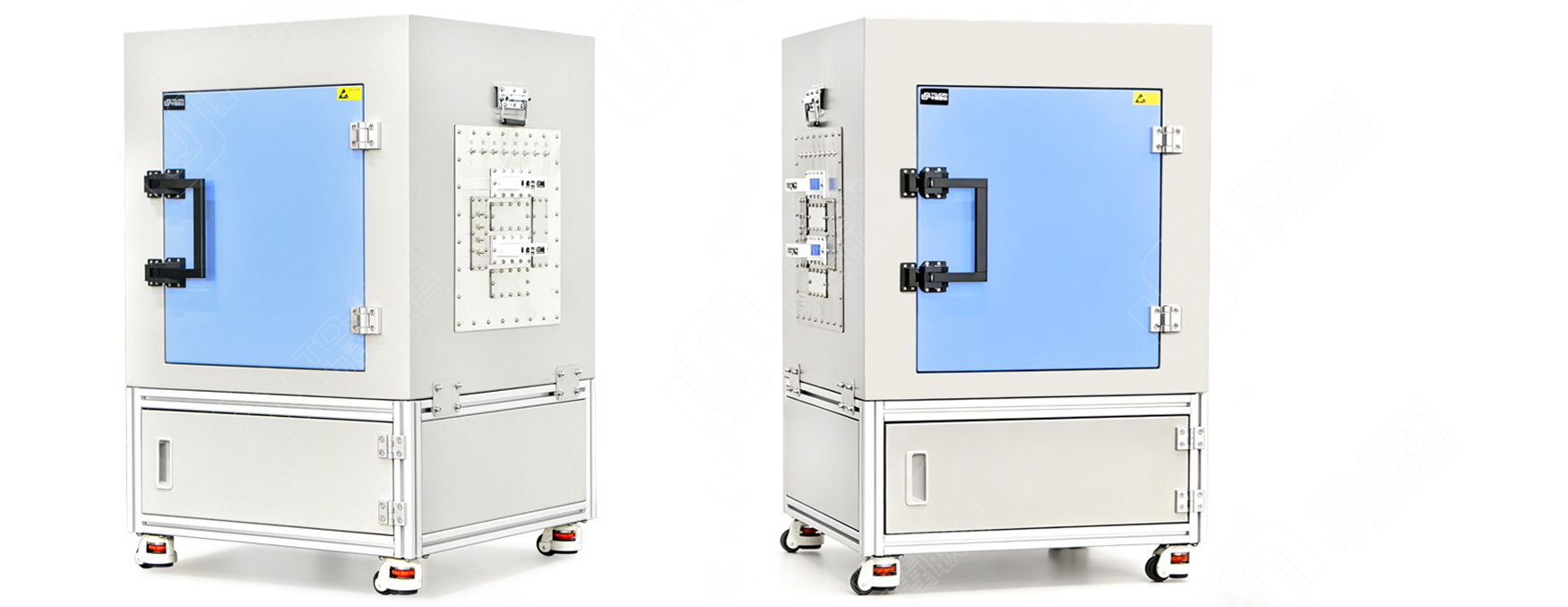

Product Appearance
PIN:60.00.001.1410
Generic images are for illustrative purposes only.
Product Overview
The MS6060-C is an economical manual shielding enclosure designed to serve as a testing solution platform for modules and end devices in fields such as smartphones, Wi-Fi, Bluetooth, smart grid equipment, automotive electronics, and smart home systems.
This shielding enclosure is manufactured through more than a dozen rigorous processes, including laser CNC cutting of high-quality sheet metal from leading manufacturers, sheet metal forming, electroplating, electrostatic spray painting and baking, assembly and debugging, aging, and testing and inspection. It offers the advantages of high shielding effectiveness, a reliable structure, and stable performance.
Regarding filter selection, we can configure corresponding I/O data interfaces and RF interfaces based on the customer’s specific needs, or develop custom communication interfaces upon request.
Technical Parameter
| Working Frequency (GHz) | 0.8–8 GHz |
| Enclosure Isolation (dB) | ≥80 (Minor, reasonable deviations may occur when used with different filters.) |
| Interface Type | DB9, USB 2.0, USB 3.0, SMA, RJ45, BNC, DC, and AC ports can be combined as needed based on actual usage; other ports require customization. |
| Number of Filters (pcs) | 12 pcs |
| Control Method | Manual |
| Safety Protection Measures | / |
| Working Temperature (°C) | 23°C ± 5°C |
| Working Dimensions (mm) | 600 (W) × 600 (D) × 600 (H) |
| Overall Dimensions (mm) | 810 (W) × 742 (D) × 1100 (H) |
| Weight (kg) | Approx. 100 |
| Material | SUS201 |
| Appearance Color | Cabinet: Computer Gray; Door: Light Blue (colors can be selected according to customer requirements) |
Big Deal
The working dimensions of 600 (W) × 600 (D) × 600 (H) meet the testing requirements for most smart mobile devices on the market.
It utilizes a new type of signal-absorbing material to minimize internal reflection and reflection signals within the chamber, thereby reducing the likelihood of false readings caused by environmental factors.
The comprehensive range of communication interfaces makes setting up your testing platform effortless, convenient, and fast.
Applications
Developing modules for smartphones, Wi-Fi, Bluetooth, smart grid devices, automotive electronics, smart home systems, and other fields.
End-device testing solution platform.

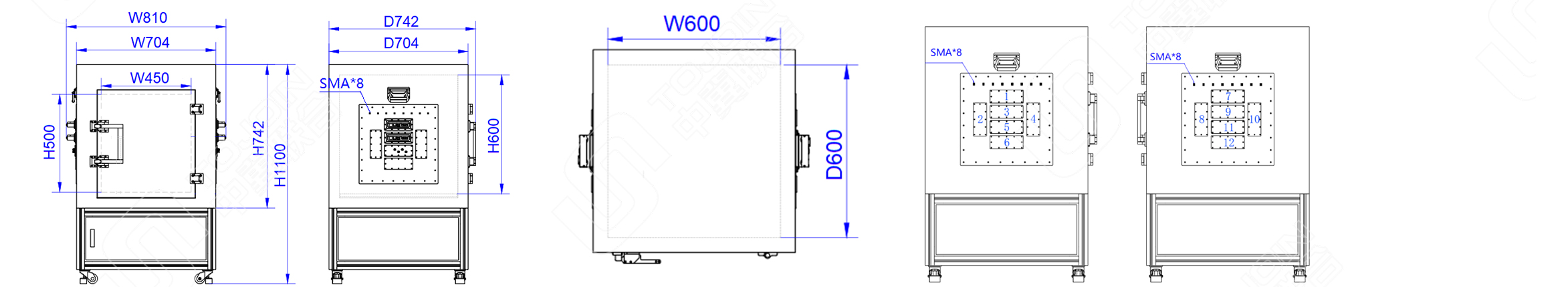

Exterior View (Unit: mm)
Test Report
| Material code： | MS6060-C-SZA25I0324478 | Instrument IP： | 192.168.1.21 |
| Production date： | 2025 | Test date： | 2025/09/05 |
| Tester： | DXS | Test result： | PASS |
| Instrument information： | Agilent Technologies,E5071C,MY46525444,B.13.10 | ||

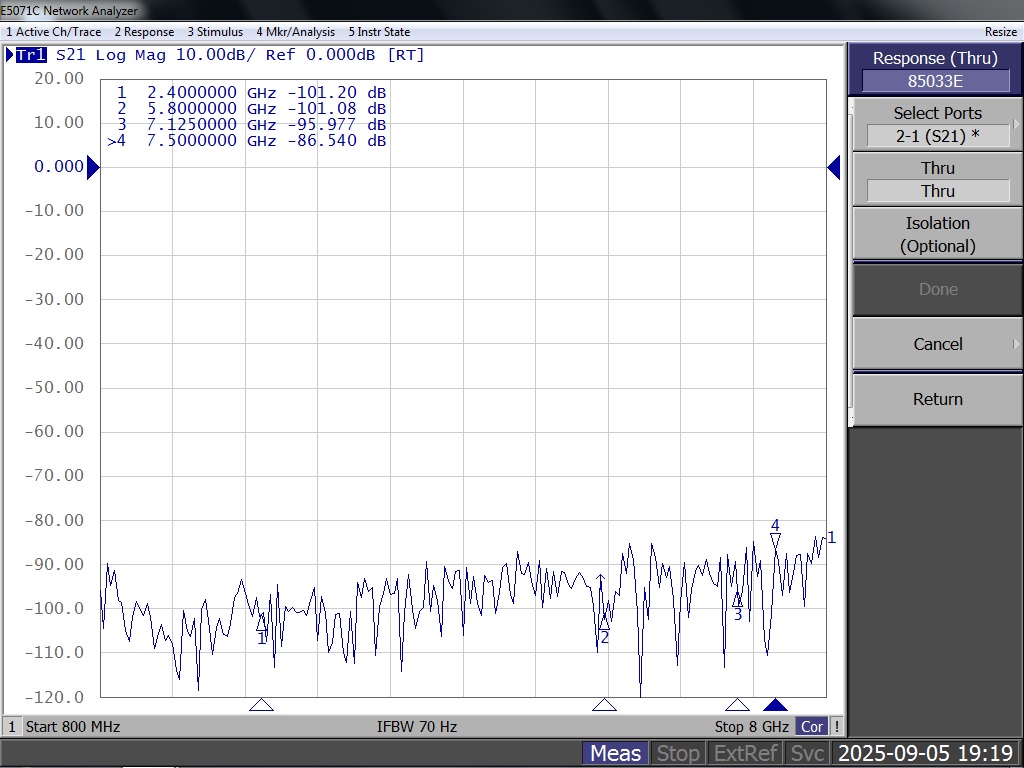

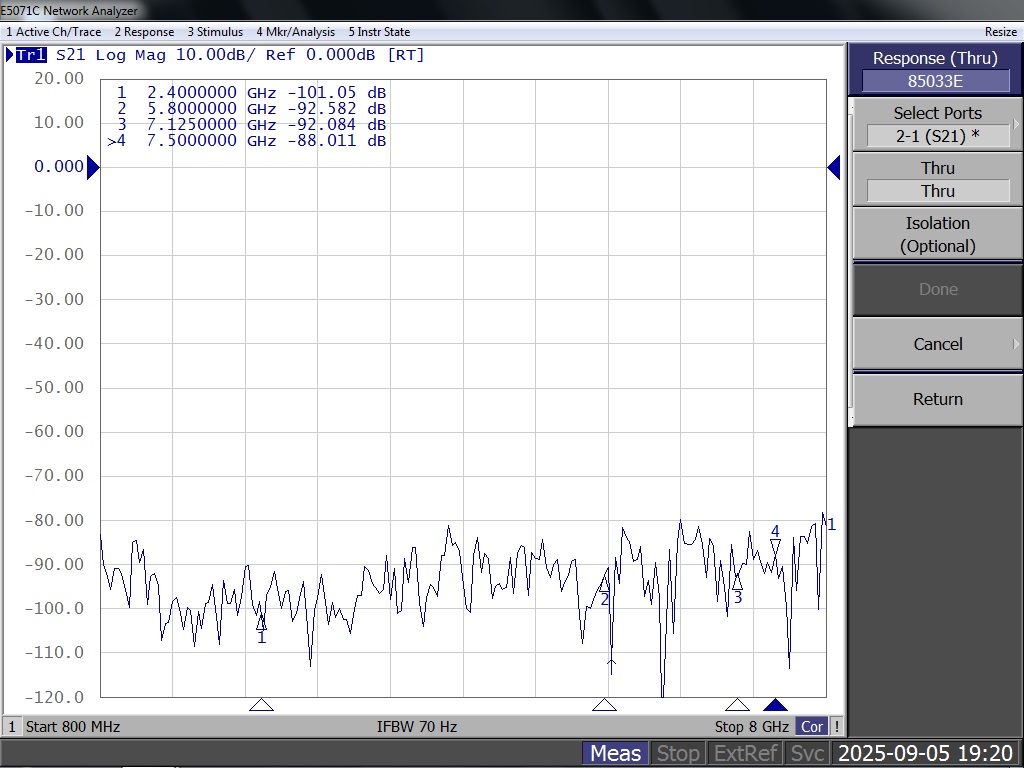

Data sheet：
| Frequency(MHZ) | Front(dB) | Back(dB) |
| 2400 | -101.20 | -101.05 |
| 5800 | -101.25 | -92.5 |
| 7125 | -95.98 | -92.08 |
| 7500 | -86.54 | -88.01 |
| Front | Back |
 |  |
*The information in this document is intended to assist users in product selection. Users are advised to conduct tests to determine whether the product meets the requirements of the corresponding application scenarios. Product specifications and descriptions herein are subject to change without prior notice.
