MS80180

MS80180


detailed information

Product Name   Manual shield box

Product Model   MS80180/800(W)*850(D)*1800(H)

Product Number   60.00.001.1150

Product Description

    MS80180 is an economical manual cabinet shielding box, suitable for building modules, terminal testing solution platform for smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, smart home and other fields. The shield box is made of high-quality large-scale plate laser CNC cutting, sheet metal molding, electroplating, electrostatic spraying paint, assembly and commissioning, aging, testing and other more than a dozen strict process, with high shielding effectiveness, reliable structure, stable performance The advantages. Filter selection can be based on the actual needs of the customer, configure the appropriate I / O data interface, RF interface, or finalize the development of non-standard communication interface.

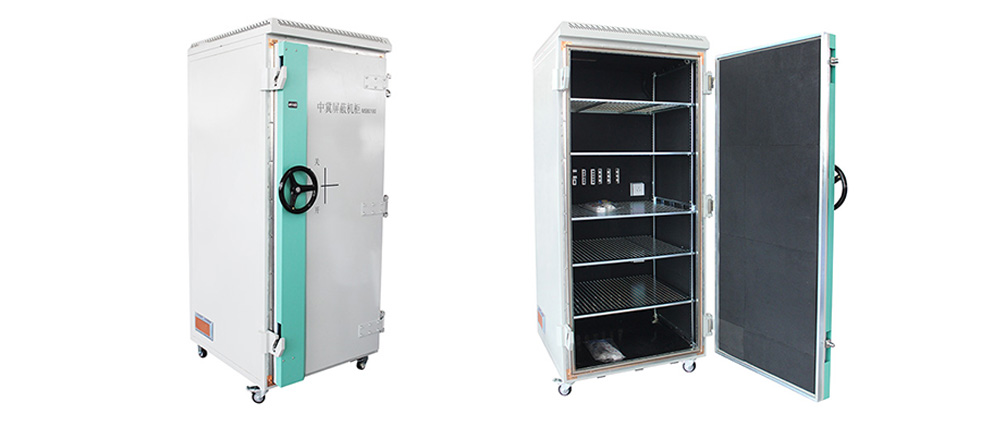

Product Appearance


Product Features

◆ The 800(W)*850(D)*1800(H) working size meets most of the testing requirements for smart mobile terminals on the market.
◆ The use of a new type of wave-absorbing material minimizes the reflected signal in the box and reduces the chance of false detection due to the environment.
◆ The complete communication interface design allows you to build a test platform that is easier and faster.

Technical Specifications

Working frequency(GHz)

0.8~3

Shielding effect

≥65dB@2.4GHz

Interface type

VGA、DB9、DB25、USB2.0、USB3.0、SMA、RJ45、BNC、RCA、DC、AC、optical fiber、HDMI、AV3.5, etc. (Could be customized and optional)

Numbers of filters

12 pcs

Control method

Manually

Working temperature(°C)

Normal temperature work

Internal dimensions(mm)

800(W)*850(D)*1800(H)

Appearance dimension(mm)

960(W)*1120(D)*2090(H)

Weight(kg)

About 200

Appearance of color

Computer gray (can be selected according to customer requirements)

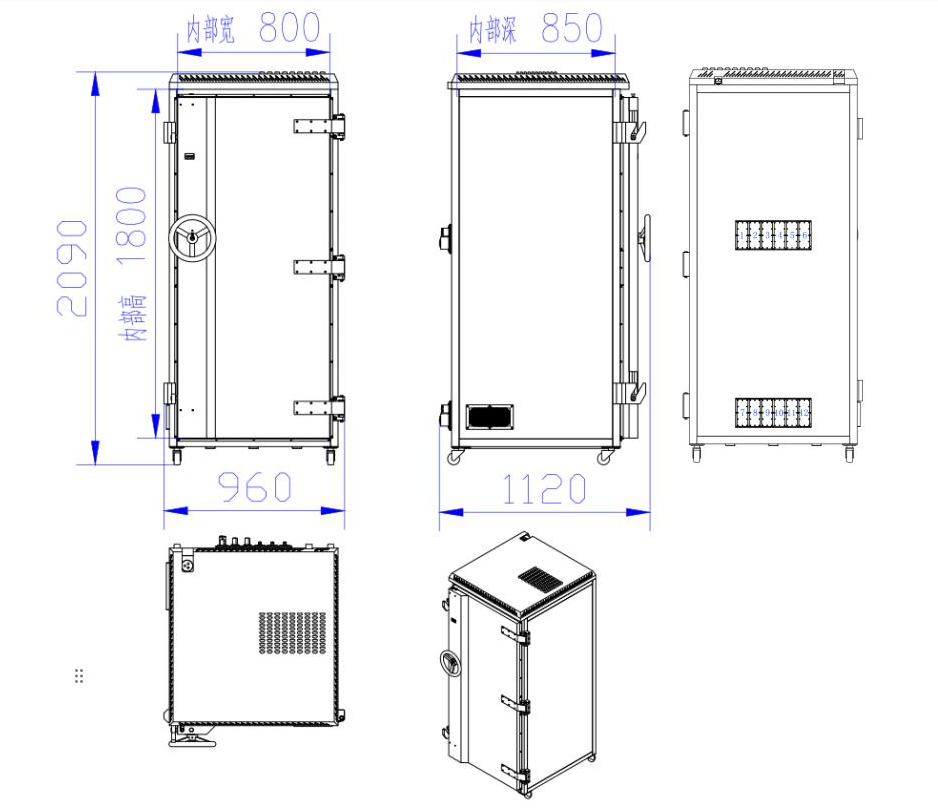

Appearance structure


Note: The filter can be combined and selected according to customer needs.
