Product Name   Shielded room

Product Model   P1250/1250(W)*2100(D)*1750(H)

Product Number   60.00.001.1190

Product Description

    P1250 is an economical small-sized shielded room suitable for building modules and terminal test solution platforms for smart phones, WI-FI, Bluetooth, smart grid devices, automotive electronics, drones, and smart homes. The shielded room is made of high-quality large-scale plate laser CNC cutting, sheet metal molding, electroplating, electrostatic spraying paint, assembly and commissioning, aging, testing and other more than a dozen strict process, with high shielding effectiveness, reliable structure, stable performance The advantages. Filter selection can be based on the actual needs of the customer, configure the appropriate I / O data interface, RF interface, or finalize the development of non-standard communication interface.

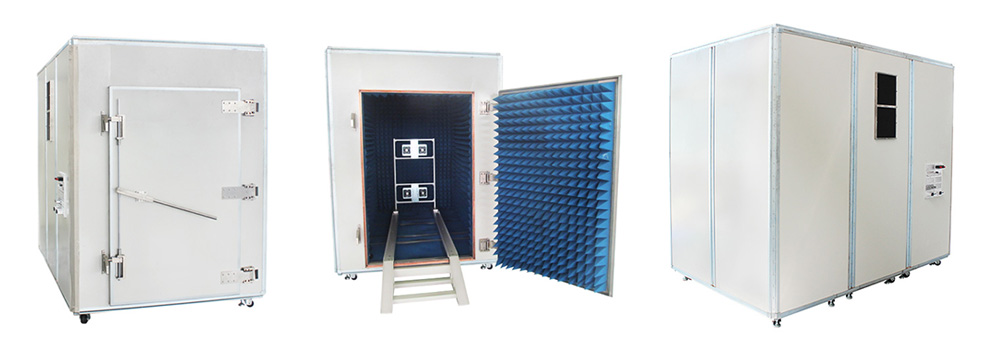

Product Appearance


Product Features

◆ The large working size meets most of the testing requirements of smart mobile terminals on the market.
◆ The overall splicing structure can be disassembled and reinstalled if necessary.
◆ Casters for easy movement to different sites for testing.
◆ Ventilation equipment and temperature monitoring warning device.
◆ The use of a new type of wave-absorbing material minimizes the reflected signal in the box and reduces the chance of false detection due to the environment.
◆ The complete communication interface design allows you to build a test platform that is easier and faster.

Technical Specifications

Working frequency(GHz)

0.8~4

Shielding effect

≥70dB@2.4GHz

Interface type

VGA、DB9、DB25、USB2.0、USB3.0、SMA、RJ45、BNC、RCA、DC、AC、optical fiber、HDMI、AV3.5, etc. (Could be customized and optional)

Numbers of filters

8 pcs

Control method

Manually

Working temperature(°C)

Normal temperature work

Internal dimensions(mm)

1250(W)*2100(D)*1750(H)

Appearance dimension(mm)

1864(W)*3110(D)*2310(H)

Weight(kg)

About 1000

Appearance of color

Beige (according to customer requirements)

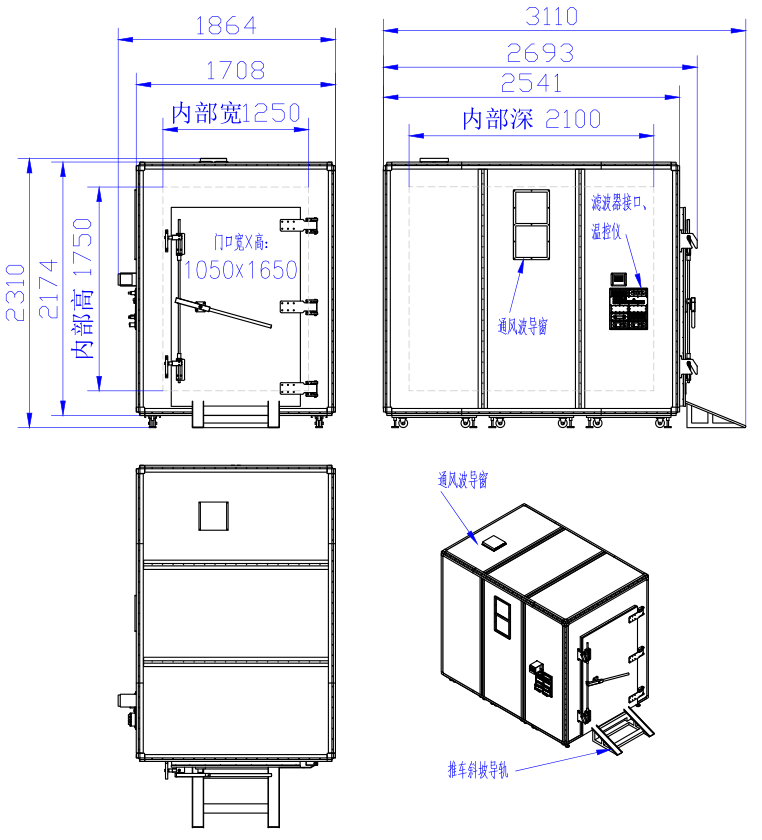

Appearance structure

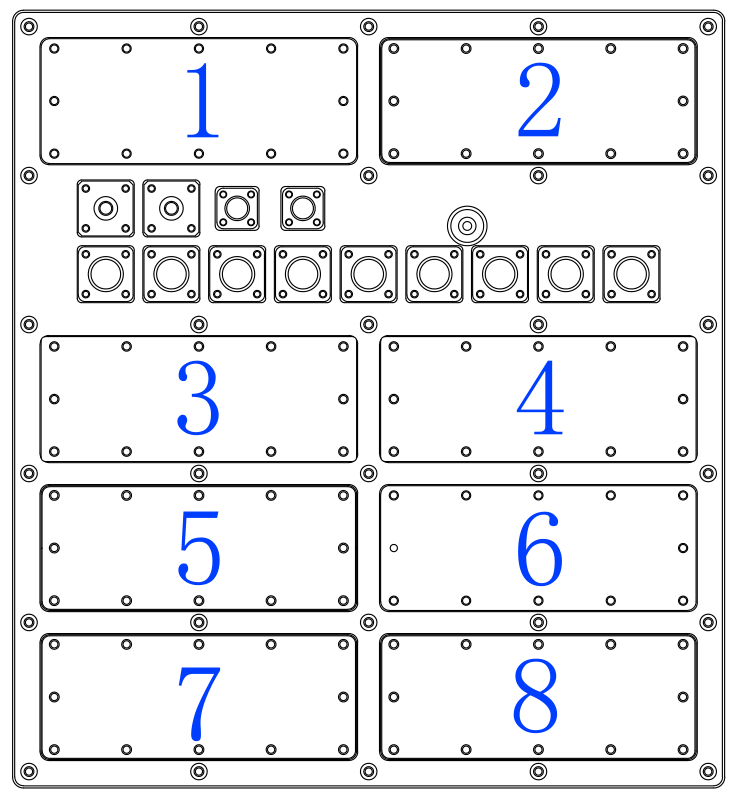

Note: The filter can be combined and selected according to customer needs.
