SMA-JR-3（DC-12GHz）
SMA-JR-3（DC-12GHz）
detailed information

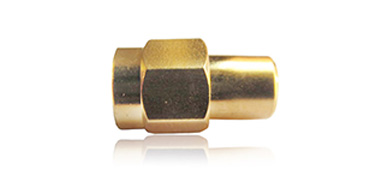

Product Appearance
Product Model SMA-JR-3（DC-12GHz）
Product Name Terminal load
Product Number 60.06.080.0013
Technical Specifications
Working frequency（GHz） | DC-12 |
Average power（W） | 1 |
Standing wave ratio | ≤1.3 |
Resistance(Ω) | 50 |
Interface type | SMA male |
Working temperature（℃） | -10 - +70 |
Appearance dimension | Φ9*15mm |
Standards compliant | MIL-C-39012 |

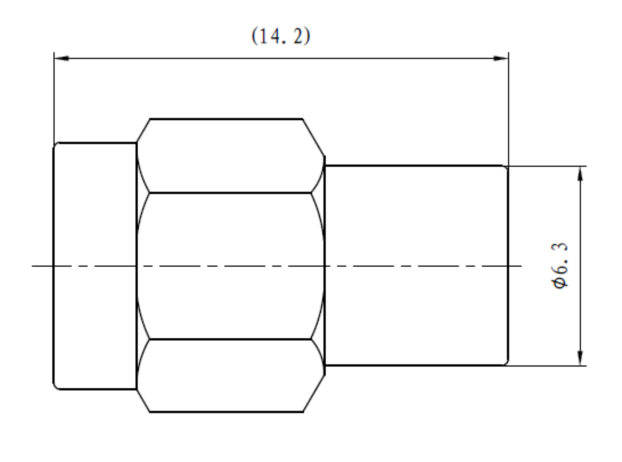

Appearance structure
