RF Switch System RFS061A
RF Switch System RFS061A
Product Name：1 to 6 Coaxial Switch System
Product Model ：RFS061A
Product Number：60.01.003.0082
Product Description
One to six coaxial switch system features high isolation, low VSWR, long service life, and short switching time, enabling it to freely switch 6 RF channels. The PC-side serial control channel is connected and disconnected with intelligent and automated production test trends, facilitating efficient operation and program extension.

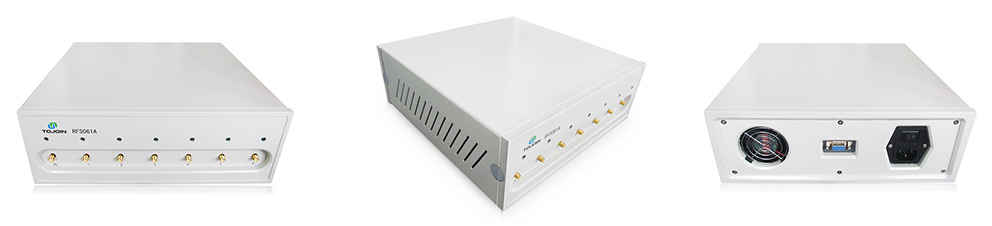

Product Appearance
Technical Specifications
Working Frequency(GHz) | DC-8 |
Number of Channels | 6 |
Isolation | ＞80dB |
VSWR | ≤1.3 |
Line Loss | Difference of each channel <0.3dB, long-term operation, multiple line loss stability |
Switch Lifetime | 10 million times |
Switch Time | ＜1s |
Impedance | 50Ω |
Input/Output | SMA |
Powered Supply（V） | 220V AC |
Working Temperature（°C） | -30～+85 |
Dimension（mm） | 290mm*290mm*100mm |
Power indicator | Yes (Power is green) |
Status indicator | Yes (Green is always on: this road strobe) |
Serial port control | Yes (Control according to the specified serial port command) |
Serial control instructions

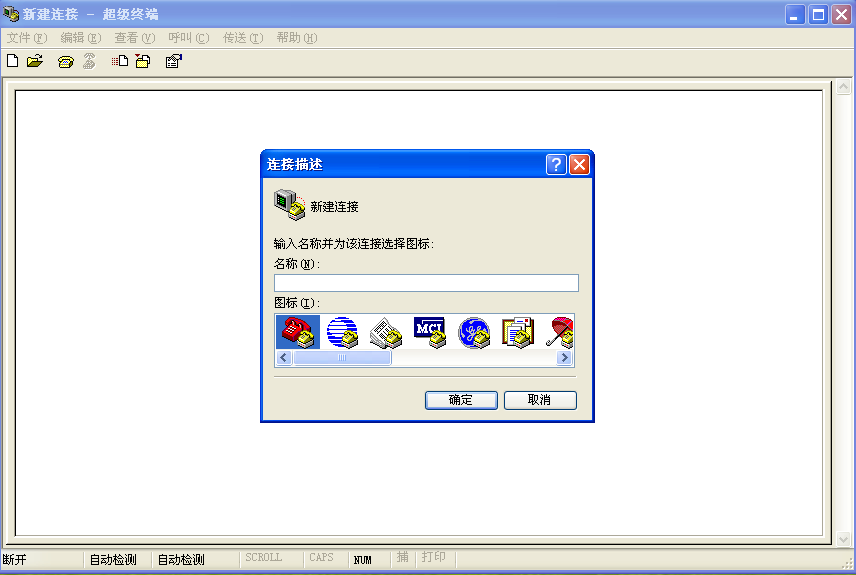

1. Open HyperTerminal, create a new connection, click OK after naming;

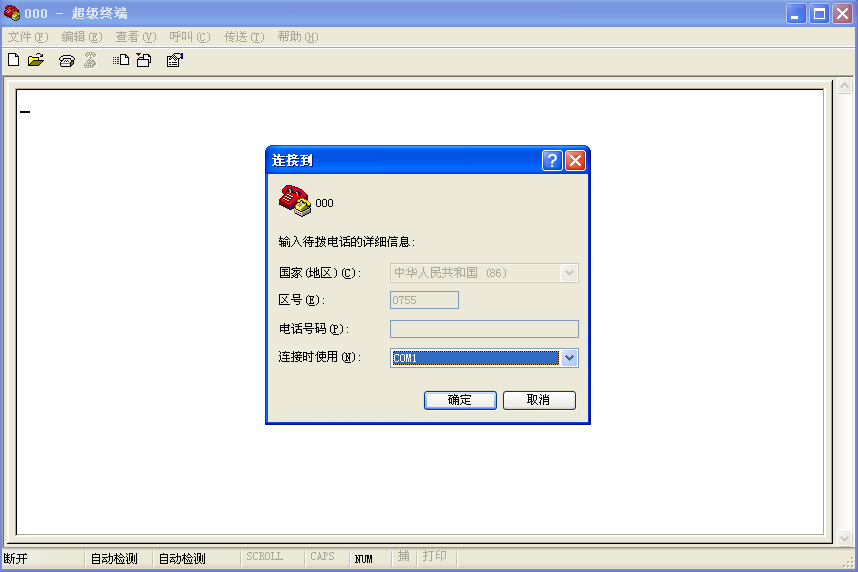

2. Select the serial port to which RFS061A is connected，then click OK.

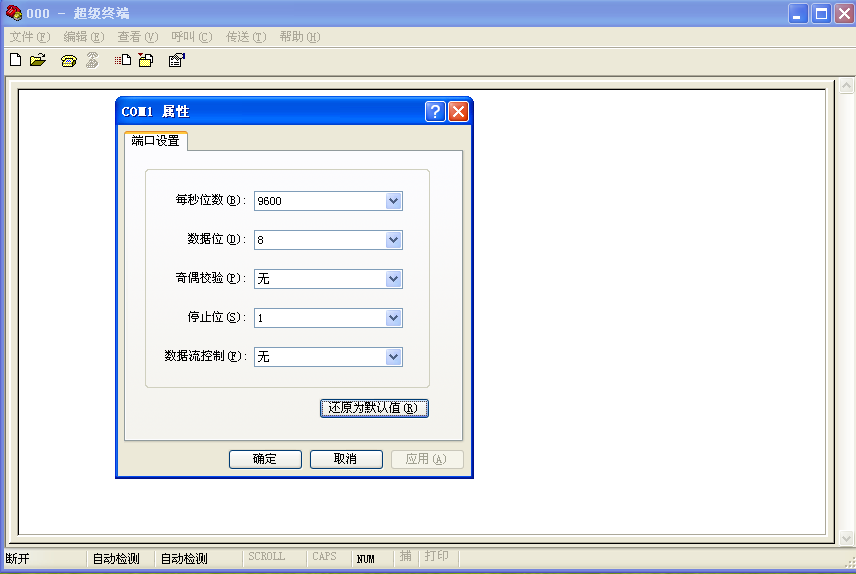

3. To configure the connection properties, just click on "restore to default", click OK;
Replace the baud rate from 9600 to 115200.
4. Through the instruction can directly select a specified output and input connections.
For example: To connect output port 2 to the input port, simply press the “2” key for the serial input command. Upon completion, the system will respond with “The present channel: 2”.
5.Network Communication
（For more details, please leave a message.）
