Introduction of the solution

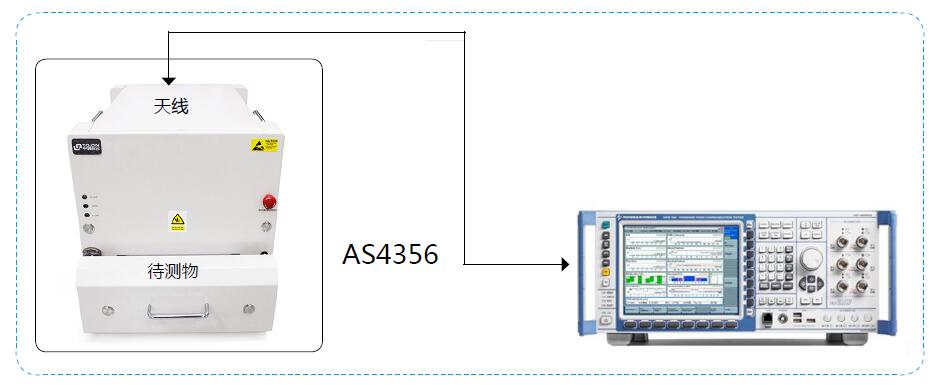

Mobile phone test program


detailed information

Program use:

        It is mainly used to test the receiver sensitivity and RF conduction power parameters of the test to be tested. It is suitable for the mobile phone, WIFI, PDA, Bluetooth, DAB/DMB, LTE, GNSS and other mobile terminals.




model

No

Switching mode

working frequency(GHz)

Shielding effect(dB)

Number of filter

Product Size(mm)

weight

(kg)

AS4356

60.00.102.1150

Drawer type

0.8~6

≥75@2.4GHz/5.8GHz

0pcs

内尺寸:

310(W)*510(D)*380(H)

外观尺寸:

439(W)*696(D)*440(H)

35

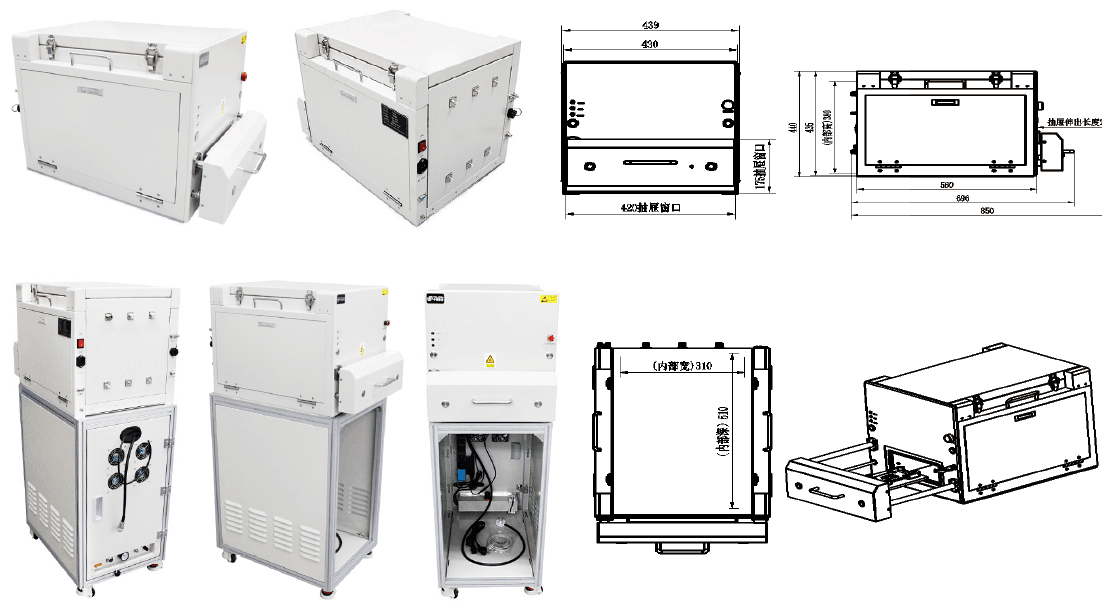

◢ AS4345 structure appearance
